Radiator Core Guard Black CB650R CBR650R

[MORIWAKI 01911-201R7-B0 Radiator Core Guard Black CB650R CBR650R Radiator Cover Protection Mesh Custom Parts MORIWAKI]
[Role of the Radiator Core Guard]

・The radiator, which cools the engine, has a core composed of very thin fins. If these fins are damaged by stones or tire debris kicked up by the front tire, they can bend, significantly reducing cooling efficiency.
・If the water line is damaged, it may make the vehicle inoperable. The core guard is a part designed to protect the core from such possibilities.

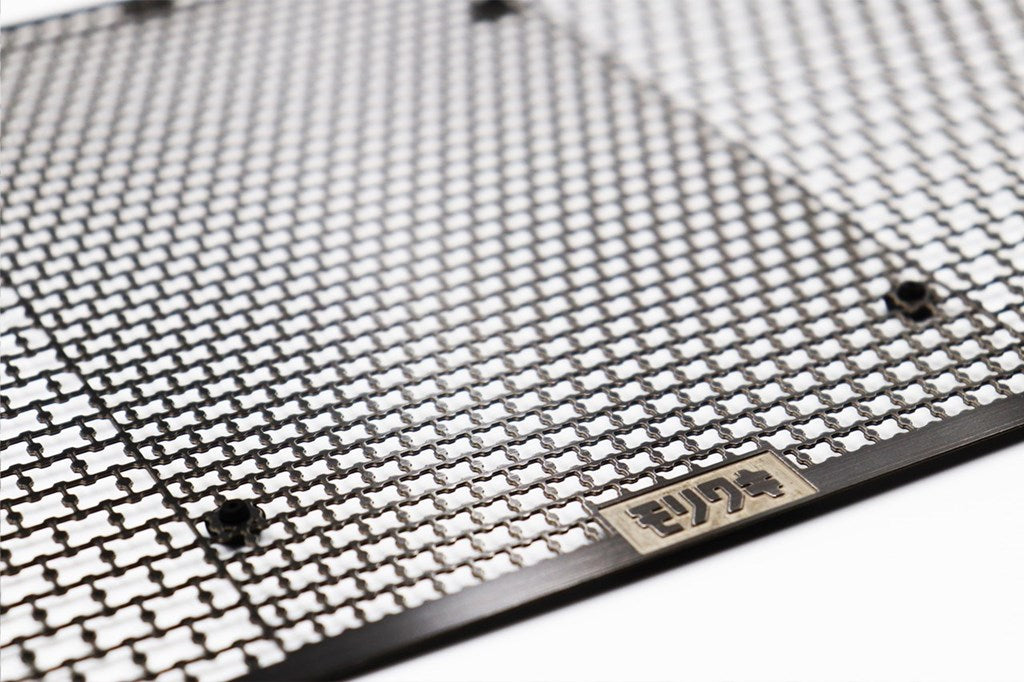

[Mesh Design Composed of "Sakura Pipe" Cross-Sections]

・The design of the core part, reminiscent of the framework that has driven Moriwaki's originality, uses a "Sakura Pipe" cross-section, resulting in a unique, simple, and elegant design.

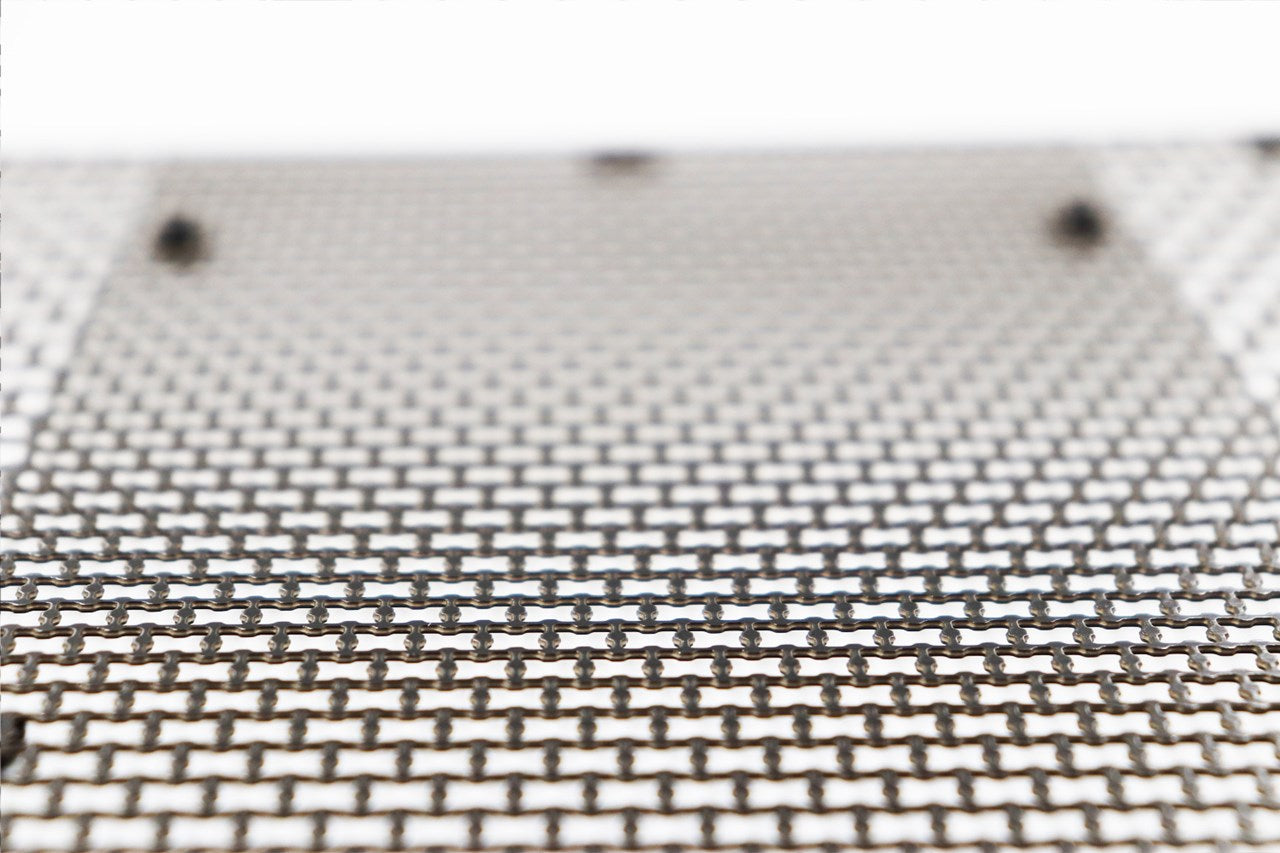

・The mesh pattern, which achieves both sufficient opening ratio and strength, has a finer pattern in the center, where damage from flying stones is high, and a coarser pattern on both sides, where cooling efficiency is important.
[The Appeal of Extremely Fine Stainless Steel, Available in Silver and Black]

・Stainless steel polish offers the natural luster of metal, giving your machine a beautiful shine.
・Stainless steel black provides a calm luster and a substantial texture.
・By offering all lineups in two colors, it is now possible to choose according to various custom styles.
[Reasons for Choosing Stainless Steel as the Material]

・To achieve the radiator's original performance, it is desirable to maximize the opening ratio, which requires the material to have inherent strength.
・Durability and corrosion resistance are essential because the part is located at the front of the vehicle and exposed to harsh conditions. The stainless steel material (SUS304) selected for this product meets these requirements.
Compatible models
HONDA
・CB650R (2019-)
・CBR650R (2019-)
Compatible model type
・2BL-RH03
Specifications
・Color: Black
・Material: Stainless steel
・Weight: 235g
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
