Rear Set Kit Racing GB350/GB350S 2021-2022/ 2023- Silver Anodized 1 Set

【MORIWAKI 05060-101U8-00 Rear Set Kit Racing GB350/GB350S 2021-2022/ 2023- Silver Alumite 1 Set Motorcycle Silver Custom Race Only】
■Product Description

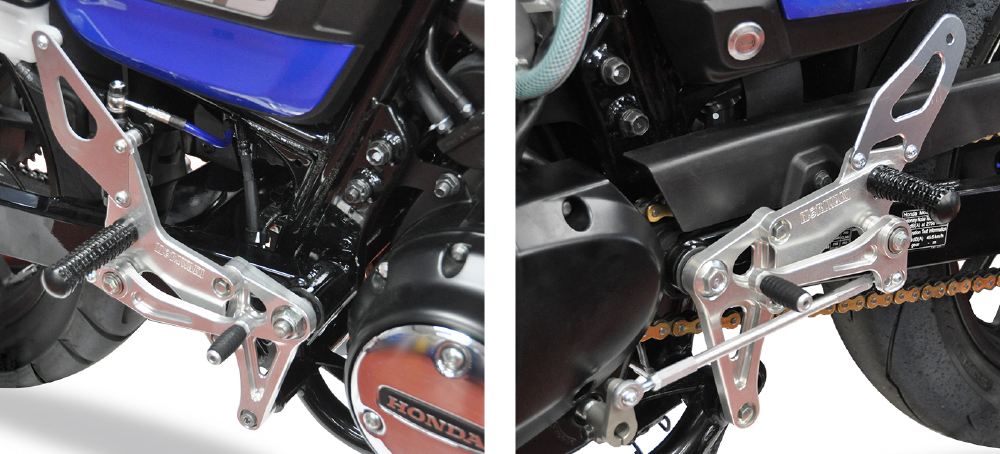

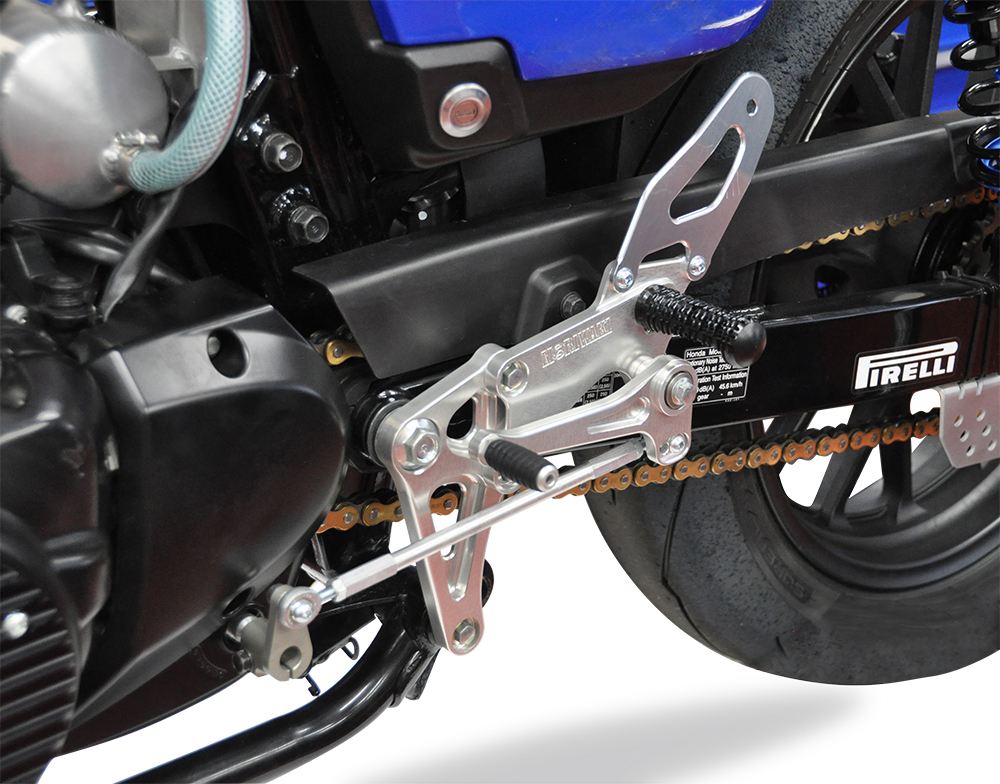

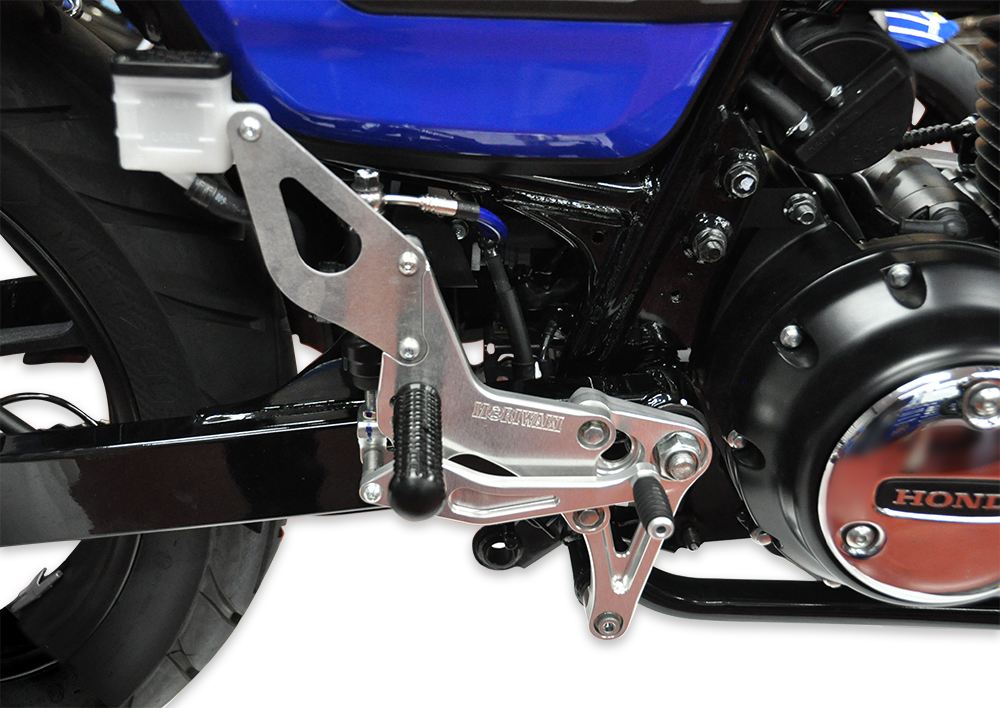

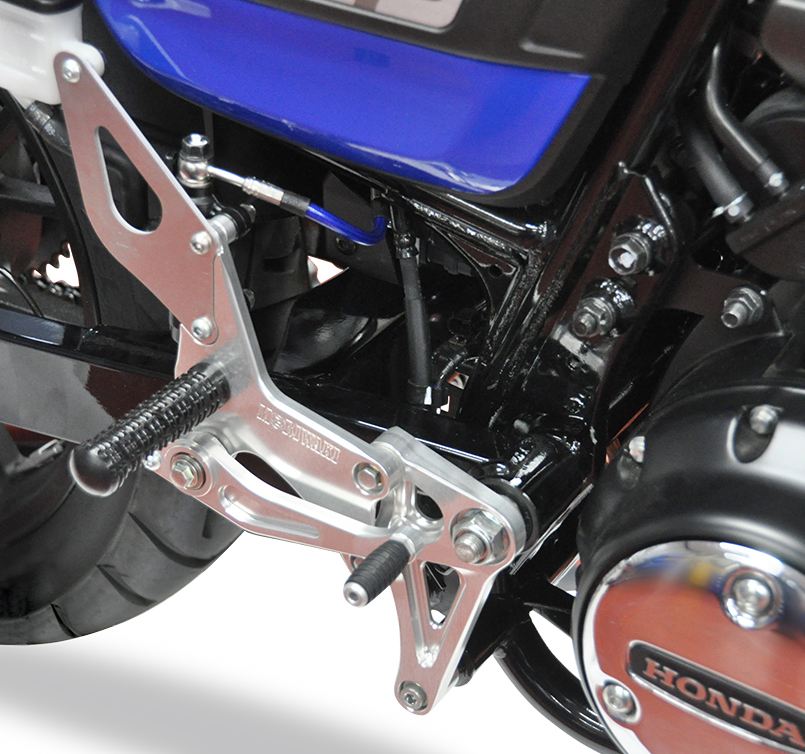

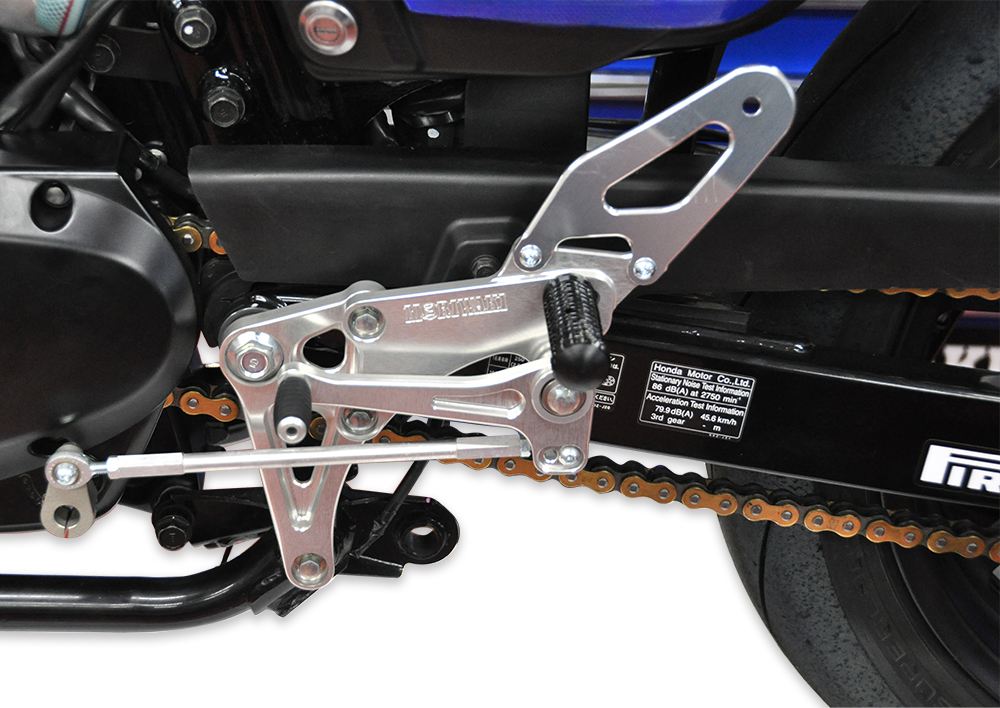

●Racing rear set kit designed for "iron horses"
●Compared to the STD steps, the step position is significantly moved back & up, allowing for full-scale circuit riding.
●Compared to the standard cast iron step holder, the holder, step plate, and heel guard are machined from aluminum blocks, achieving high rigidity and a high-quality finish while being lightweight.
●The holder is hollowed out in two places (top and bottom), and ribs are processed on its outer periphery, combining weight reduction and increased rigidity.
●Advanced cutting process is applied.
●Not only for race users, but also with the desire to "allow many people to enjoy sport riding,"
we have prepared a separately sold STAINLESS MESH BRAKE HOSE KIT Rr, which is compatible with ABS and brake light switches.
This allows for circuit riding in "licensed vehicle classes" including "Suzuka Circuit Ride On Club" and "Tsukuba Circuit 2-wheel Family Riding Class."
◆Position
Compared to STD Back – Up amount (mm)
Position:
124mm Up, 210mm Back
124mm Up, 220mm Back
135mm Up, 210mm Back
135mm Up, 220mm Back
◆Shift Pattern
Reverse Shift (1UP/4DOWN) *Normal Shift not possible (1DOWN/4UP)

〇Compatible Models
GB350, GB350S
〇Compatible Model Years
2021-22/23-
〇Compatible Model Codes
2BL-NC59
8BL-NC59

■Specifications
Color: Silver Alumite
Material: Aluminum
Other: Reverse shift specification
Quantity: 1 set

■Notes
The image is for illustration purposes only. It includes products with different sizes and colors.
Product design and specifications are subject to change without notice. Please understand.
*Cannot use genuine rear brake hose and stop lamp switch.
*Requires replacement with an optional rear brake hose KIT (Part number: 04331-101U8-00).
*Compatible muffler for this product / Moriwaki muffler: MORIWAKI MONSTER RACING (Part number: 01810-D21U3-00)
*Simultaneous installation with other company's products is unconfirmed and therefore not covered by warranty.
*Race-only product (not for public road use)
