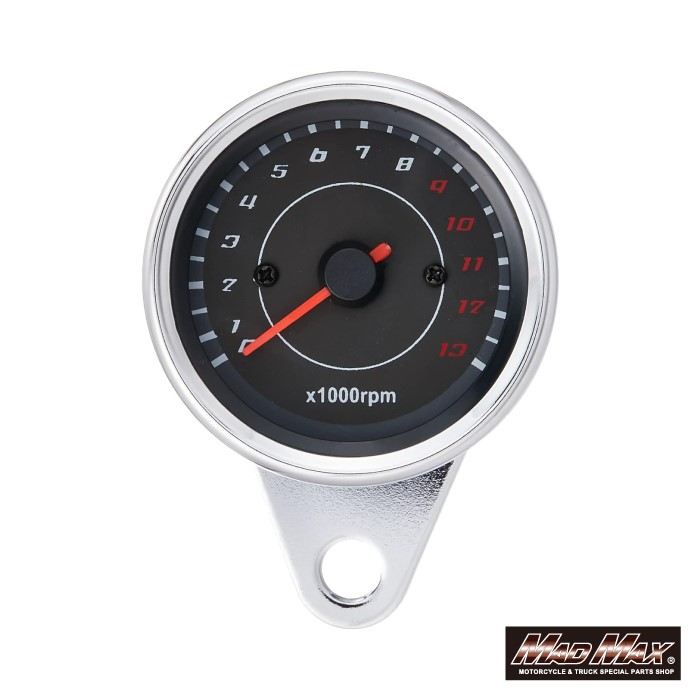

Electric LED Tachometer 13000 RPM, W66 x H55mm, Universal (12V Only)

【MADMAX MM07-0072-01 Electric LED Tachometer 13000 RPM, W66xH55mm, Universal (12V Only), Electrical Parts】
■Product Description
Compatible with a wide range of vehicles, from mopeds to large vehicles.
Picks up pulse signals from the ignition coil (or spark plug cable).
If your vehicle has a full-transistor & CDI ignition, it can be widely installed regardless of engine type or displacement.

■Compatible Vehicles
Universal (12V battery vehicles only)

■Specifications
Size: Approx. W66 x H55mm
Material: Stainless steel
Wiring for backlight: Red/Plus, Black/Ground
Meter wiring (electric signal): Yellow/Pulse signal, Black/Plus, Green/Ground
OR Yellow/Ground, Black/Plus, Green/Pulse signal
*Wiring may vary depending on the production lot.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
*Not compatible with AC type; limited to DC vehicles only.
*May not be compatible with some vehicles with weak pulses.
*Number of cylinders cannot be switched.
*Cannot be installed on vehicles with negative pulse ignition.
*For 12V battery vehicles only. Will not operate correctly on battery-less vehicles, 6V battery vehicles (including models converted to 12V electrical systems), or AC 12V vehicles. Also, even on 12V battery vehicles, if the battery is weak, it may not operate correctly, which could lead to malfunction. Please check beforehand before purchasing.
*Please note that colors may differ due to shooting environment.
*Installation may require modification.
*As this is an imported product, there may be minor scratches from transport.
*Parts should be installed by a qualified mechanic or someone with specialized knowledge.
*We are not responsible for any problems that occur during installation. Thank you for your understanding.
