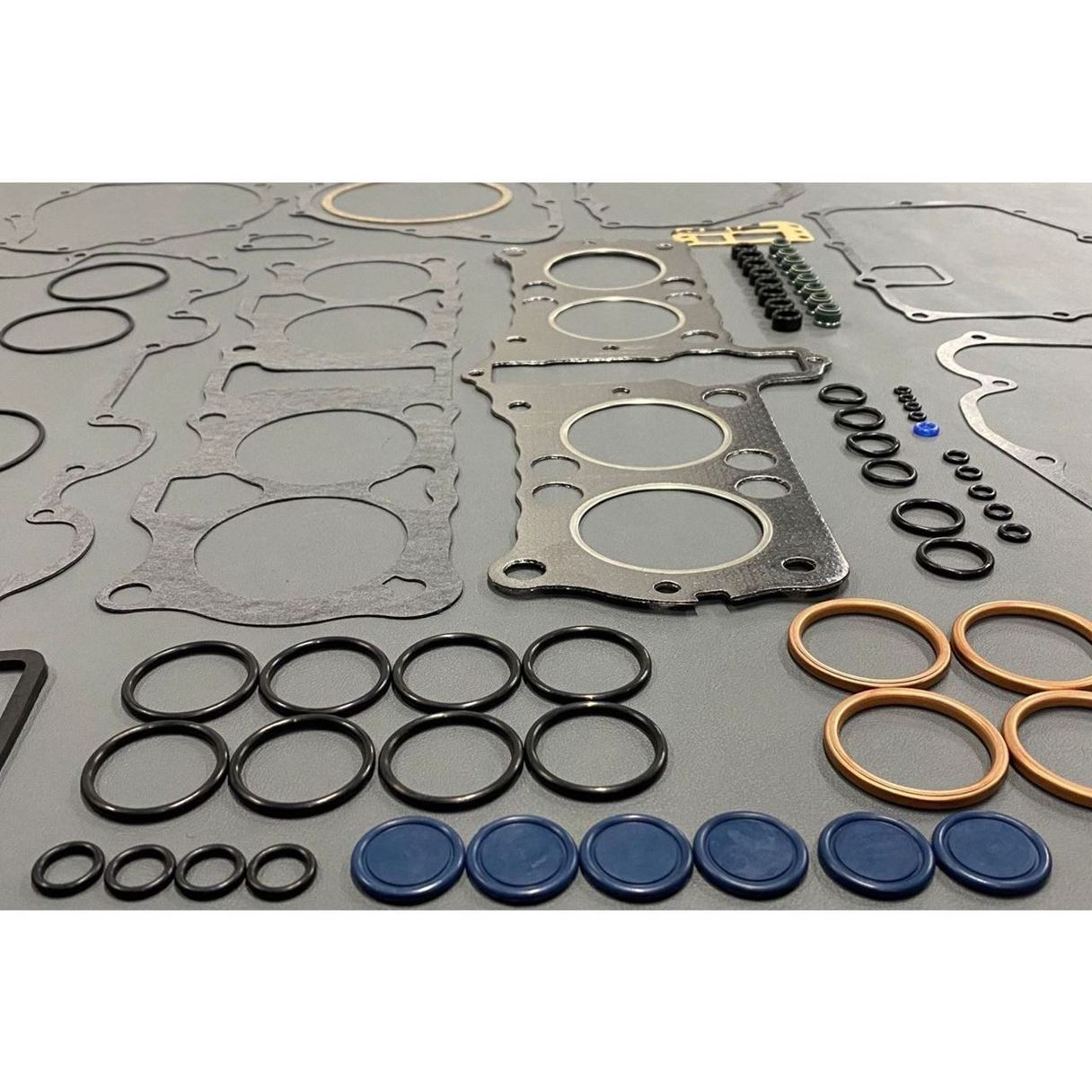

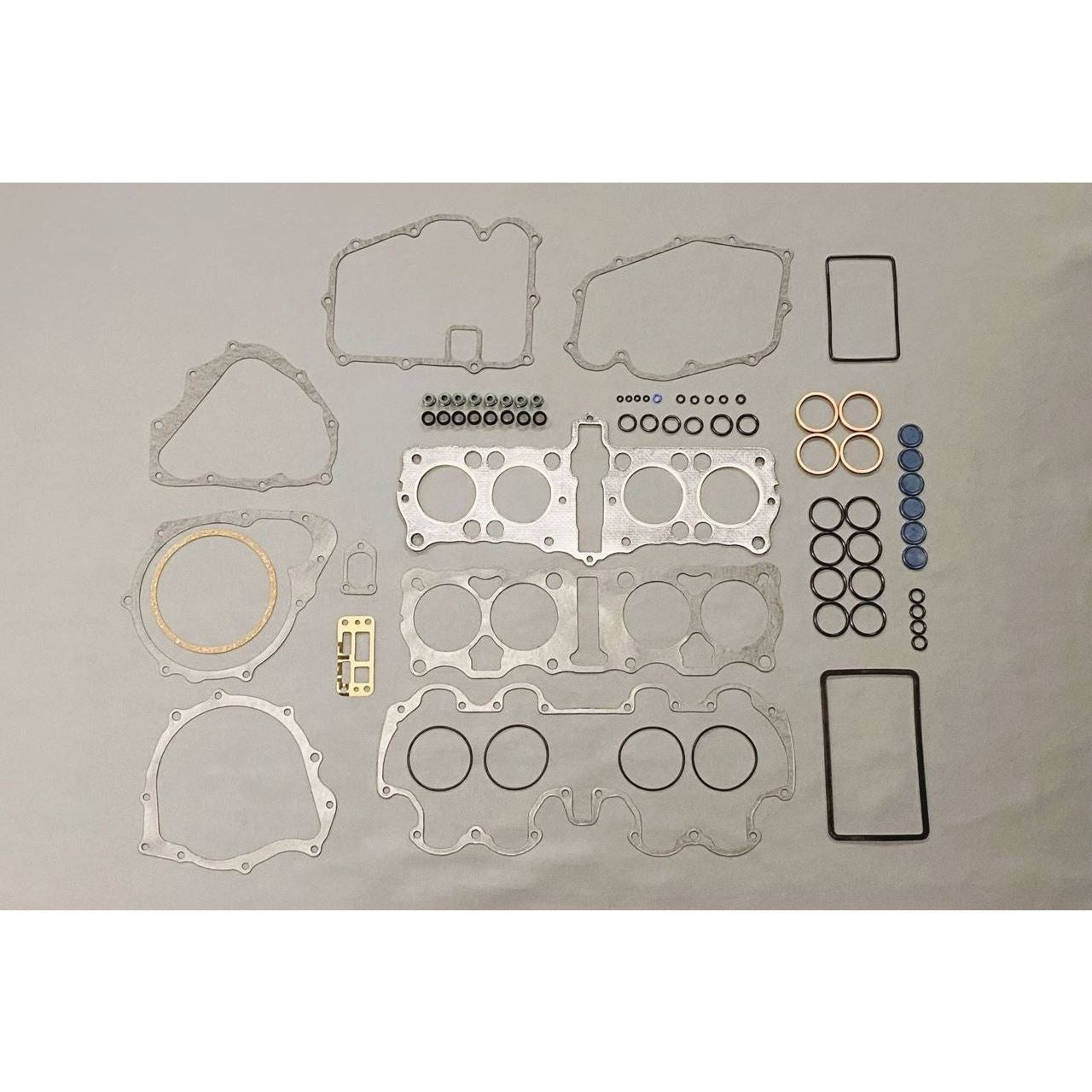

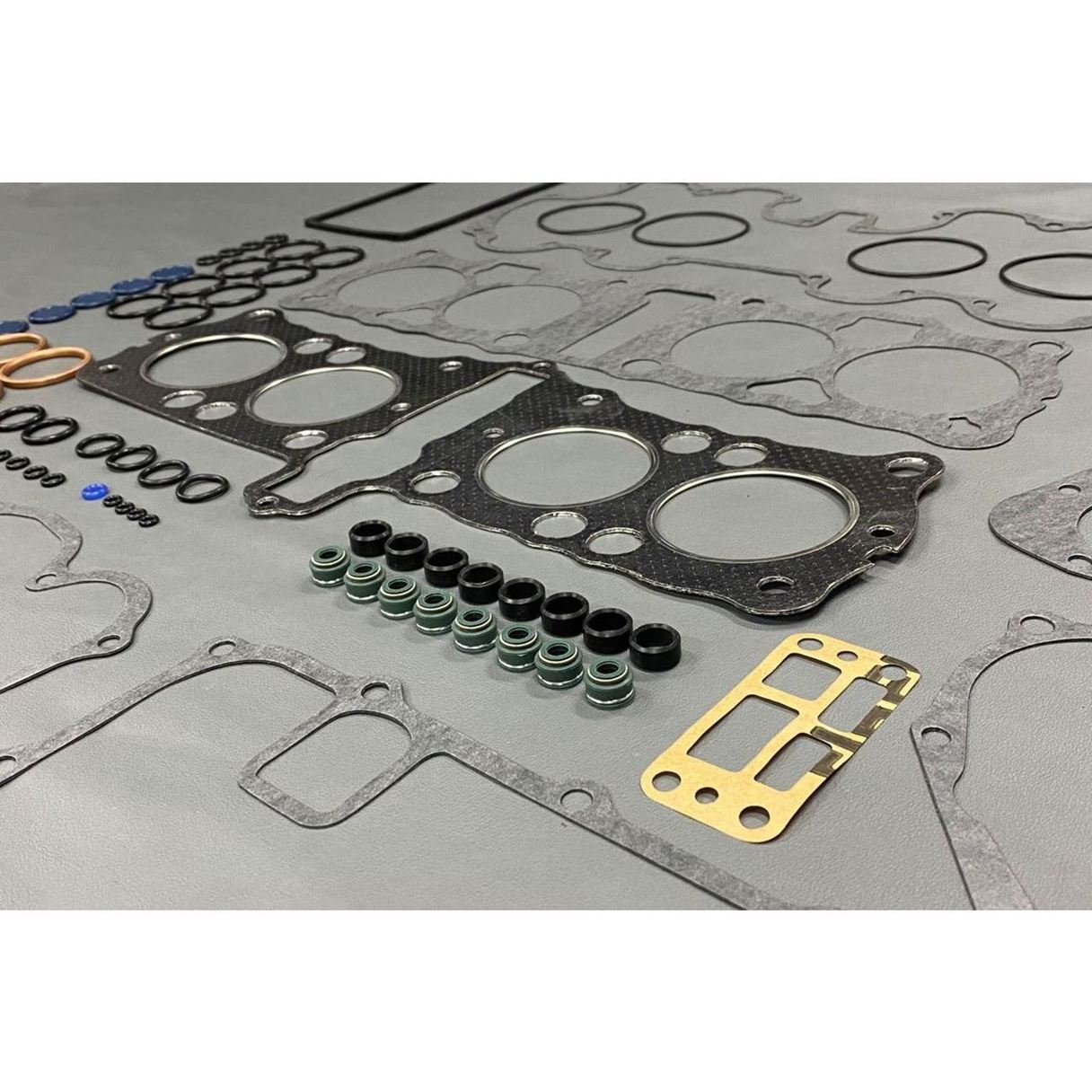

Engine Gasket Set CB750 K4-K8

【MRS MRS-1756-E065 Engine Gasket Set CB750 K4-K8 Motorcycle】
■Product Description
Some gaskets are asymmetrical.
Please pay attention to the orientation when installing.

【Applicable Genuine Part Numbers】
12251-300-306/12191-300-306/122209-MB9-003/18291-MM5-860/91304-286-000/91302-001-020/12115-300-000/91318-300-013/12329-300-020/91305-323-000/91307-035-000/91301-300-000/91301-426-010/91317-300-003/91302-377-000/91310-426-000/31282-300-020/14592-300-000/15135-300-010/12391-300-306/30372-300-300/11396-300-306/11397-300-306/11395-300-306/11398-300-030/11398-300-306

■Compatible Models
CB750 K4/K5/K6/K7/K8

■Specifications
Set Contents:
・12251-300-306 Cylinder Head Gasket 1PC
・12191-300-306 Cylinder Base Gasket 1PC
・12209-MB9-003 Valve Stem Seal 8PCS
・18291-MM5-860 Exhaust Pipe Gasket 4PCS
・91304-286-000 O-ring 61.8×2 4PCS
・91302-001-020 O-ring 30.8 8PCS
・12115-300-000 Cylinder Stud Gasket 8PCS
・91318-300-013 Sealing Rubber 6PCS
・12329-300-020 Breather Cover Gasket 1PC
・91305-323-000 O-ring 5.8×1.9 4PCS
・91307-035-000 Main Valve Cover O-ring 2PCS
・91301-300-000 O-ring 6×2.3 1PC
・91301-426-010 O-ring 5×2.4 1PC
・91317-300-003 O-ring 3.7×1.7 4PCS
・91302-377-000 O-ring 15×2.5 4PCS
・91310-426-000 O-ring 11×2.5 4PCS
・31282-300-020 Starter Motor Gasket 1PC
・14592-300-000 Tensioner Holder Gasket 1PC
・15135-300-010 Oil Pump Gasket 1PC
・12391-300-306 Cylinder Head Cover Gasket 1PC
・30372-300-300 Point Cover Gasket 1PC
・11396-300-306 Clutch Cover Gasket 1PC
・11397-300-306 Dynamo Cover Gasket 1PC
・11395-300-306 Mission Cover Gasket 1PC
・11398-300-030 Oil Pan Gasket 1PC

■Precautions
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please be aware.
*Installation of this product should be performed by a professional mechanic at a service shop (certified shop) with reliable knowledge and skills, based on the manufacturer's service manual for the vehicle.
*Recently, there have been cases where end-users attempt to install it themselves and fail to install it correctly, or fail to notice that nearby parts have been replaced with aftermarket parts, which prevents proper installation.
*There is a high possibility of injury or damage to other parts if the appropriate environment or tools are not available.
*We may not be able to answer inquiries regarding installation, as the condition of each vehicle varies (including the presence of modifications).
*Do not attempt to install it yourself; always have it installed by a professional shop.
