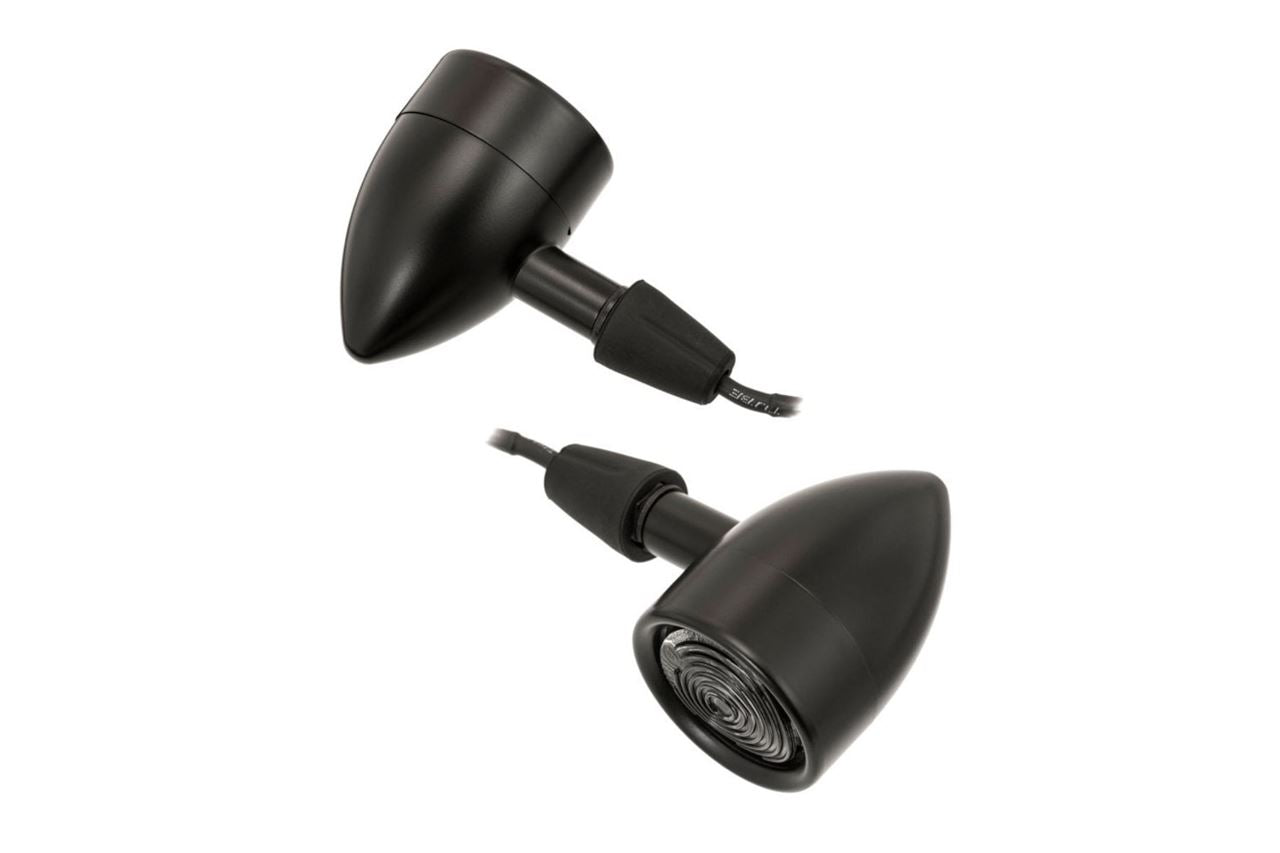

Tail Light Integrated LED Turn Signals, Icon Multi, Black, 2 pieces, M8, Universal

【Motone MFX002 Tail Light Integrated LED Turn Signals Icon Multi Black 2pcs M8 Universal Motorcycle Parts Turn Signals Turn Signal Bulbs Electrical System 】
■Product Description

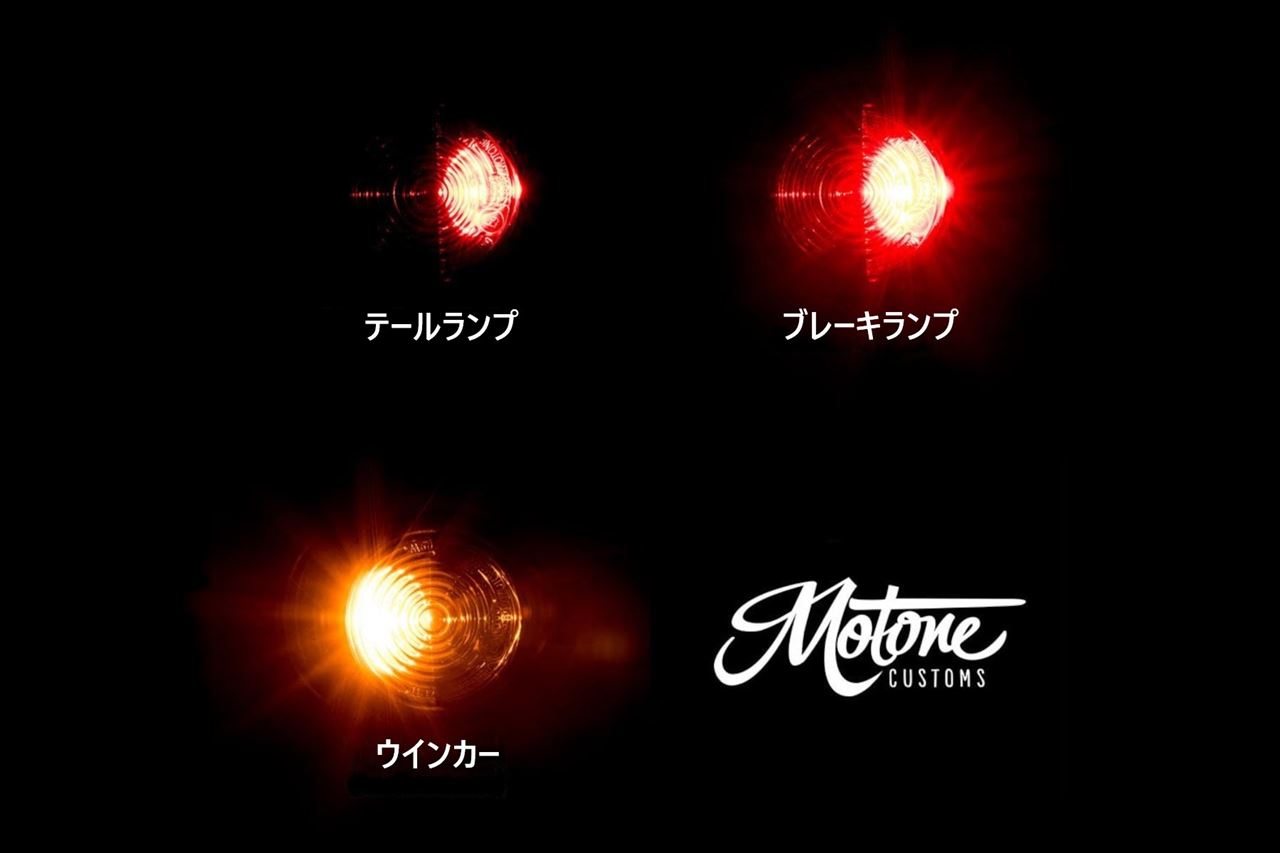

The "ICON MULTI" is a classical LED light that integrates a tail light, brake light, and turn signal.
We have skillfully combined modern technology with classic design to create a masterpiece that is perfect for the modern classic series.
Can be connected to a harness (part number DDM021/DDM016/DDM017) that uses branched terminals for the tail light and brake light wiring.
Aluminum body with excellent rigidity and texture
Classical bullet shape
Highly transparent acrylic lens that is resistant to yellowing and deterioration
Highly stealthy smoke lens
Cloth-wrapped wiring and rubber cover to reduce the risk of wire breakage, water intrusion, and age-related deterioration
High-brightness LED chip made by German OSRAM
E-mark certified (ECE R148)
Waterproof specifications
Can be connected to Motone harnesses without modification

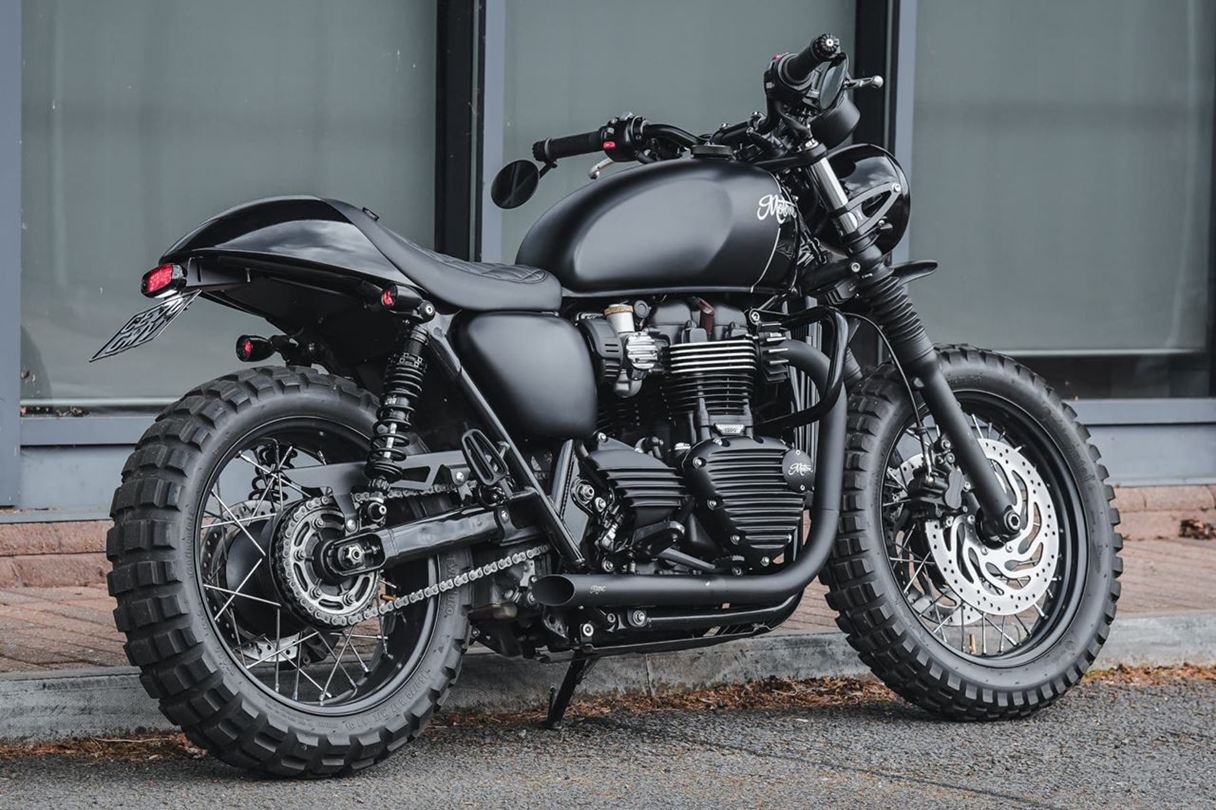

■Compatible models
BONNEVILLE SE (09-15)
BONNEVILLE T100 (02-25)
BONNEVILLE T120 (16-25)
STREET TWIN (16-22)
SPEED TWIN 900 (23-25)
STREET CUP (17-18)
STREET SCRAMBLER (17-22)
SCRAMBLER 900 (06-25)
BONNEVILLE BOBBER (17-25)
BONNEVILLE SPEEDMASTER (18-25)
SPEED TWIN 1200 (19-24)
THRUXTON 1200 (16-19)
THRUXTON 1200R (16-19)
THRUXTON 1200RS (20-24)
SCRAMBLER 1200X (24-25)
SCRAMBLER 1200XC (19-24)
SCRAMBLER 1200XE (19-25)
THRUXTON 900 (05-15)

■Specifications
M8x20 bolt
Turn signal power consumption: 3.4W
Tail light power consumption: 2.0W
Brake light power consumption: 4.7W

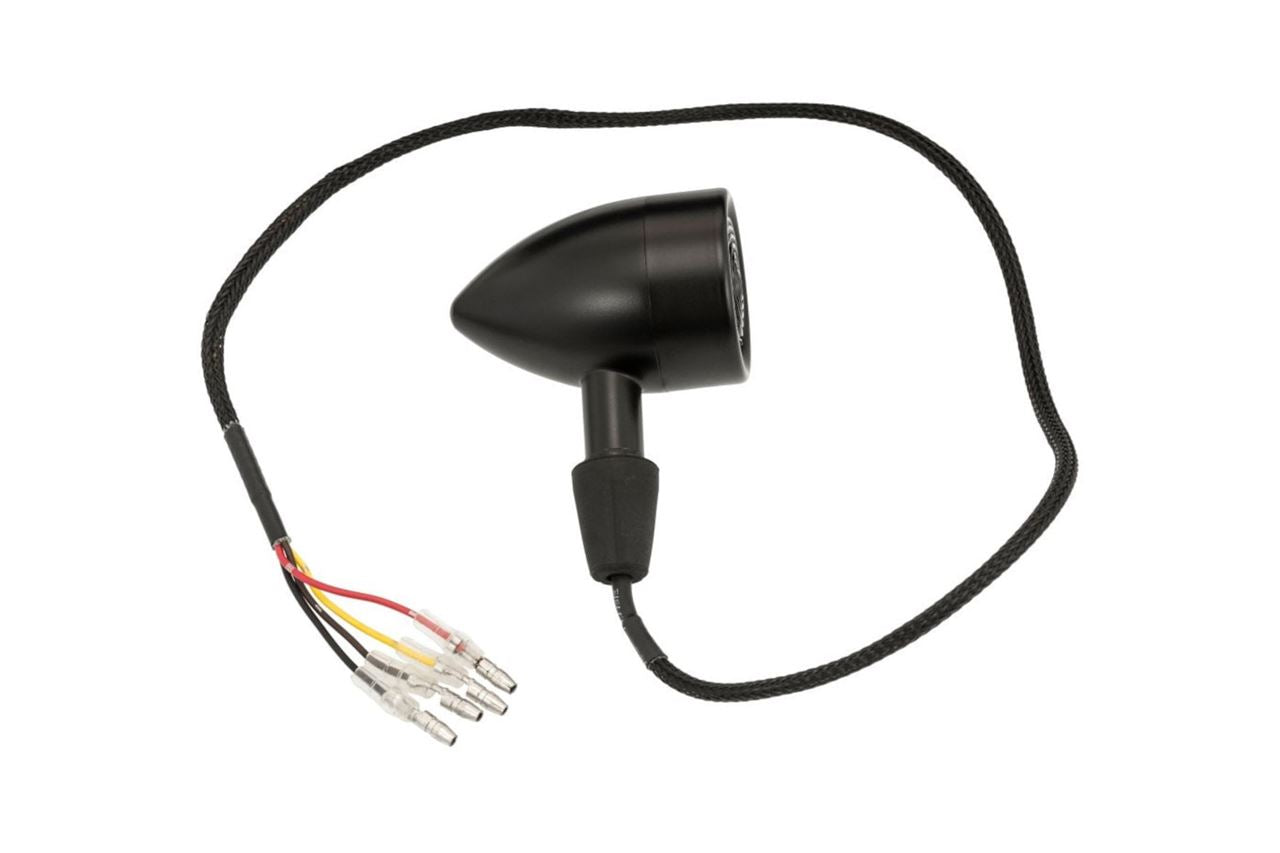

Wiring types
Red: Brake light
Yellow: Tail light
Brown: Turn signal
Black: Ground
Color: Black

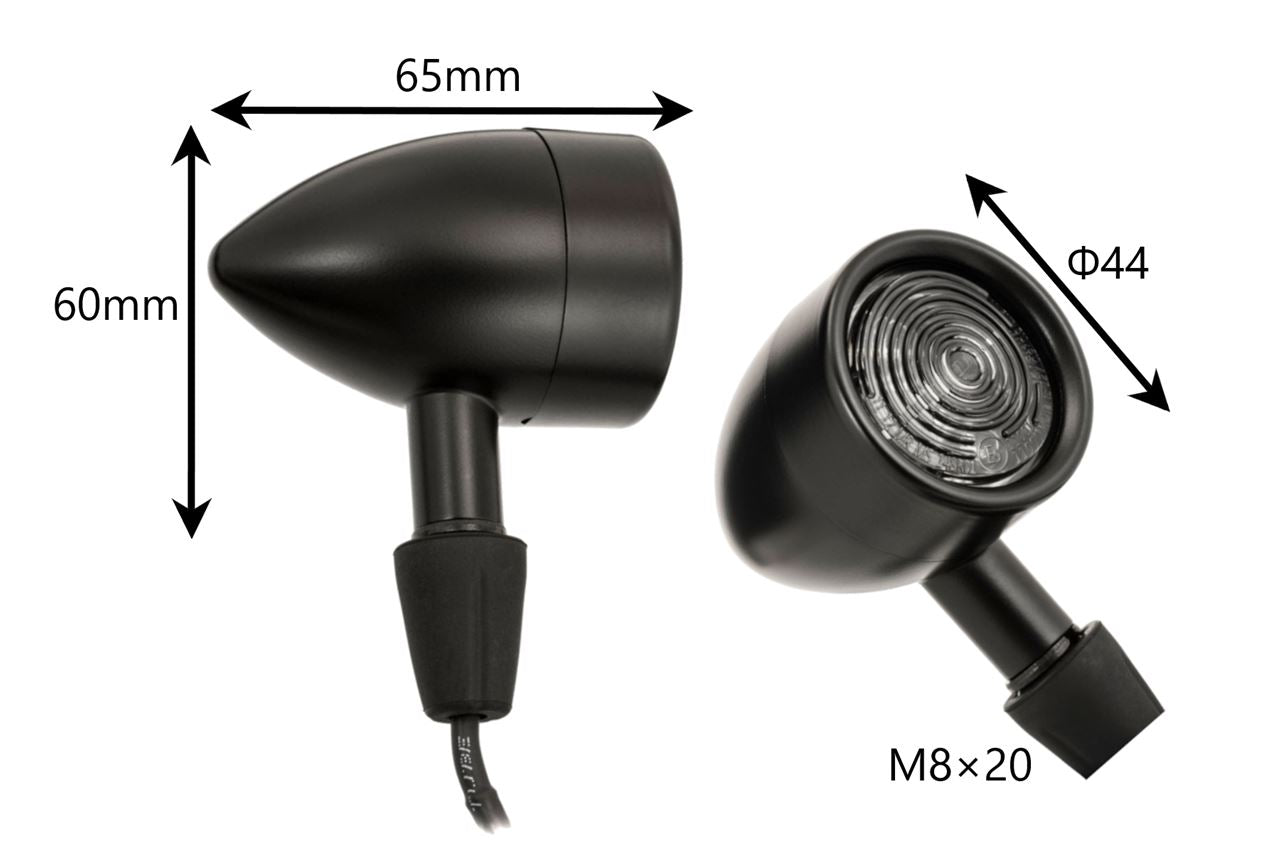

Size: Width 44mm x Depth 65mm x Height 60mm (excluding bolt)
Material: Aluminum, Acrylic
Quantity: 2 pieces
Accessories: Rubber cover
Remarks: E-mark certified, OSRAM LED chip, cloth-wrapped wiring, waterproof specifications, smoke lens, acrylic lens
Usage precautions: For 12V battery only

■Other Notes
*Instruction manual is not included.
*Since the products are air-freighted from the UK, there may be minor scratches or tears in the box.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications may change without prior notice. Thank you for your understanding.
