Bar End Mirror Turismo Black 100mm 1 pc Speed Twin 900 Scrambler 900

【Motone MRR002 Bar End Mirror Turismo Black 100mm 1pc for Speed Twin 900 Scrambler 900 Motorcycle Parts Custom Parts Handlebar Parts】
■Product Description

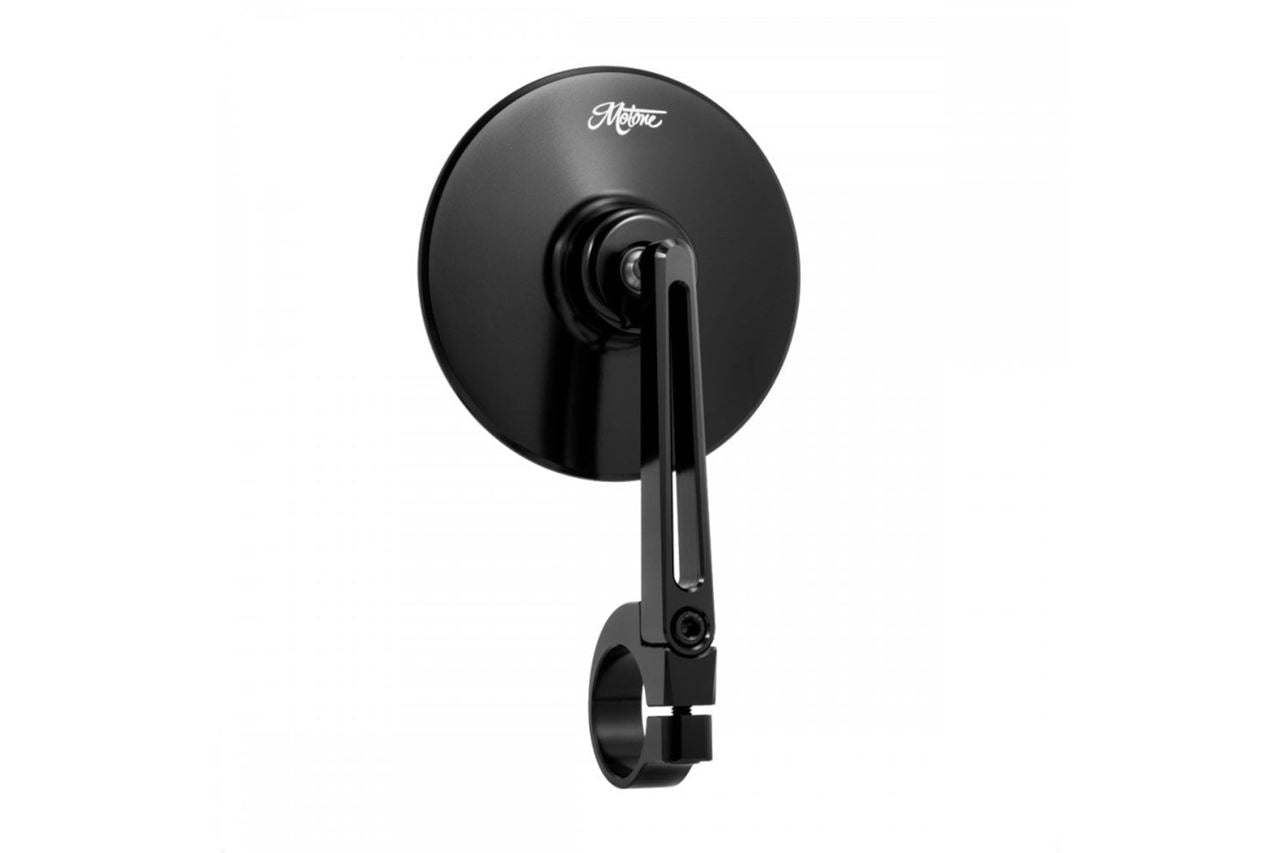

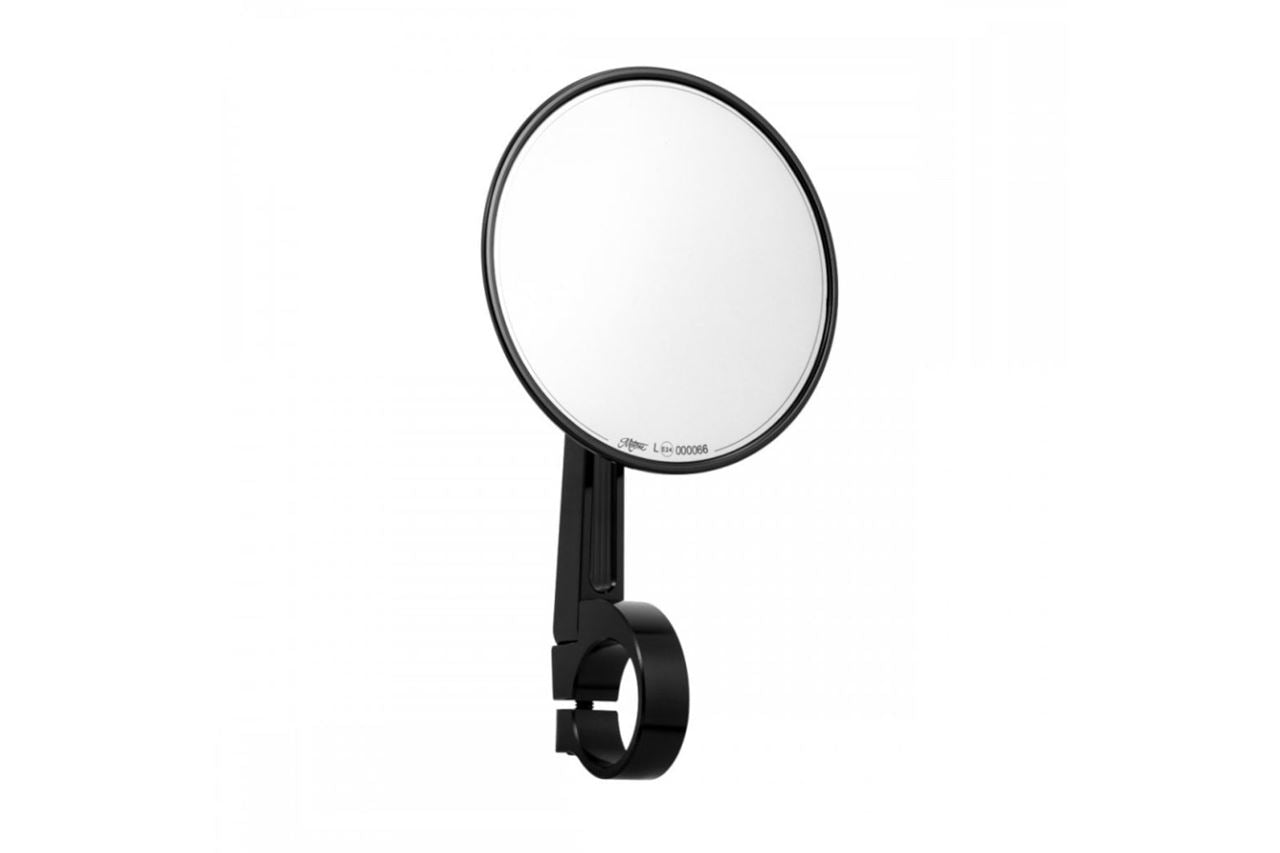

Aluminum billet bar end mirror "TURISMO"
Features a gloss black finish body based on a linear design.
Utilizing high-quality glass mirrors, it ensures strength against minor scratches and a curvature that provides a wide field of vision.

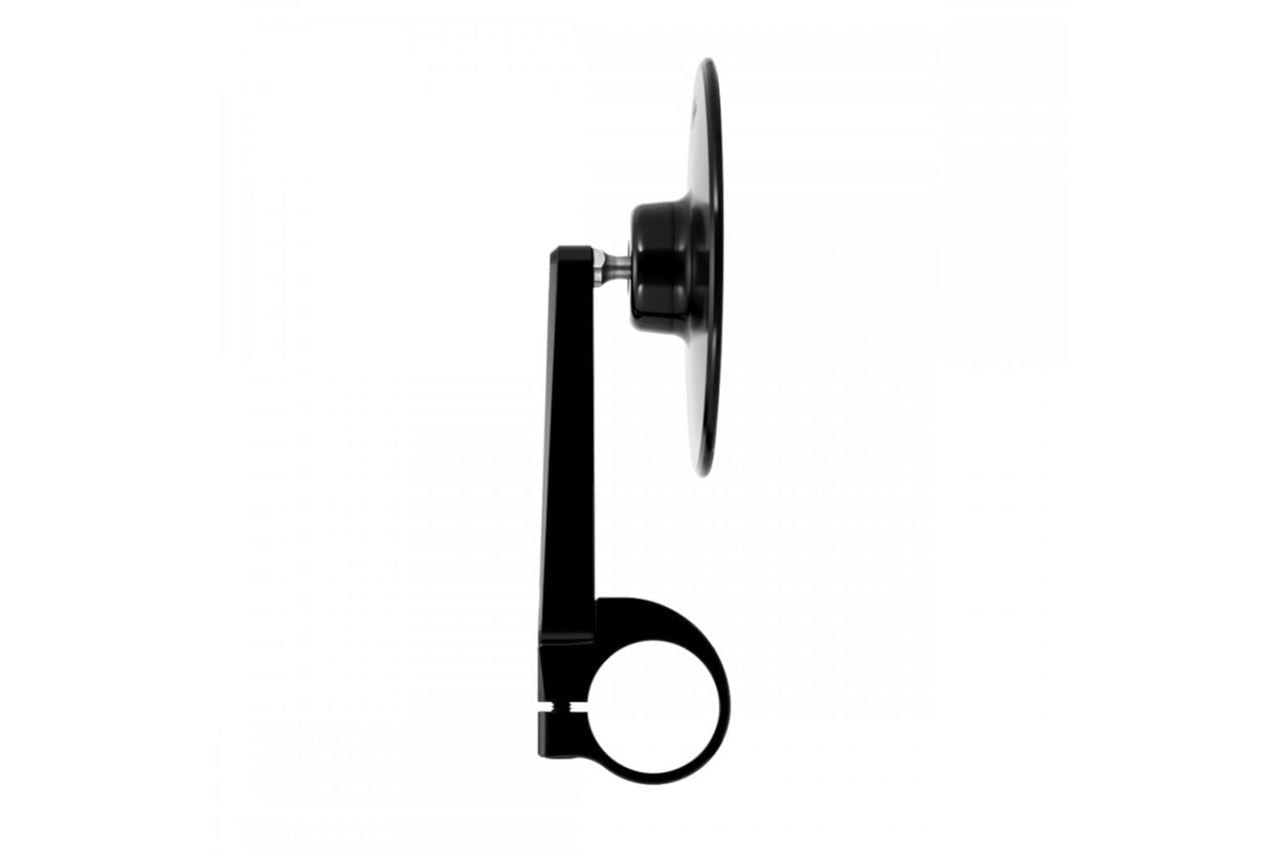

The arm can be adjusted to change not only the mirror angle but also the extent of its protrusion.

■Compatible Models
BONNEVILLE T100 (17-25)
BONNEVILLE T120 (16-25)
STREET TWIN (16-22)
SPEED TWIN 900 (23-25)
STREET CUP (17-18)
STREET SCRAMBLER (17-22)
SCRAMBLER 900 (23-25)
BONNEVILLE BOBBER (17-25)
BONNEVILLE SPEEDMASTER (18-25)
SPEED TWIN 1200 (19-25)
THRUXTON 1200 (16-19)
THRUXTON 1200R (16-19)
THRUXTON 1200RS (20-24)

■Specifications
"TURISMO" with a gloss black finish based on a linear design.
E-mark certified "100mm diameter" mirror surface meeting safety standards.
A6061 aluminum billet body.
Gloss black anodized finish.
Simple design with weight-reducing cutouts.
E-mark certified.
Mirror diameter 100mm.
Mirror surface curvature R1400.
Thin 4mm thick mirror.
High-strength glass mirror.

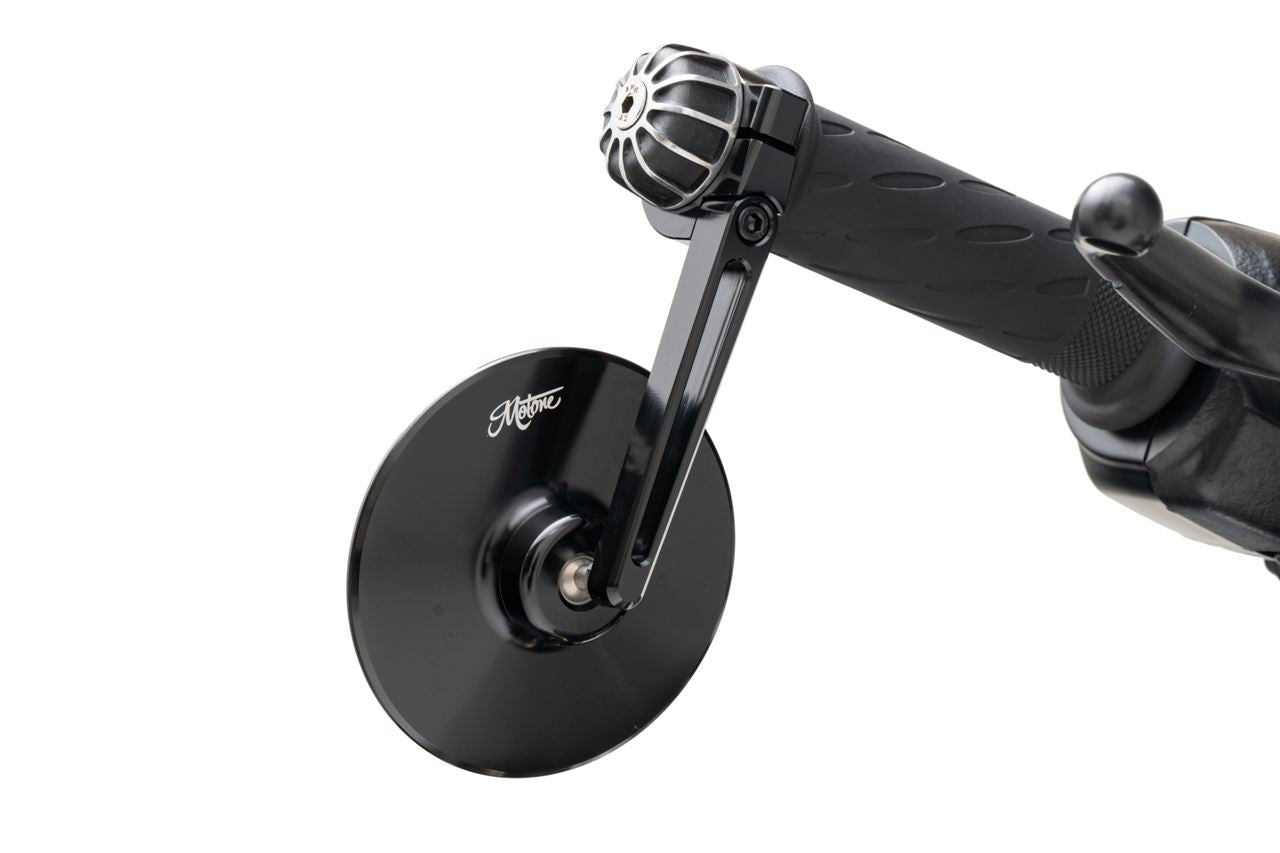

Can be installed simultaneously with Motone bar ends.
Includes billet collars for 22.2/25.4mm handlebars.
Dimensions of each part:
Clamp width: 15mm
Clamp inner diameter: 30mm
Collar inner diameter for 25.4mm handlebars: 25mm
Collar inner diameter for 22.2mm handlebars: 22mm
Product Notes:
Includes 1 piece, universal for left and right.
Cannot be installed simultaneously with cup-type genuine bar ends (used on models where bar end mirrors are not originally installed) due to insufficient bolt length.
For some models (Street Twin/Speed Twin 900/Street Scrambler/Scrambler 900) where the reservoir tank is fixed to the mirror holder, please prepare an M10 bolt separately or purchase the mirrorless kit (part number MMU580).
Type: TURISMO
Color: Black
Size: Mirror diameter 100mm
Material: Aluminum
Quantity: 1 piece per side
Accessories: Billet collars for 22.2/25.4mm handlebars.
Manufacturing method: Machined from billet
Remarks: Gloss black finish, high-strength glass used, mirror curvature R1400, E-mark certified, universal for left and right.
Caution: Cannot be installed simultaneously with cup-type genuine bar ends. For some models where the reservoir tank is fixed to the mirror holder, please purchase an M10 bolt separately or the mirrorless kit (part number MMU580).

■Other Notes
*Instruction manual is not included.
*Since the products are air-shipped from the UK, there may be slight scratches or tears on the box.

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product designs and specifications are subject to change without prior notice. Thank you for your understanding.
