Bar End Mirror Turismo Black 80mm 1 pc T100/T120 Speed Twin 900 Scrambler 900

【Motone MRR004 Bar End Mirror Turismo Black 80mm 1 pc T100/T120 Speed Twin 900 Scrambler 900 Motorcycle Parts】
■Product Description

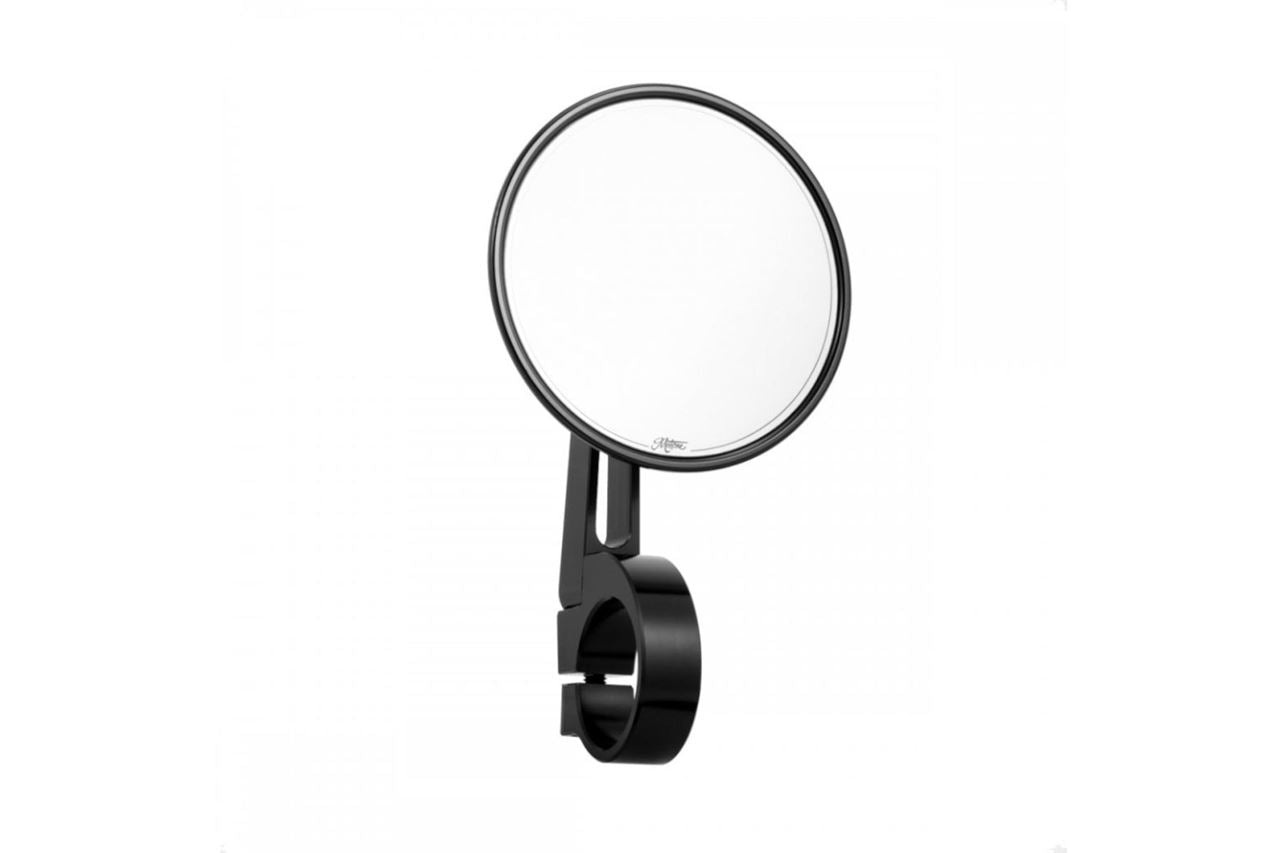

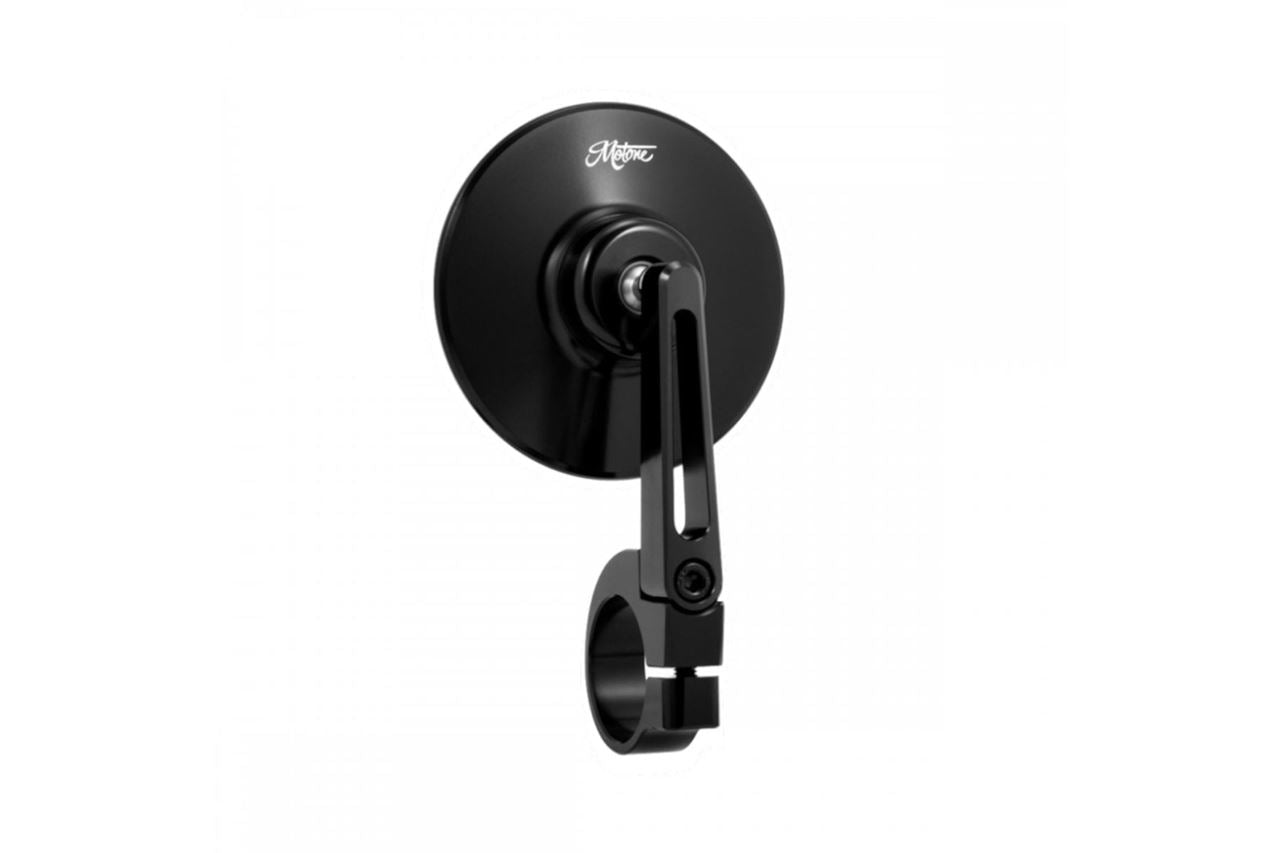

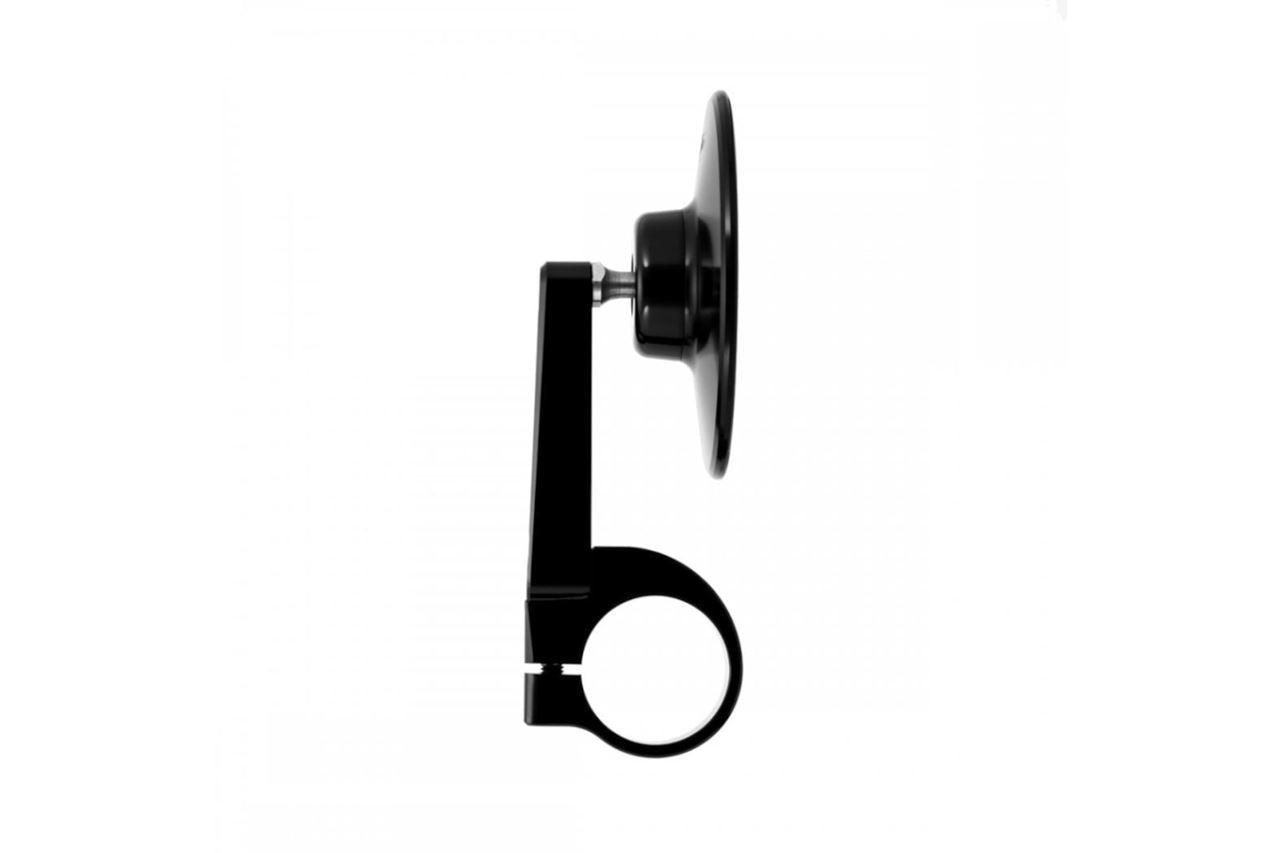

Billet aluminum bar end mirror "TURISMO"
Features a gloss black finish body based on a straight line design.
Utilizes high-quality glass mirrors, ensuring scratch resistance and a curvature that provides a wide field of vision.
In addition to the mirror angle, the arm adjustment also allows for adjustment of the mirror's protrusion.

■Compatible Models
BONNEVILLE T100 (17-25)
BONNEVILLE T120 (16-25)
STREET TWIN (16-22)
SPEED TWIN 900 (23-25)
STREET CUP (17-18)
STREET SCRAMBLER (17-22)
SCRAMBLER 900 (23-25)
BONNEVILLE BOBBER (17-25)
BONNEVILLE SPEEDMASTER (18-25)
SPEED TWIN 1200 (19-25)
THRUXTON 1200 (16-19)
THRUXTON 1200R (16-19)
THRUXTON 1200RS (20-24)

■Specifications
"TURISMO" with a gloss black finish based on a straight-line design
Compact "80mm diameter" that blends in with the vehicle body
A6061 billet aluminum body
Matte black anodized finish
Simple design with weight-reducing cutouts
Mirror diameter: 80mm
Mirror surface curvature: R1400
Thin 4mm thick mirror
High-strength glass mirror
Can be installed simultaneously with Motone bar ends
Includes billet collars for 22.2/25.4mm handlebars
Dimensions of each part
Clamp width: 15mm
Clamp inner diameter: 30mm
Collar inner diameter for 25.4mm handlebar: 25mm
Collar inner diameter for 22.2mm handlebar: 22mm
Product Notes
Includes 1 piece, compatible for left and right sides
Cannot be used simultaneously with cup-type genuine bar ends (used on models without genuine bar end mirrors installed) because the bolt length will be insufficient.
For some models where the reservoir tank is fixed to the mirror holder (Street Twin/Speed Twin 900/Street Scrambler/Scrambler 900), please prepare a separate M10 bolt or purchase a mirrorless kit (part number MMU580).
Type: TURISMO
Color: Black
Size: Mirror diameter 80mm
Material: Aluminum
Quantity: 1 piece per side
Accessories: Billet collars for 22.2/25.4mm handlebars
Manufacturing method: Billet
Remarks: Gloss black finish, high-strength glass used, mirror surface curvature R1400, compatible for left and right
Usage precautions: Not compliant with safety standards, cannot be used simultaneously with cup-type genuine bar ends, for some models where the reservoir tank is fixed to the mirror holder, please purchase a separate M10 bolt or mirrorless kit (part number MMU580)

■Other Notes
*Instruction manual is not included.
*Products are air-shipped from the UK, so there may be minor scratches or tears on the box.

■Notes
*Images are for illustration purposes only. Includes products of different sizes and colors.
*Product design and specifications are subject to change without prior notice. Thank you for your understanding.
