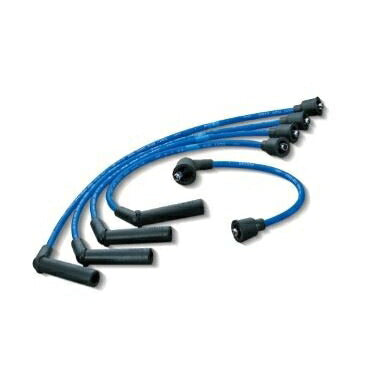

NGK RC-MX119-1217 Spark Plug Wires 1217

【NGK RC-MX119-1217 Spark Plug Wires 1217】
■Product Description
Compatible with a wide range of vehicles, providing excellent driving performance.

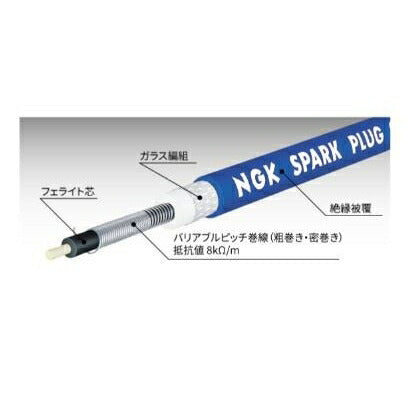

NGK spark plug wires have stable resistance values due to their metallic resistance winding, and excellent transmission performance, which is their original function. They also prevent radio interference caused by noise from the engine's ignition system, and their balanced design protects engine electronics and suppresses ignition noise that enters car audio systems, car navigation systems, and car radios. They have a structure where a metallic resistance wire is wound in a variable pitch, alternating between coarse and dense, on a ferrite core, and then covered with a special insulating coating.

Specifications
Compared to general wires (16kΩ/m), the resistance value is 1/2 at 8kΩ/m, resulting in less loss and superior transmission performance.
The variable pitch winding, with metallic resistance wires wound coarsely and densely, and the adoption of a ferrite core, provide excellent radio noise suppression effects over a wide range from low to high frequencies. This is excellent for preventing noise in engine electronics, car audio, car navigation systems, etc.
Because they use metallic resistance wire, there is no change in resistance value even after long periods of use, offering excellent durability.
Heat-resistant rubber is used, and for models requiring particularly high heat resistance, silicone rubber is adopted.
【Correct Installation Method】
1. Always remove and install spark plug wires when the engine has cooled sufficiently.
When hot, if the spark plug wires come into contact with the exhaust system, etc., the spark plug wires or caps may melt or be damaged, and there is a risk of burns.
2. When removing spark plug wires, always hold them by the cap.
3. If they are difficult to remove, twist the cap left and right while pulling straight to remove them.
4. Check the number and length of the currently installed spark plug wires, and replace them with new spark plug wires of the same number and length.
*Remove and install spark plug wires one by one.
5. After installing the spark plug wires, confirm that they are fully inserted. If not fully installed, they may come off due to vibration or cause leaks.
6. In DOHC engines where spark plug wires are laid out in a narrow space,
removing the cord clamp and distributor side first will make the work easier. (When installing, the plug cap side goes first in reverse order).
7. Please use the conventional cord clamps.
Compatible manufacturer: Mitsubishi

■Image Notes
*Images are for illustration purposes only. They include products of different sizes and colors. Product designs and specifications may change without prior notice. Please understand.

■Precautions
Spark plug wires, power cables, spark plug caps & wires, racing cables, and spark plug caps are not designed or manufactured for GHP (gas heat pump air conditioner) engines or gas turbines. Do not use them as engine malfunction could lead to the cessation of power generation and heating functions.
Spark plug wires, power cables, spark plug caps & wires, racing cables, and spark plug caps are ignition devices for internal combustion engines and are designed and manufactured to be suitable for gasoline engines, etc. Do not use them for ignition in gas burners, etc., as this could lead to ignition failure or equipment damage due to overheating.
Please do not use spark plug wires and power cables for vehicles other than those listed as compatible on the NGK website. If the cord length does not match, the cord may touch a hot engine or come off, causing damage to your car.
