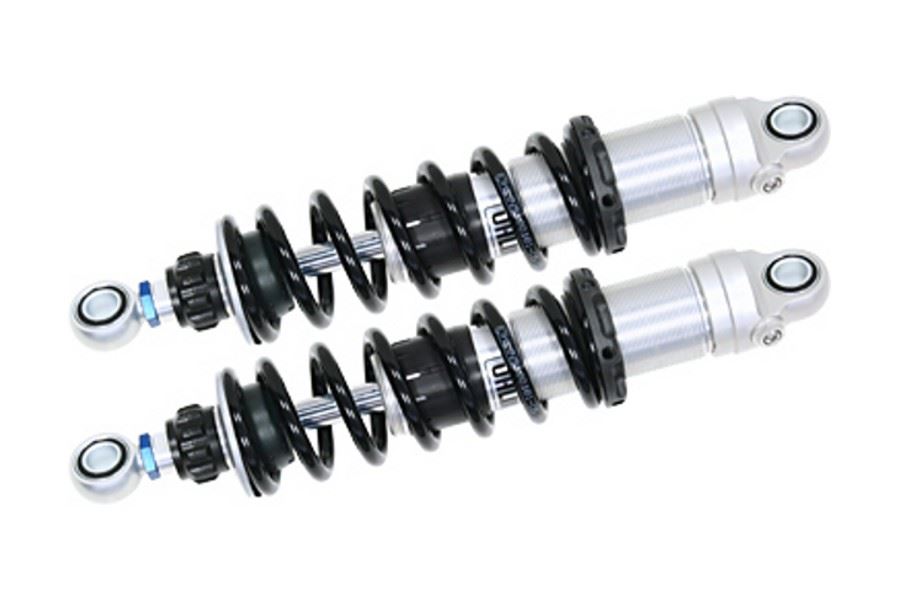

Rear Shock S36DR1L Harley Dyna Family 91-17

【Ohlins HD816 Rear Shock S36DR1L Harley Dyna Family 91-17 Motorcycle Parts Custom Parts Suspension 】
■Product Description
A balanced model with an aluminum cylinder body equipped with rebound damping adjustment and ride height adjustment, offering sufficient functionality despite its simple appearance.
The internal gas and oil chambers are completely separated by a free piston, allowing for stable damping characteristics as if equipped with a separate reservoir.
Stable operating feel due to the De Carbon design.
Sophisticated appearance with a forged aluminum cylinder and a single-nut type spring preload adjuster.
Equipped with stepless spring preload adjustment, rebound damping adjustment, and ride height adjustment, allowing for various settings.

■Specifications
Free Length: 325mm
Rebound Damping Adjustment: Equipped
Compression Damping Adjustment: None
Preload Adjustment: Stepless screw type
Ride Height Adjustment [Adjustment Range]: Equipped +5/-5mm
Body Length: 12.8inch
Type: S36DR1L
Color: Spring Black
Piston Diameter: 36mm
Reservoir [Yes/No]: No
Remarks: Standard length for FXD
Usage Note: For DYNA GLIDE FAMILY, the number of included spacers may not be sufficient depending on the vehicle. In such cases, please purchase additional spacers separately.

■Important Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please understand.
