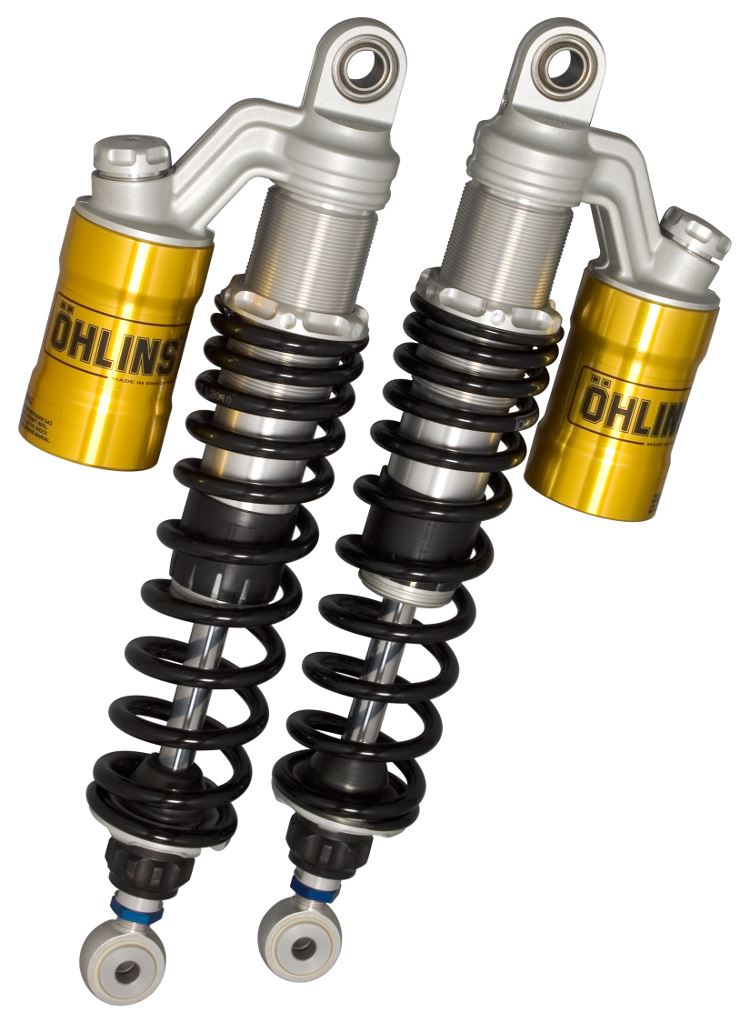

Rear Shock S36PR1C1L CB1300SF SB 03-20 CB1100RS 17-22 ZRX1100

【Ohlins HO414 Rear Shock S36PR1C1L CB1300SF SB 03-20 CB1100RS 17-22 ZRX1100 Motorcycle Parts Custom Parts Suspension】
■Product Description
Grand Twin is Ohlins' high-end line of twin shocks. This is a fully adjustable shock with a separate reservoir tank. A free piston that isolates gas and oil is built into the large capacity reservoir tank. This prevents cavitation and aeration, which can lead to unstable performance, and boasts high heat dissipation. Preload adjustment is a simple screw type.

■Compatible Models
Honda: Engine displacement 751cc~: CB1300SF [SC54](03-20)
Honda: Engine displacement 751cc~: CB1300SB [SC54](05-20)
Honda: Engine displacement 751cc~: CB1100RS(17-22)
Kawasaki: Engine displacement 751cc~: ZRX1100

■Specifications
Grand Twin
Rebound Damping Adjustment: Equipped
Compression Damping Adjustment: 20 levels
Preload Adjustment: Stepless screw type
Ride Height Adjustment [Adjustment Range]: Adjustable (mm)
Type: S36PR1C1L
Color: Black Spring
Piston Diameter: 36mm
Reservoir Tank [Yes/No]: Yes (Piggyback Type)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without prior notice. Please understand.
