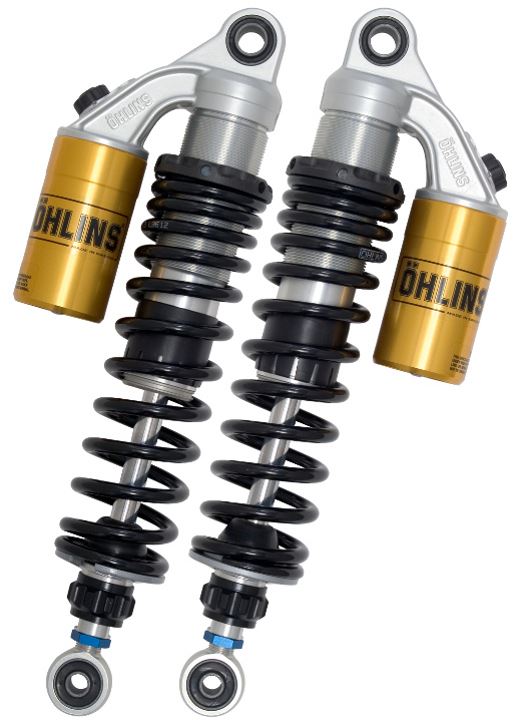

Rear shock S36PR1C1L Zephyr 1100, Z-series (old models), Z1R, Z1000R, 900, 750GP

【ÖHLINS KA132 Rear Shock S36PR1C1L Zephyr 1100 Old Z Series Z1R Z1000R 900 750GP Motorcycle Parts Custom Parts Suspension】
■Product Description
Legend Twin: This is the fourth-generation twin shock that refines the essential functions while maintaining the basic performance of the full adjustable twin shock that has been popular for many years. As its name "LEGEND" suggests, it was born to carry on the Öhlins tradition.
This is the fourth-generation twin shock that refines the essential functions while maintaining the basic performance of the full adjustable twin shock that has been popular for many years.
"LEGEND," as its name suggests, was born to carry on the Öhlins tradition.
The main piston's damping force generation mechanism, spindle, cylinder material, and machining accuracy are the same as those of the "GRAND TWIN."
*Modifications such as changing the chain line may be required when installing this shock.

■Compatible Models
Kawasaki [KAWASAKI]: Engine displacement 401cc-750cc: Z750GP/R
Kawasaki [KAWASAKI]: Engine displacement 751cc~: ZEPHYR1100 (All model years)
Kawasaki [KAWASAKI]: Engine displacement 751cc~: Z1000R1/R2 [Lawson Replica]
Kawasaki [KAWASAKI]: Engine displacement 751cc~: Z1R [D1]/Z1R-2 [D2/D3]
Kawasaki [KAWASAKI]: Engine displacement 751cc~: 900Super4 [Super4 Z1 (A/B)]

■Specifications
Free length: 347mm
Spring rate: 18-27N/mm
Rebound damping adjustment function: Equipped (30 steps)
Compression damping adjustment function: Equipped (4 steps)
Preload adjustment function: Single-nut stepless preload adjuster
Ride height adjustment function [adjustment range]: With adjustment function +7/-3mm
Stroke: 92mm
Type: S36PR1C1L
Color: Spring Black
Specification: Legend Twin
Piston diameter: 36mm
Reservoir [with/without]: With (piggyback type)
Overall spring length: 230mm
Remarks: *Modifications such as changing the chain line may be required for old Z series. Overall spring length 230mm
Usage Precautions: Some old Z series Z1R/Z1000R/900/750GP models may not have enough chain line and clearance. In such cases, processing such as changing the chain to 530 is required.

■Notes
※Images are for illustration purposes only. Includes products with different sizes and colors.
※Product design and specifications are subject to change without notice. Please be aware of this.
