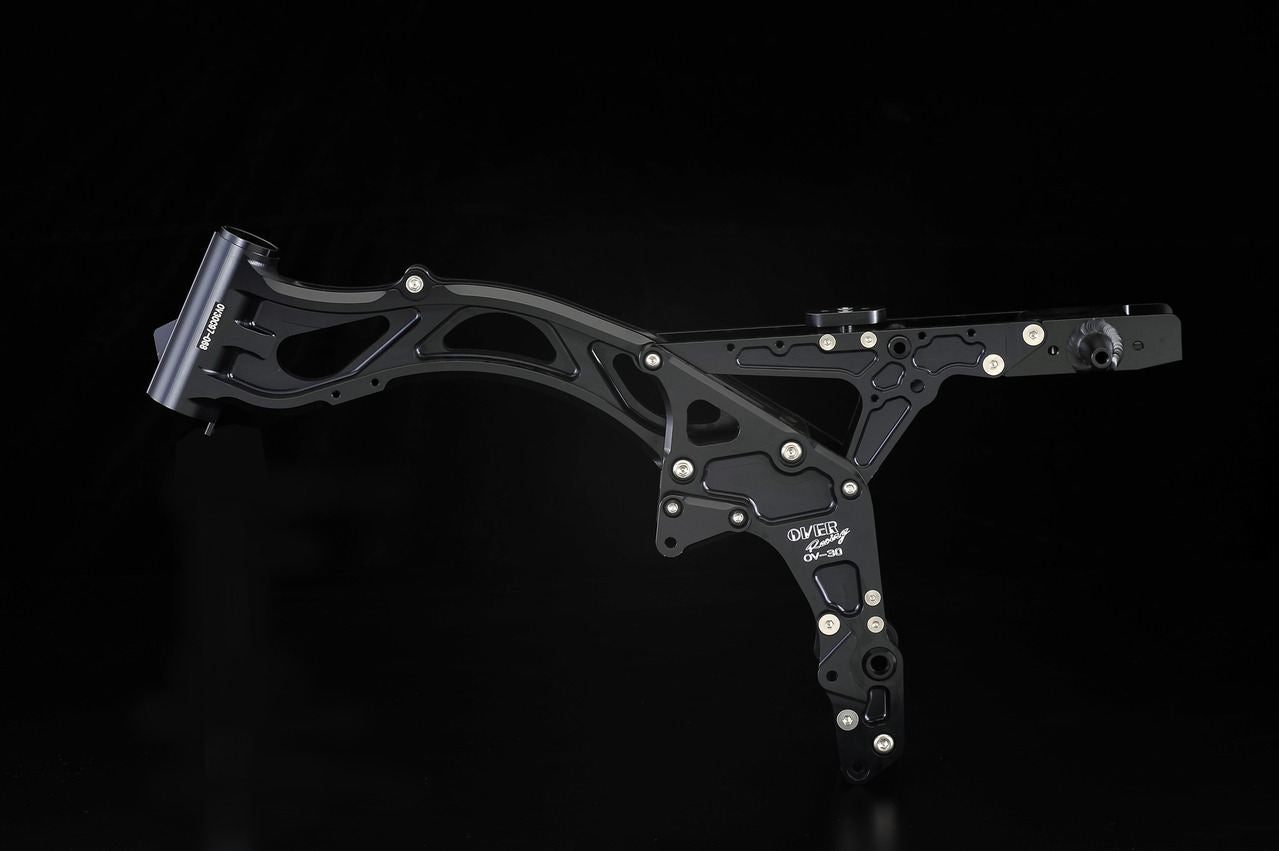

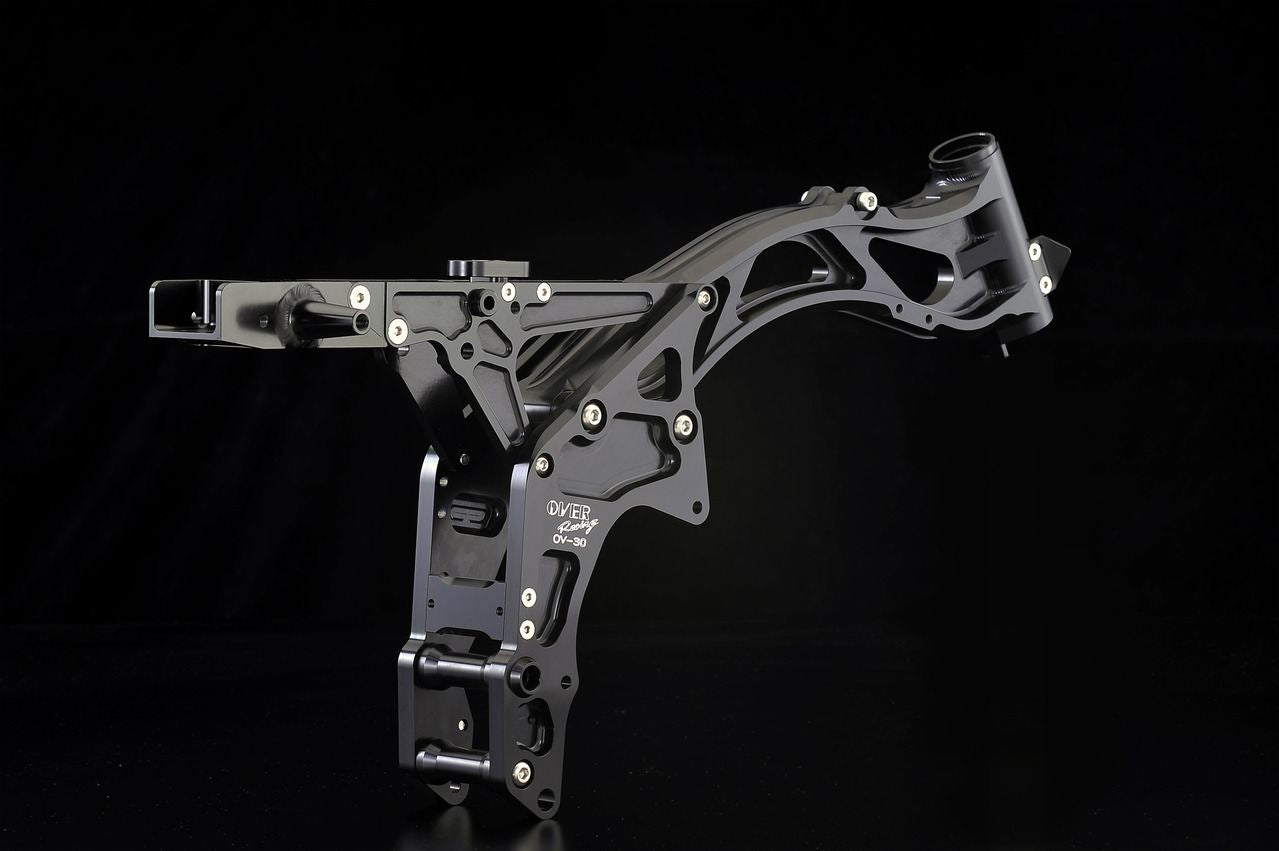

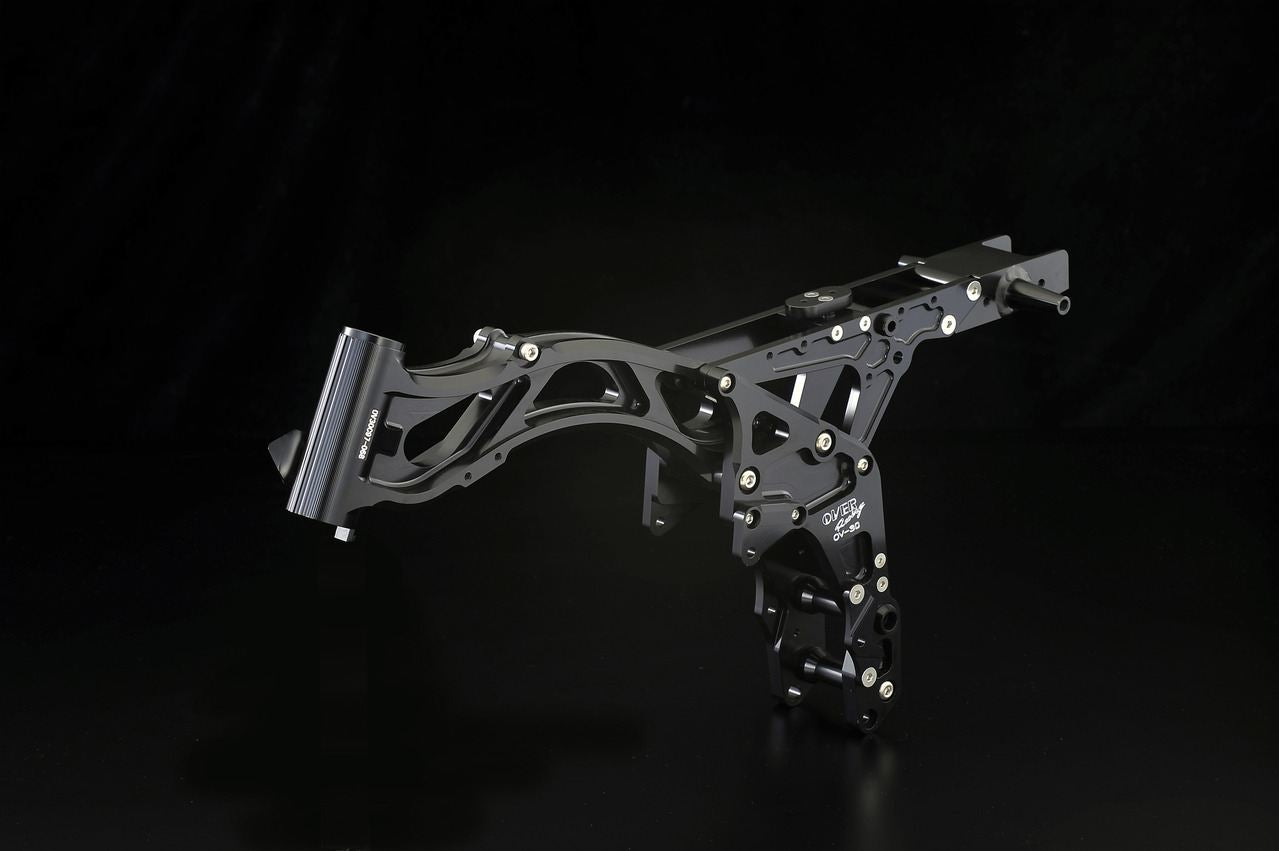

OV-30 Monkey Frame Kit, Black, Black Anodized Finish, 1 pc.

【OVER RACING 64-01-301 OV-30 Monkey Frame Kit Black MONKEY Black Anodized Finish 1 Piece OVER Motorcycle Parts Custom】
・Black anodized finish
・Machined from a single piece with integrated head pipe
・Main frame and pivot plate are completely assembled with bolts.
・By extending the neck length by 30mm, this frame accommodates 12-inch custom bikes using stems with minimal offset and engines with long strokes, while ensuring trail and improving riding stability.
・The engine mounting position can be offset, allowing selection between a chain line for Monkey wheels and a chain line for NSR-type wheels. There is no need to use a front offset sprocket.
・Compatible with Monkey swingarms, allowing for a wide range of options such as long, wide, and NSR width.
・For the monoshock version, an OVER-made dedicated swingarm allows the installation of NSF100 shock units. Specifications such as wide and NSR width can be changed upon order.
・The swingarm pivot shaft can be selected between standard φ10mm and upsized φ12mm. By using our φ12 bearing swingarm, it can achieve rigidity equivalent to 12-inch vehicles like the NSF100 and XR Motard.
・Bearing races are not pressed in. Please prepare them.
・Optional battery case/side cover stay set allows the installation of genuine battery cases (requires modification) and side covers, and a normal step brake arm shaft accommodates a wide range of custom styles.
・When using OVER backsteps with the engine mounting position (left offset) adjusted for the NSR chain line, a backstep stay set is required.
・4P backsteps (51-01-11/11B/11G/51-01-12/12B/12G) and GP-Performance (51-01-22/22B/22G) can be used.
■Specifications
Compatible Models: HONDA MONKEY [Monkey Z50J]
Type: OV-30 Monkey Frame Kit Black MONKEY
Color: Black anodized finish
Quantity: 1 piece
・3-position backsteps (part numbers 51-01-51, 51-01-52) cannot be installed.

■Notes
※Images are for illustration purposes only. They may include products of different sizes or colors.
※Product designs and specifications may change without notice. Thank you for your understanding.
