FLYWHEEL ASSY 4-3/8 TWIN CAM (07-17) DYNA SOFTAIL TOURING

【S&S Cycle 320-0352 Flywheel Assy 4-3/8 Twin Cam (07-17) Dyna Softail Touring Engine Parts Prot】

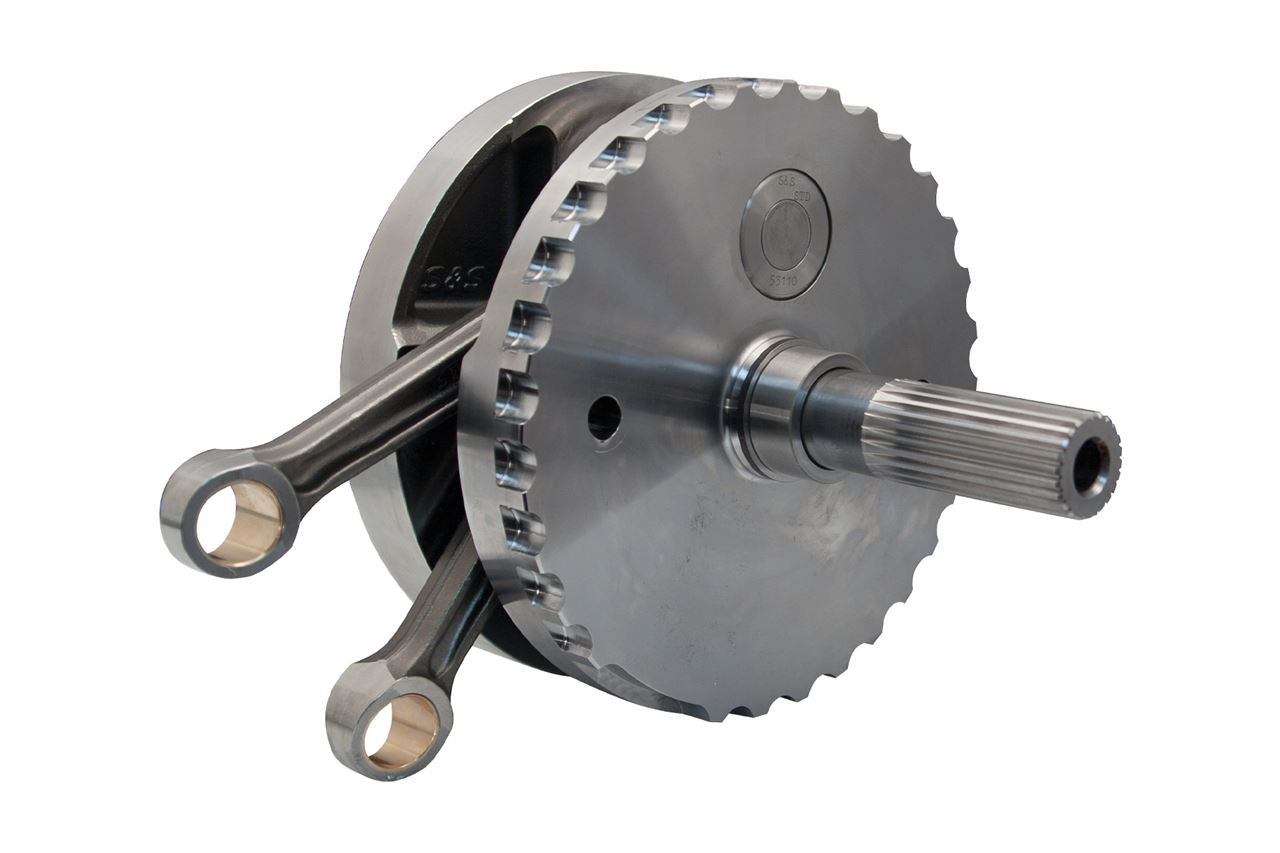

■Product Description The 4-3/8 inch stroke, 8-1/2 inch diameter flywheel assembly is interchangeable with the original flywheel in 2007-16 HD Big Twin engines when using OE pistons. The wrist pin end of the connecting rod is tapered like the OE rod. The sprocket shaft has a pressed-in bearing race and is compatible with OE roller sprocket shaft bearings. This wheel assembly is a three-piece design. The pinion shaft and sprocket shaft are forged integrally with the flywheel. The only joint in the assembly is where the 1.671-inch diameter connecting rod crankpin is pressed into the flywheel. The flywheel is CNC-machined from heat-treated, closed-die forged steel, making it 114% stronger than late-style OE steel flywheels. Assembled with S&S heavy-duty 7.659-inch connecting rods and tapered wrist pin ends, and dynamically balanced. The bearing surfaces of the pinion and sprocket shafts are adjusted with less than 0.0005 inch runout to accommodate high RPMs and are fully compatible with gear drive cams. ■Compatible Models Harley Davidson / Harley-Davidson Dyna Family (06-17) Softail Family (07-17) Touring Family (07-16) ■Specifications Material: Steel Remarks: Sprocket shaft bearing race specifications ■Notes *Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications may change without prior notice. Please understand. *Not compatible with Milwaukee 8. *For STOCK PISTON / with bearing race.
