Camera Adapter & U-Bolt Clamp Base Set (Standard Arm) φ12.7-31.75mm Black 1-inch Ball 1 pc.

【RAM Mount RAM-B-149Z-C1U Camera Adapter & U-Bolt Clamp Base Set (Standard Arm) φ12.7-31.75mm Black 1-inch Ball, 1 pc.】
■Product Description

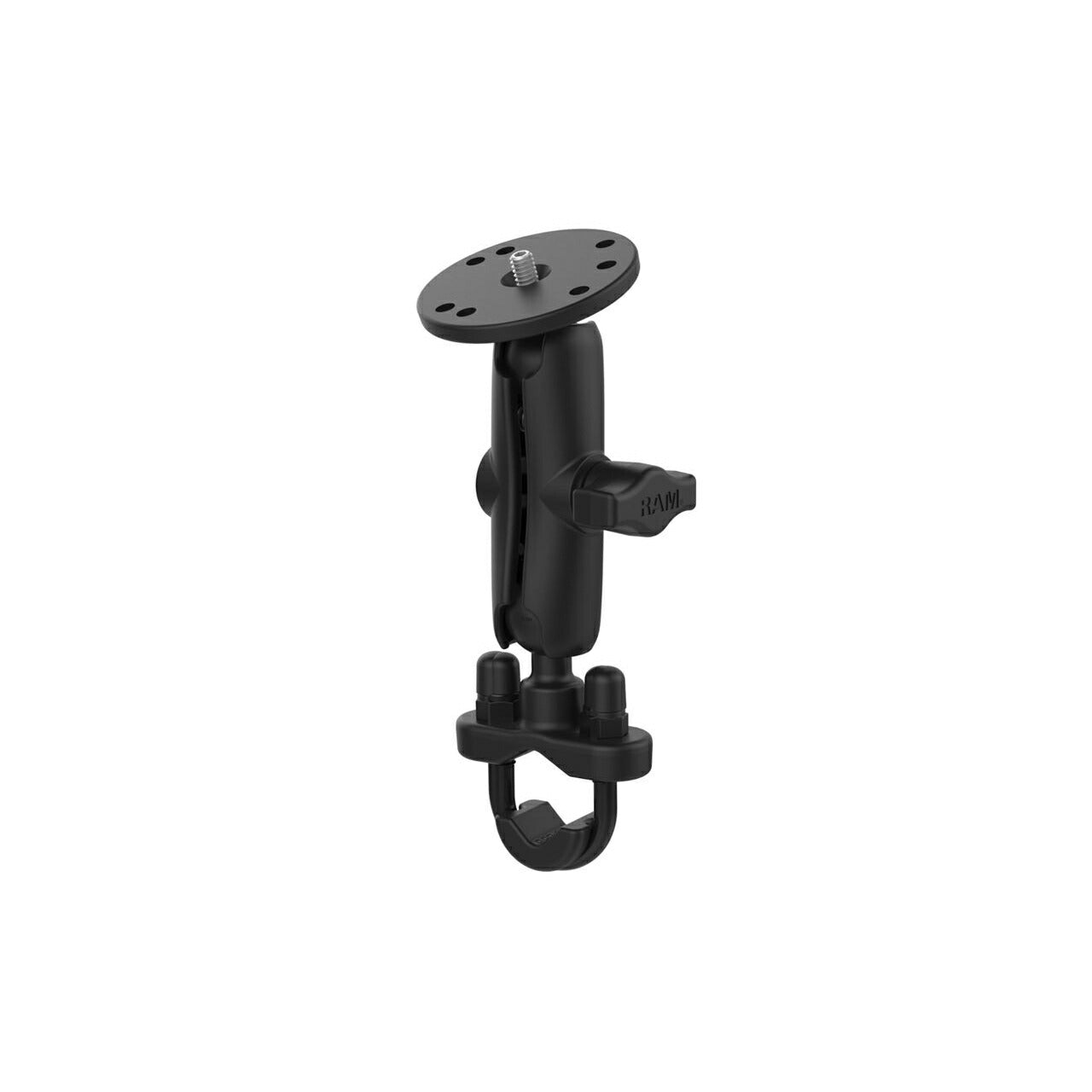

A set including a common tripod screw (1/4"-20), standard arm, and U-bolt clamp base (galvanized bolt).

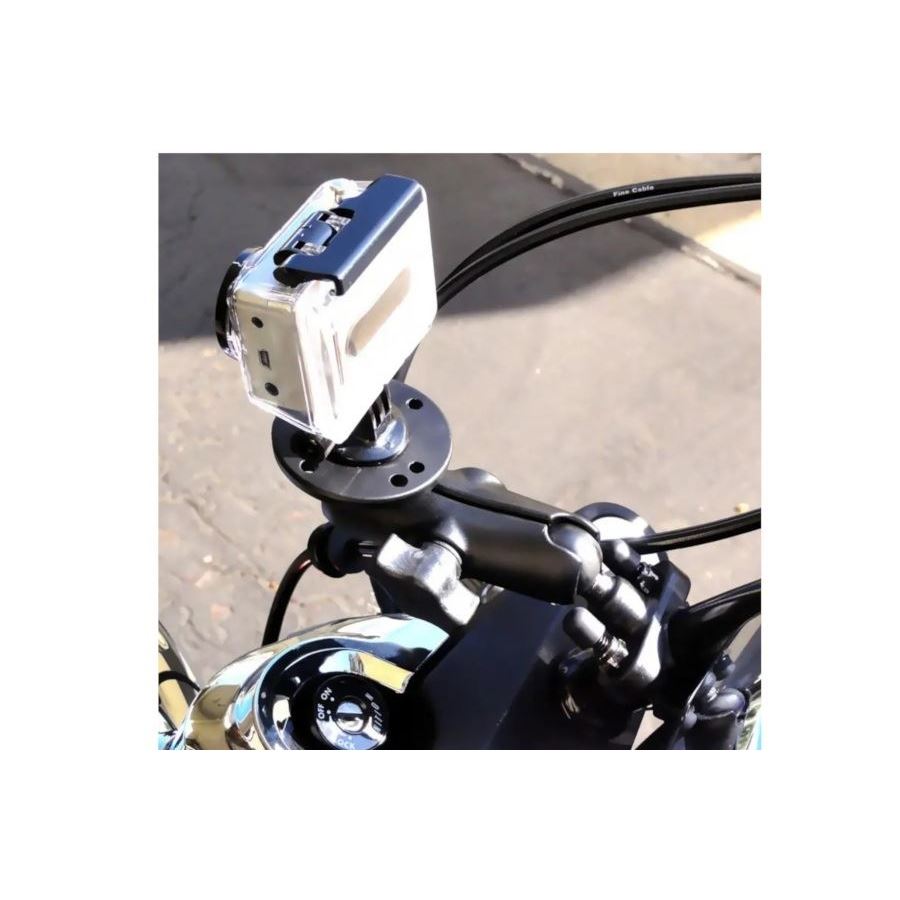

Allows compatible cameras to be mounted on pipes with a diameter of 12.7 to 31.75 mm.
The patented ball mount system allows for free adjustment of angles.

Specifications
Color: Black
Size: 1-inch ball
Weight [grams]: 304g
Material [material]: High-strength aluminum (Marine-grade aluminum)
Special notes: This product is B size (1-inch ball) standard. It is not compatible with other ball sizes.
Related products: Part numbers: P054-1252, P054-1255, P056-7064

Compatible models: All cameras with a general 1/4inch-20 size tripod screw hole
Quantity: 1 piece

Set contents/accessories

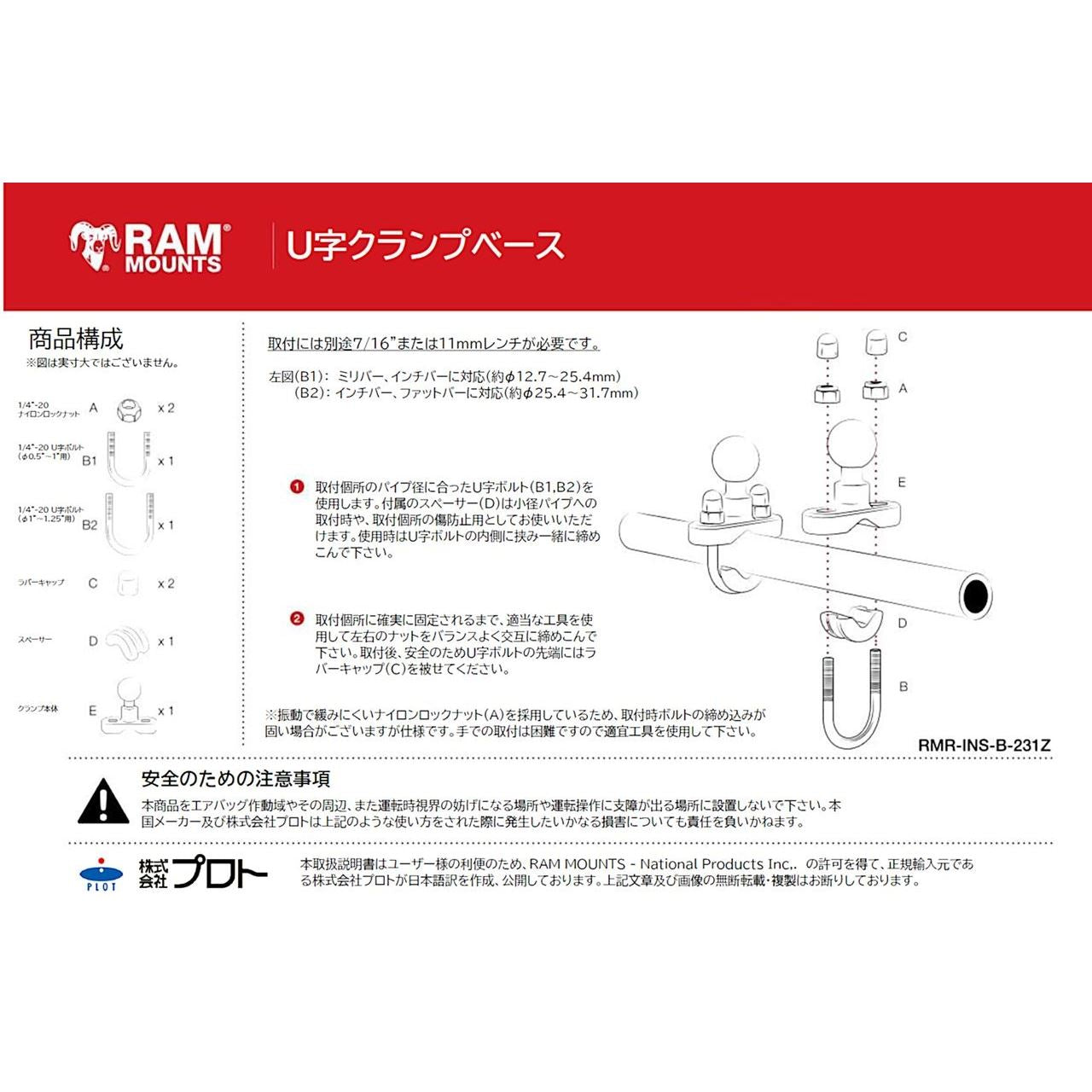

1/4inch-20 U-bolt (for φ12.7-25.4mm), 1/4inch-20 U-bolt (for φ25.4-31.75mm), 1/4inch-20 Nylock nut, rubber cap, spacer

Precautions
*Overtightening may cause the screw to bottom out. A separate inch tool (7/16inch wrench) is required for mounting the U-clamp.
*When installing, securely fix the product using commercially available thread locking adhesive, etc., as appropriate, depending on the usage environment and installation location.
*Always select a ball size with a load capacity appropriate for your intended use. Also, to prevent accidental detachment, use a safety strap or similar for the attached device.
*Due to the manufacturing process, some color unevenness, peeling, or burrs may be observed in the coating film on the product surface.

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please be aware.
