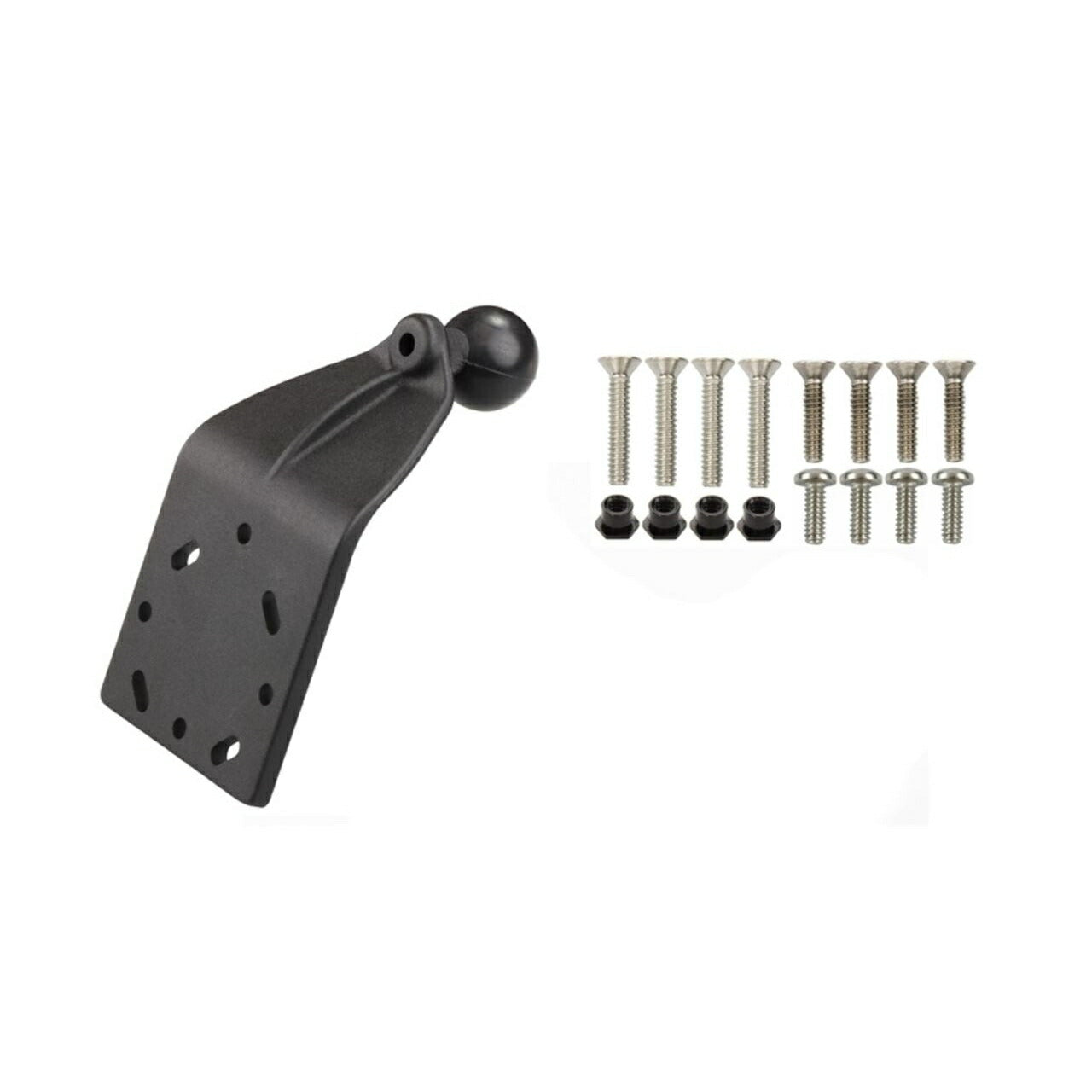

AMPS Hole Pattern Curve Base (Screw Mount) Black, 1-inch Ball, 1 Piece

【RAM MOUNTS RAM-B-125B-G1U AMPS Hole Pattern Curved Base (with Screws) Black 1-inch Ball, 1 pc. 】
■Product Description
The AMPS hole pattern, a standard for mounting GPS devices like Garmin and TomTom, has four holes spaced approximately 30 x 38mm apart. The RAM MOUNTS AMPS hole base is a joint part required for attaching some products, such as tablet holders and base parts that do not include a ball. It is highly versatile and can be used not only as a joint but also as a screw-fastened base part.

Specifications
Color: Black
Size: 1-inch ball
Weight [grams]: 91g
Material: High-strength aluminum (Marine-grade aluminum)
Specifications: With screws
Special Notes: This product conforms to the B-size (1-inch ball) standard. It is not compatible with other ball sizes.
Product Classification: AMPS Curved Base

Compatible Models: 【Garmin】 StreetPilot III GPSMAP 172-250
Quantity: 1 pc.

Set Contents / Accessories
#6-32 x 5/8inch Machine Screw, #6-32 x 7/8inch Machine Screw, #6-32 x 3/8inch Machine Screw, #6-32 Insert Nut

Precautions
*Screws may bottom out. Please be careful not to overtighten.
*When installing, securely fasten the product using commercially available threadlocker adhesive, etc., as appropriate, depending on the usage environment and installation location.
*Always select the ball size with the appropriate load capacity for your intended use. Also, to prevent accidental detachment, use a safety strap or similar device for the mounted equipment.
*Due to the manufacturing process, some uneven coloring, peeling, or burrs may be observed on the product's surface coating.

■Image Precautions
*Images are for illustration purposes only. They may include products of different sizes or colors. Product design and specifications are subject to change without notice. Please be aware of this.
