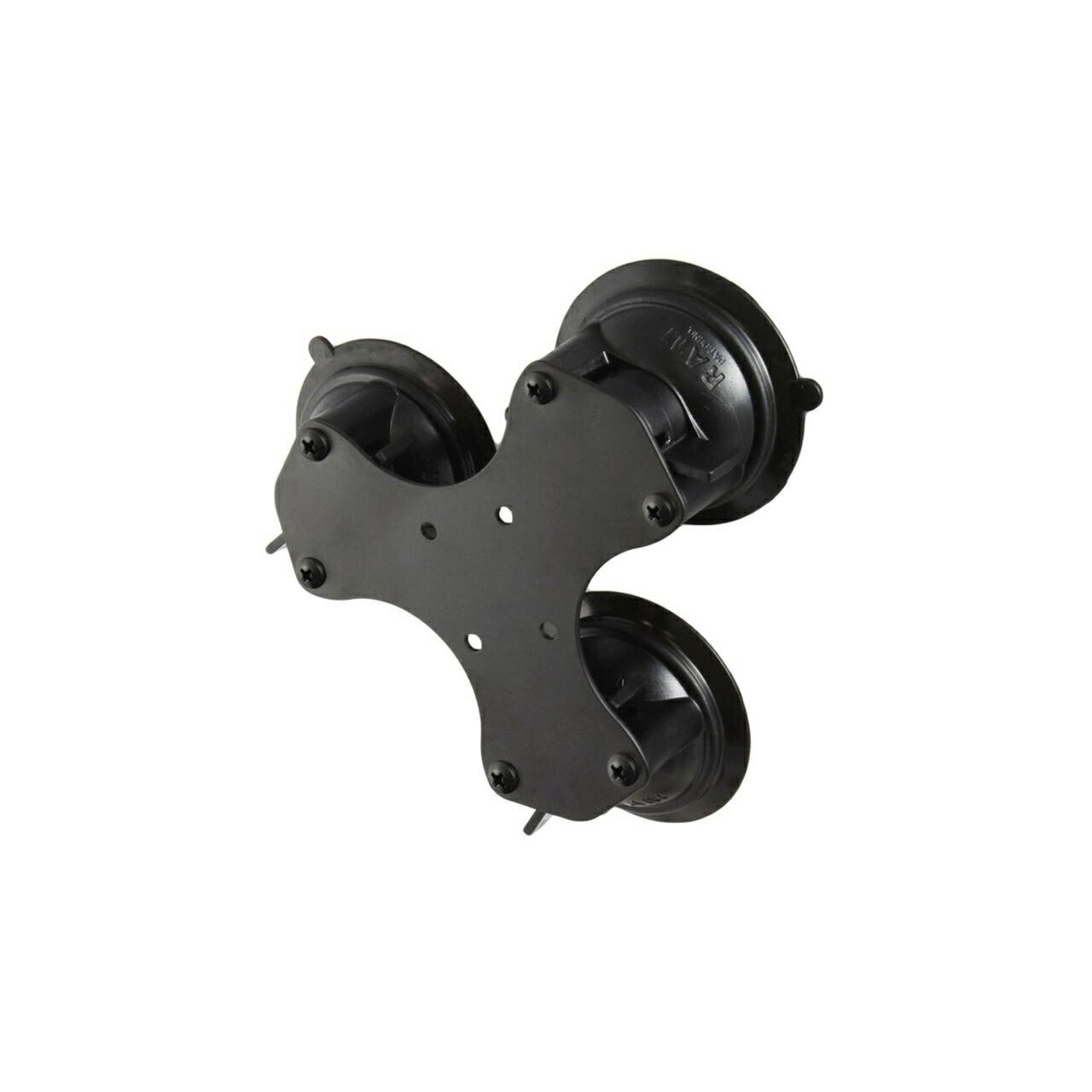

Triple Suction Base, Ball-less, Black, 1 pc.

【RAM MOUNTS RAM-333-224-1U Triple Suction Base, Ball Not Included, Black, 1 Piece】
■Product Description
This suction cup base part provides powerful adhesion to smooth, flat surfaces such as glass and acrylic.
It is ideal for mounting on the inside windows of work vehicles such as cars and tractors.
Three 83.8mm diameter suction cups are connected to withstand larger devices, and each can be easily attached and detached by operating the lever on the main body. By attaching a ball joint separately, you can combine it with other RAM Mounts parts to freely construct your mount.

Specifications
Color: Black
●Product Dimensions
Suction cup diameter: φ83.8mm
Overall width: 201.9mm
Size: Ball sold separately
Weight [grams]: 431g
Material [Material]: Powder coated steel, High strength composite
Special Notes: Ball part is not included (an appropriate ball-sized AMPS hole pattern joint is required separately depending on the application).
Product Category: Triple Suction
Required products: Part numbers: P055-1351, P075-7677, P110-0725
Quantity: 1 piece

Set Contents/Accessories
#8-32 x 3/4inch pan head screws, #8-32 Nylock nuts

Precautions
*This product is not intended for outdoor use, such as mounting on a moving vehicle. Sufficient securing force may not be achieved in high-temperature environments exposed to direct sunlight, or due to the material, surface treatment, or dirt on the mounting location.
*When installing, securely fix it using commercially available threadlocker adhesive as appropriate, depending on the usage environment and mounting location.
*Always select a ball size with a load capacity that matches your intended use. Also, to prevent accidental detachment, use a strap or other fall prevention device for the attached equipment.
*Due to the manufacturing process, some color unevenness, peeling, or burrs may be observed in the coating film on the product surface.

■Image Notes
*Images are for illustration purposes only. Products of different sizes and colors are included. Product design and specifications are subject to change without notice. Please be aware.
