Anti-vibration Cradle Holder (M) & U-Bolt Clamp Base (Short Arm) for φ12.7-31.75mm [Vibe-Safe] Black 1-inch Ball

【RAM MOUNTS RAM-B-149Z-A-PD4-462 Anti-Vibration Cradle Holder (M) & U-Bolt Clamp Base φ12.7-31.75mm compatible 【Vibe-Safe】 Black 1 inch ball】
■Product Description

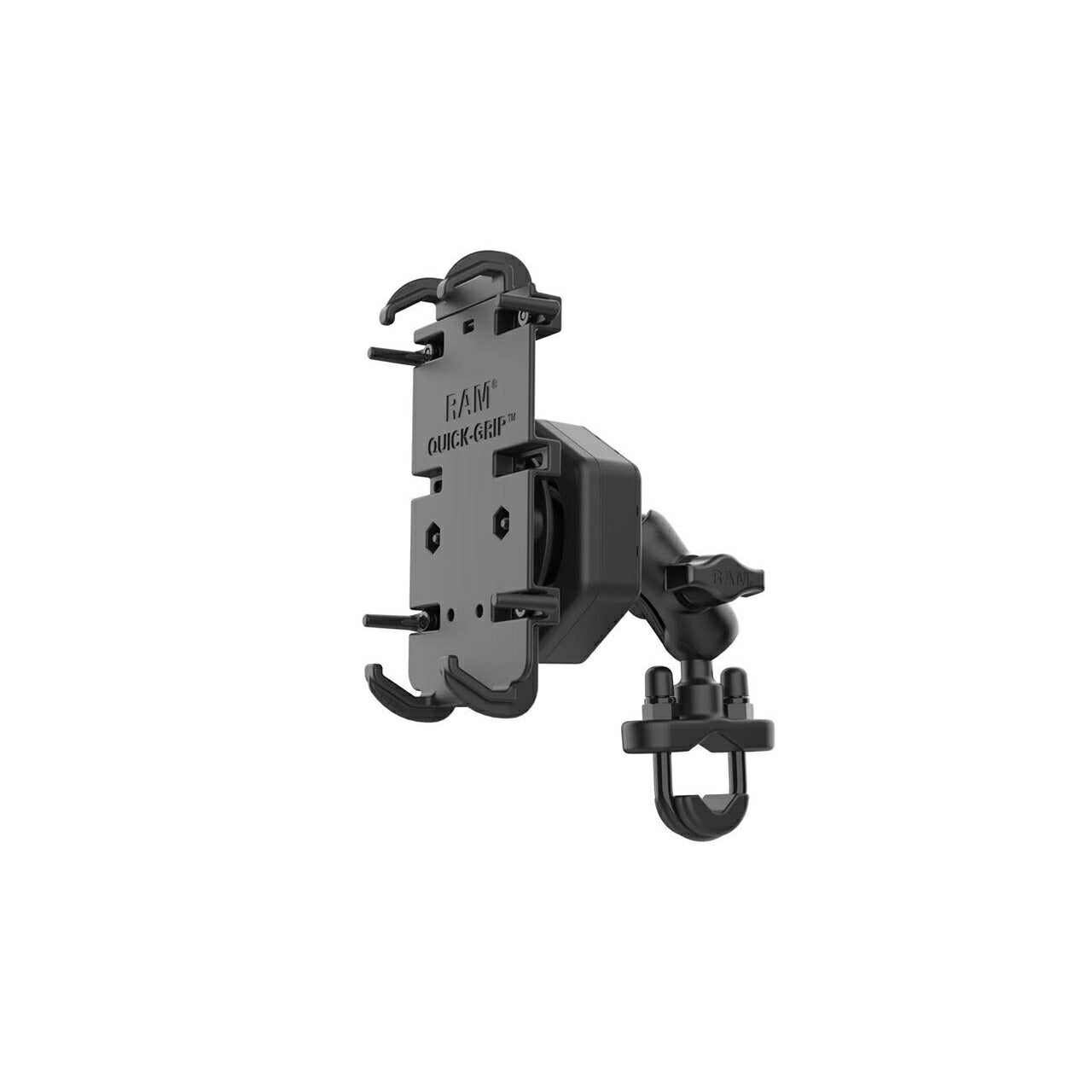

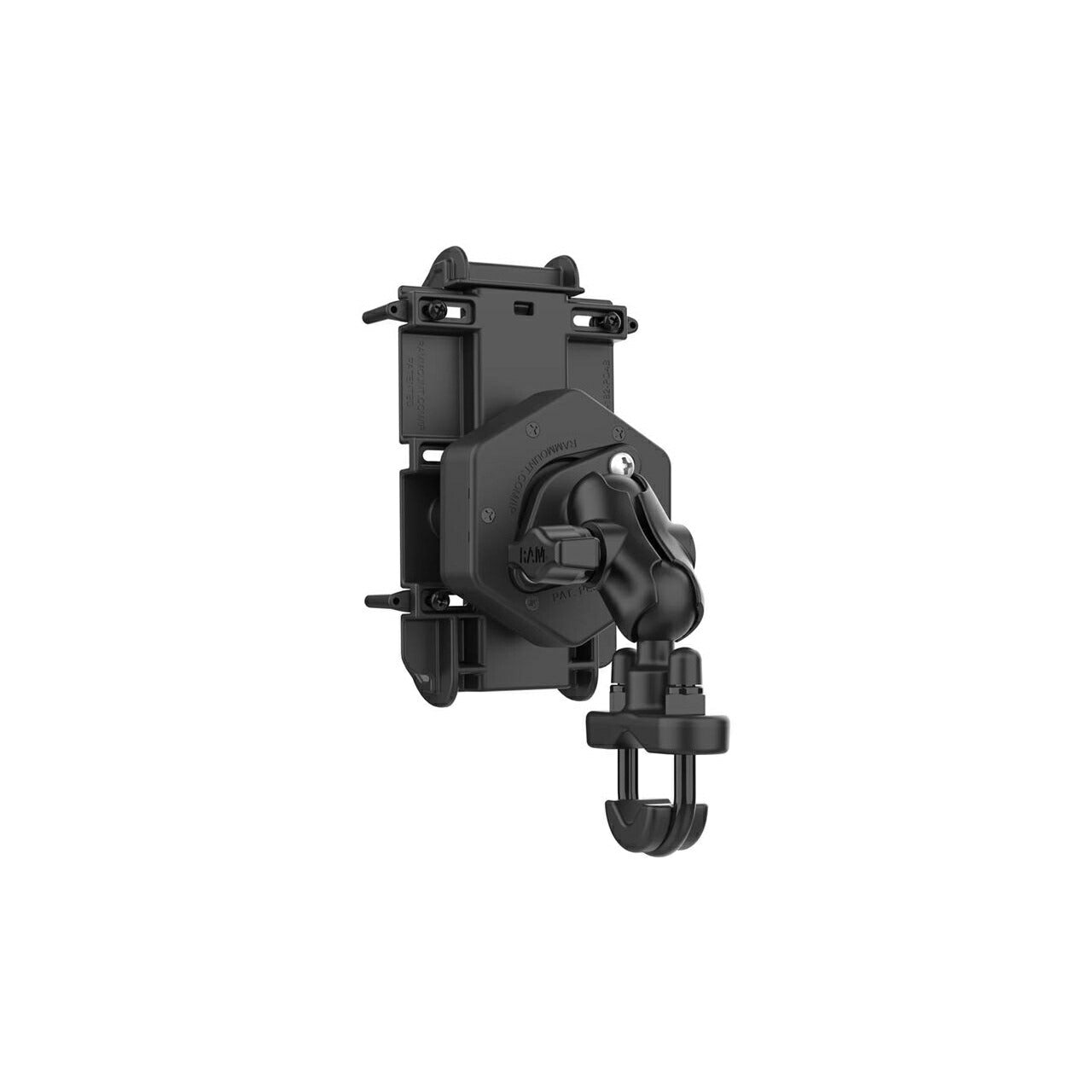

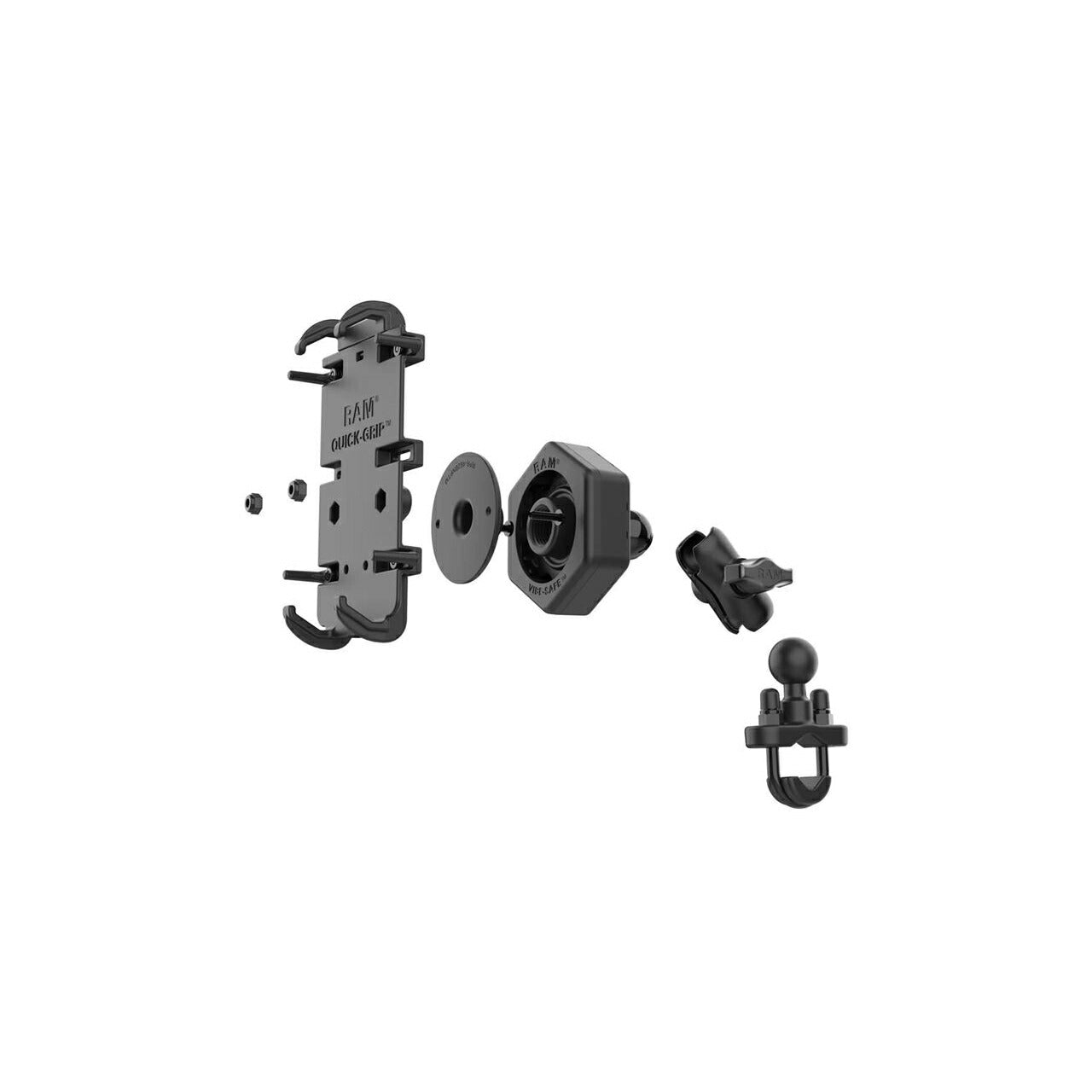

A mount set combining a cradle-type smartphone holder with the [Vibe-Safe] vibration reduction mechanism, a short aluminum arm, and a U-bolt clamp base with galvanized bolts.
This cradle-type smartphone holder incorporates the "Vibe-Safe" anti-vibration module, which reduces damage to smartphones caused by vibration. It is compatible with recent smartphones that feature larger screens.
The anti-vibration module and holder are connected by NPT threads, allowing for free adjustment between portrait and landscape orientation while the smartphone is mounted.

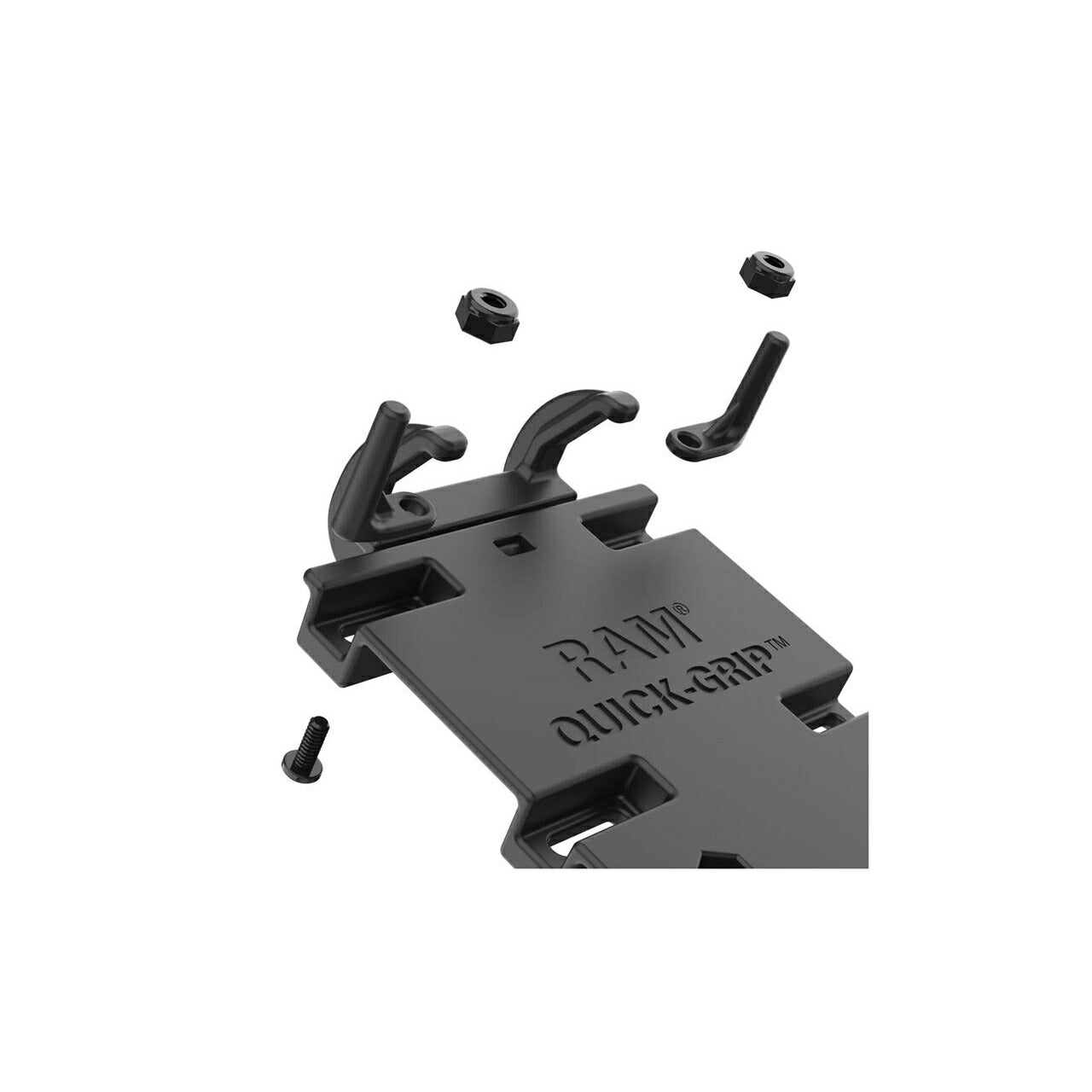

Four adjustable side supports are included to prevent the smartphone from falling out when in landscape orientation. Since the phone is held from the top and bottom, it does not interfere with operating interface elements such as power/volume buttons, and can be easily attached and detached with one hand.
The U-bolt clamp base can be attached to a wide range of pipes from φ12.7 to 31.75mm, making it ideal for mounting on motorcycle handlebars. It comes with two types of U-bolts of different sizes and nylon nuts with an anti-loosening function, allowing for easy and secure fastening.
"Vibe-Safe"
Within a robust 35mm thick hexagonal module, nine highly elastic anti-vibration rubber mounts are strategically placed.
This reduces the damage caused to smartphones by vibrations generated from motorcycles, from idling to high RPMs, and minimizes the risk of malfunctions.

Specifications
Color: Black
Size: 1 inch ball
●Compatible holder sizes
Length: 146-184.1mm
Width: 66.6-92mm
Thickness: Max 18.2mm
●Compatible mounting locations
・22.2mm handlebars (metric bars)
・25.4mm handlebars (inch bars)
・28.6mm handlebars (fat bars)
Other general round pipes
Weight [grams]: 513g
Material [materials]: High strength aluminum (Marine-grade aluminum), High strength composite, Stainless steel
Special Notes: This product conforms to the B size (1 inch ball) standard. It is not compatible with other ball sizes.

Compatible Models: 【Apple】iPhone6s Plus iPhone7 Plus iPhone8 Plus iPhone Xr iPhoneXs Max iPhone11 iPhone11 Pro Max iPhone12 iPhone12 Pro iPhone 12 Pro Max iPhone13 iPhone13 Pro iPhone13 Pro Max iPhone14 iPhone14 Plus iPhone14 Pro iPhone14 Pro Max iPhone 15 iPhone 15 Plus iPhone 15 Pro iPhone 15 Pro Max【Blackberry】 DTEK 50 DTEK 60 Evolve X KEYone 【Blackview】 BV9900 BV9900 Pro 【Cat】 S42 S62 S62 Pro 【Google】 Pixel XL Pixel 2 XL Pixel 3 XL Pixel 3a Pixel 3a XL Pixel 4 Pixel 4 XL Pixel 6 Pixel 6 Pro Pixel 7 Pixel 7 Pro Pixel 8 Pixel 8 Pro【HTC】 Bolt U Ultra U11 U11 life 【Huawei】 Mate 20 Pro Mate 20 X P30 Pro 【Kyocera】 DuraSport 5G 【LG】 Fiesta 2 LTE Fiesta LTE G5 G5 Silver G (and others)
Quantity: 1 set

Set Contents/Accessories
1/4"-20 U-bolt (for φ12.7-25.4mm) x1, 1/4"-20 U-bolt (for φ25.4-31.75mm) x1, 1/4"-20 Nylon nut x2, U-bolt rubber caps x2, U-bolt spacer x1

Precautions
*The vibration reduction effect provided by this product does not completely protect your smartphone from damage. Even when using this product, malfunctions or damage to your smartphone's functions may occur due to various external factors.
*A separate inch tool (7/16inch wrench) is required to attach the U-clamp.
*When installing, securely fasten the product using commercially available thread locker or similar, as appropriate for the usage environment and installation location.
*Always select a ball size with a load capacity suitable for your intended use. Also, to prevent accidental drops, use a strap or similar anti-drop device for mounted equipment.
*Due to the manufacturing process, some color unevenness, peeling, or burrs may be visible on the surface coating of the product.

■Image Notes
*Images are for illustration purposes only. They may include products of different sizes or colors. Product design and specifications are subject to change without notice. Please understand.
