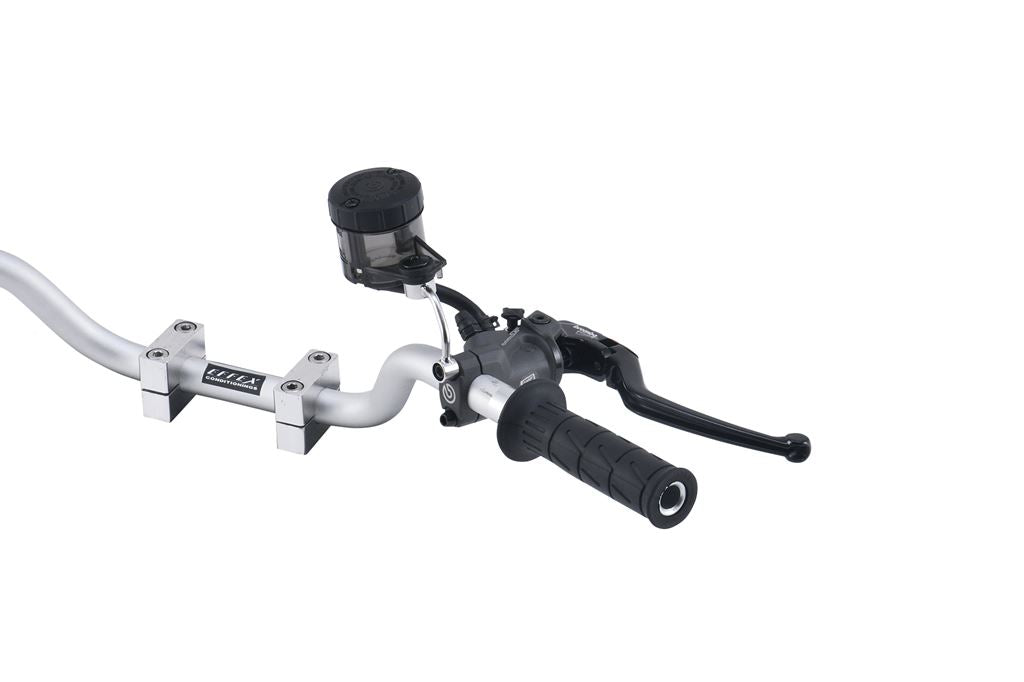

Oil Tank Stay Brake for S50 Tank - Handlebar/Clip-on Handlebar Common - Polished
Oil Tank Stay Brake for S50 Tank - Handlebar/Clip-on Handlebar Common - Polished
SKU:plot-bps001sp
Regular price
¥5,867
Regular price
¥5,720
Sale price
¥5,867
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Orders placed by 2 PM will be shipped the same day.
配送方法/参考送料:Shipping via Mail Service: ¥330
59
points to be awarded
Couldn't load pickup availability
【PLOT Brembo BPS001SP Oil Tank Stay, Brake, for S50 Tank, for Bar/Clip-on Handlebars, Polished, Custom Parts PLOT】
■This oil tank stay is ideal for those who already own a Brembo oil tank, oil hose, and hose clips.
We paid close attention to the appearance, and all bolts, washers, and nuts are black.
Exclusively for Brembo S50 oil tanks. (Compatibility with other oil tanks and tanks from other manufacturers is unconfirmed.)
Installation requires a separate S50 oil tank, oil hose, and hose clip.
Can be installed with RCS Corsa Corta/RCS brake master/radial master cylinders.
■Specifications
Type: Common for bar handlebars/clip-on handlebars
Color: Tank Stay/Polished
Material: Stainless steel
Finish (Surface treatment): Polished
Compatible Master Cylinders: Brembo RCS Master Cylinders
110.A263.10/110.A263.20/110.A263.30/110.A263.40/110.A263.45
Corsa Corta Master Cylinders
110.C740.10/110.C740.30/110.C740.40
Forged Radial Master Cylinders
110.4760.60/110.4760.80/110.4760.85/110.4760.87
Racing Radial Master Cylinders
XR0.11.31/XR0.11.70/XR0.11.71/XR0.11.B0
■Set Contents
Tank stay
Stepped aluminum bolt M6
Rubber bushing
Cap bolt M6 x 30
Collar
Flat washer
Instruction manual
■Notes
*This product only includes the stay and bolts.
*For installation, a separate Brembo S50 type oil tank, oil hose, and hose clips are required.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
