Easy Fit Bar High, Black, 22.2φ CB400SF/SB

[EFFEX EBH0005K Easy Fit Bar High Black 22.2φ CB400SF/SB Handle EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible Models
HONDA
CB400SF Revo[NC42] (2014-2020)
CB400SB Revo[NC42] (2014-2019)

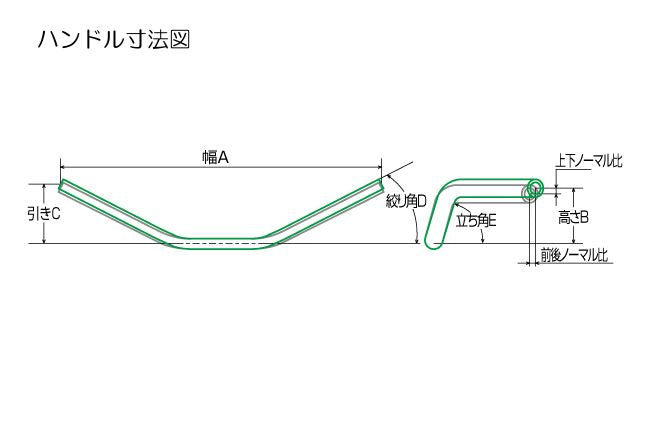

■Specifications
Type: High
Color: Black
Handlebar Diameter: 22.2φ (Outer diameter 22.2mm / Inner diameter 14mm)
Width: 669mm
Height: 86mm
Pullback: 145mm
Rise Angle: 57°
Bend Angle: 22°
Material: Aluminum
Weight: 530g
Hole Processing: Switch holes pre-drilled
Processing (Yes/No): No
Relocation: 21mm up / 23mm back
Brake Hose Compatibility: △
Throttle Cable Compatibility: ○
Clutch Cable (Hose) Compatibility: ○
■Notes
*For non-ABS models, throttle and clutch can use stock parts. Brake hose needs to be replaced with a 30mm longer one.
*For ABS models, replacement with a 30mm longer brake hose is recommended.
*Stock handlebar bar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the vehicle model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
