Easy Fit Handlebar High, Silver, 22.2φ, CB400SF/SB

【EFFEX EBH0005S Easy Fit Bar High Silver 22.2φ CB400SF/SB Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
HONDA
CB400SF Revo [NC42] (14-20)
CB400SB Revo [NC42] (14-19)

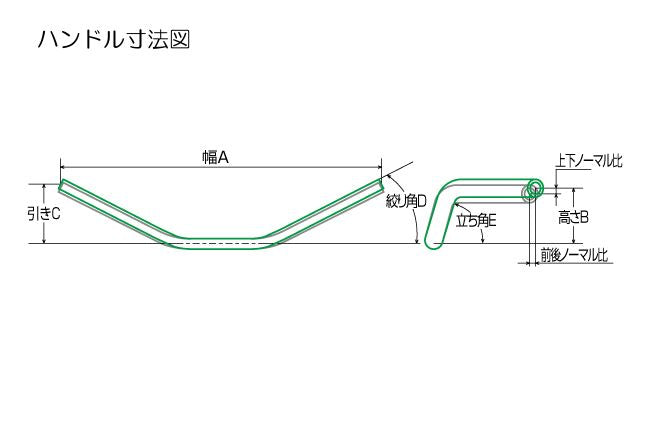

■Specifications
Type: High
Color: Silver
Handlebar diameter: 22.2φ (outer diameter 22.2mm / inner diameter 14mm)
Width: 669mm
Height: 86mm
Depth (pullback): 145mm
Rise angle: 57°
Bend angle: 22°
Material: Aluminum
Weight: 530g
Hole processing: Switch hole processed
Processing (yes/no): No
Movement: 21mm up / 23mm back
Brake hose compatibility: △
Throttle cable compatibility: ○
Clutch cable (hose) compatibility: ○
■Notes
*For non-ABS models, the throttle and clutch can be kept as stock. The brake hose needs to be replaced with a 30mm longer one.
*For ABS models, replacement with a 30mm longer one is recommended.
*Stock handlebar bar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
