Easy Fit Bar High Black 22.2mm CB1300SF/SP

[EFFEX EBH0009K Easy Fit Bar High Black 22.2φ CB1300SF/SP Handlebar EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible Models
HONDA
CB1300SF[SC54] (14-20 years / SP models also)

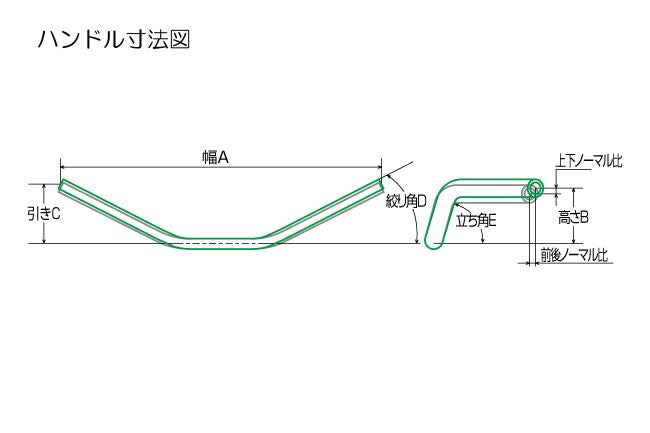

■Specifications
Type: High
Color: Black
Handlebar Diameter: 22.2φ (Outer diameter 22.2mm / Inner diameter 14mm)
Width: 698mm
Height: 110mm
Depth (Pullback): 156mm
Rise Angle: 55°
Clamp Angle: 24°
Material: Aluminum
Weight: 580g
Hole Processing: Switch holes pre-drilled
Processing (Yes/No): No
Movement: 27mm up / 29mm back
Brake Hose Compatibility: △
Throttle Cable Compatibility: ○
Clutch Cable (Hose) Compatibility: △
■Notes
*Brake hose and clutch hose routing modification (clamp release) is required.
*The genuine handlebar end cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
