Easy Fit Bar High, Black, 22.2φ CB400SF/SB

【EFFEX EBH098K Easy Fit Bar High Black 22.2φ CB400SF/SB Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible Models
HONDA
CB400SB [NC39] (05-07)
CB400SF [NC39] (99-07)
CB400SF Revo [NC42] (08-13)
CB400SB Revo [NC42] (08-13)

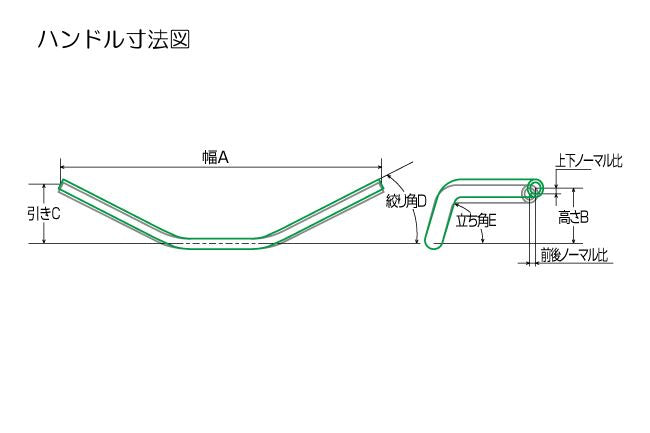

■Specifications
Type: High
Color: Black
Handlebar Diameter: 22.2φ (Outer Diameter 22.2mm / Inner Diameter 14mm)
Width: 638mm
Height: 79mm
Pullback: 140mm
Up Sweep: 68°
Back Sweep: 28°
Material: Aluminum
Weight: 550g
Hole Processing: Switch hole processed
Processing (Yes/No): No
Movement: 21mm up / 21mm back
Brake Hose Compatibility: ×
Throttle Cable Compatibility: ○
Clutch Cable (Hose) Compatibility: ○
■Notes
*Compatible with VTEC/Spec2/Spec3/Revo. Not compatible with 08-13 ABS models as no B/H setting is available.
*Brake hose needs to be replaced with a 30mm longer one. Throttle cable and clutch cable can use stock ones.
*Bar ends are not included with the product. Separate handlebar ends for 14φ inner diameter are required. (Stock bar ends cannot be used)
*Depending on the model, minimal changes to cable routing may be necessary.
*Separate cable replacement may be required.
*Depending on the model, there may not be switch holes.
*Depending on the model, the overall width may differ from the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
