Easy Fit Handlebar High, Silver, 22.2φ, CB400SF/SB

【EFFEX EBH098S Easy Fit Bar High Silver 22.2φ CB400SF/SB Handlebar EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
HONDA
CB400SB [NC39] (2005-2007)
CB400SF [NC39] (1999-2007)
CB400SF Revo [NC42] (2008-2013)
CB400SB Revo [NC42] (2008-2013)

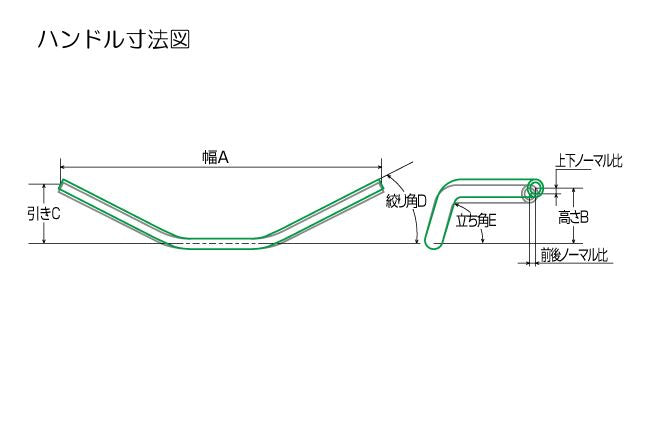

■Specifications
Type: High
Color: Silver
Handlebar diameter: 22.2φ (outer diameter 22.2mm / inner diameter 14mm)
Width: 638mm
Height: 79mm
Pullback: 140mm
Rise angle: 68°
Bend angle: 28°
Material: Aluminum
Weight: 550g
Drilling: Switch hole drilled
Processing (with/without): None
Movement: 21mm up / 21mm back
Brake hose compatibility: ×
Throttle cable compatibility: ○
Clutch cable (hose) compatibility: ○
■Notes
*Compatible with VTEC/Spec2/Spec3/Revo. Not compatible with 2008-2013 ABS models as no B/H setting is available.
*Brake hose needs to be replaced with a 30mm longer one. Normal throttle cable and clutch cable can be used.
*Bar ends are not included with the product. A separate handlebar end for an inner diameter of 14φ is required. (Genuine bar ends cannot be used)
*Depending on the model, minimal changes to cable routing may be required.
*Separate cable replacement may be required.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*The image is for illustration purposes only, and the design and specifications of the product may change without prior notice. Please understand.
