Easy Fit Bar High Black 22.2φ V-MAX

[EFFEX EBH201K Easy Fit Bar High Black 22.2φ V-MAX Handle EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
YAMAHA
V-MAX [1200] (84-06)

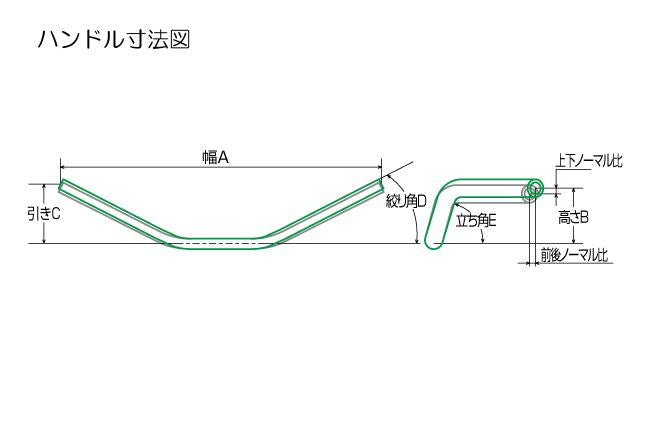

■Specifications
Type: High
Color: Black
Handlebar diameter: 22.2φ (outer diameter 22.2mm/inner diameter 14mm)
Width: 690mm
Height: 73mm
Depth (pullback): 164mm
Rise angle: 65°
Pullback angle: 32°
Material: Aluminum
Weight: 580g
Hole processing: No switch hole processing
Processing (yes/no): No
Displacement: 21mm up / 21mm back
Brake hose compatibility: 〇
Throttle cable compatibility: ○
Clutch cable (hose) compatibility: 〇
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*The genuine handlebar end cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*The handlebar has no switch hole processing. Hole processing is required for installation.
*Depending on the model, minor changes to cable routing may be required.
*Separate cable replacement may be required.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without prior notice. Please understand.
