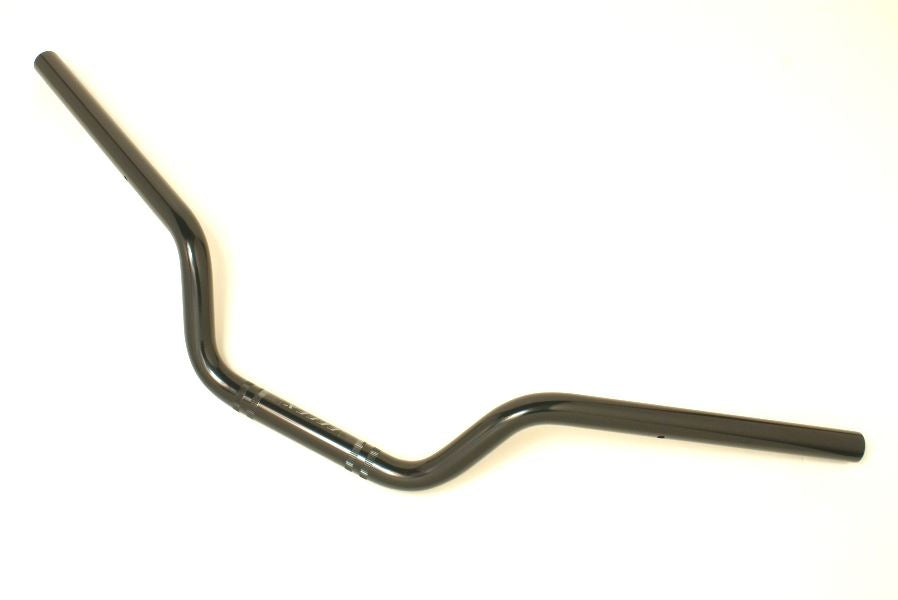

Easy Fit Bar High Black 22.2φ ZRX1200 DAEG

【EFFEX EBH730K Easy Fit Bar High Black 22.2φ ZRX1200 DAEG Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
Kawasaki
ZRX1200 DAEG (09-16)
■Specifications
Type: High
Color: Black

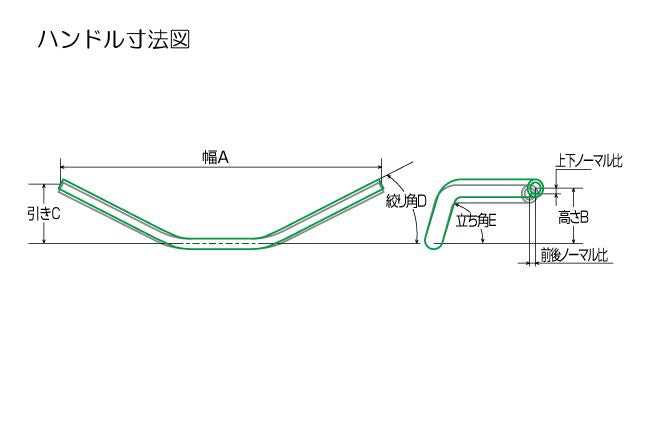

Handlebar diameter: 22.2φ (outer diameter 22.2mm / inner diameter 14mm)
Width: 690mm
Height: 77mm
Depth (pull): 148mm
Rise angle: 61°
Clamp angle: 26°
Material: Aluminum
Weight: 580g
Hole processing: Switch holes processed
Processing (with/without): None

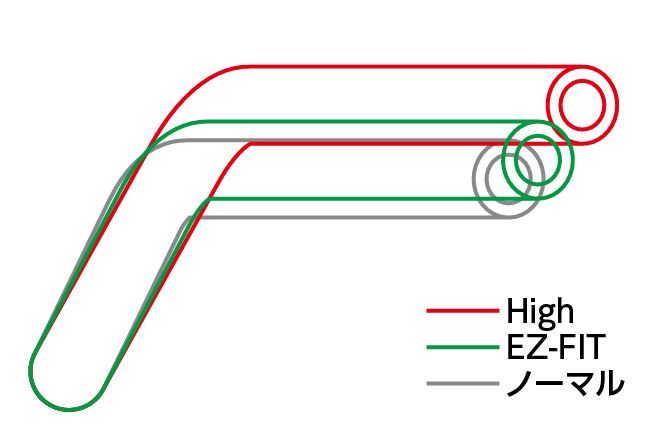

Movement: 21mm up / 21mm back
Brake hose compatibility: ×
Throttle cable compatibility: △
Clutch cable (hose) compatibility: △
■Notes
*The brake hose must be replaced with a 30mm longer one. The throttle cable and clutch cable can be used with the standard ones, but replacement is recommended.
*Bar ends are not included with the product. A handlebar bar end for inner diameter 14φ is required separately. (Genuine bar ends cannot be used)
*Depending on the model, minimal changes to cable routing may be required.
*Replacement of cables may be required separately.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
