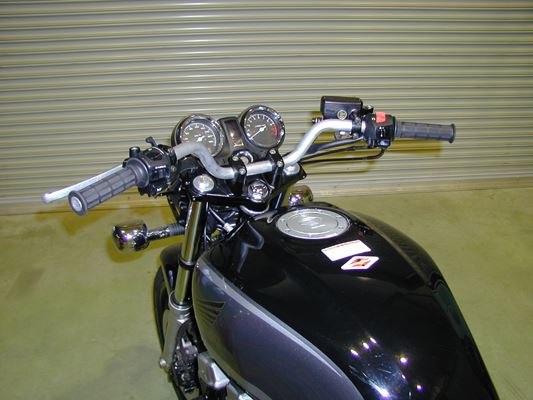

Easy Fit Bar Low Black 22.2φ CB750

[EFFEX EBL049K Easy-Fit Handlebars Low Black 22.2φ CB750 Handle EFFEX]
■EFFEX Easy-Fit Handlebars. Model-specific design.
■Compatible Models
HONDA
CB750 [RC42] (01-08)
■Specifications
Type: Low
Color: Black
Handlebar Diameter: 22.2φ (Outer diameter 22.2mm/Inner diameter 14mm)
Width: 700mm
Height: 78mm
Depth (Pullback): 133mm
Upward Angle: 81°
Backward Angle: 28°
Material: Aluminum
Weight: 580g
Hole Processing: Switch holes pre-drilled
Processing (Yes/No): No
Movement: 7mm down / 7mm forward
Brake Hose Compatibility: ○
Throttle Cable Compatibility: ○
Choke Cable Compatibility: ○
Clutch Cable (Hose) Compatibility: ○
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*Stock handlebar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minimal changes to cable routing may be required.
*Cable replacement may be necessary in some cases.
*Depending on the model, switch holes may not be present.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without prior notice. Thank you for your understanding.
