Easy Fit Bar Low, Black, 22.2φ for CB400SF

[EFFEX EBL080K Easy Fit Bar Low Black 22.2φ CB400SF Handlebar EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
HONDA
CB400SF [NC31] (verS/96-98)

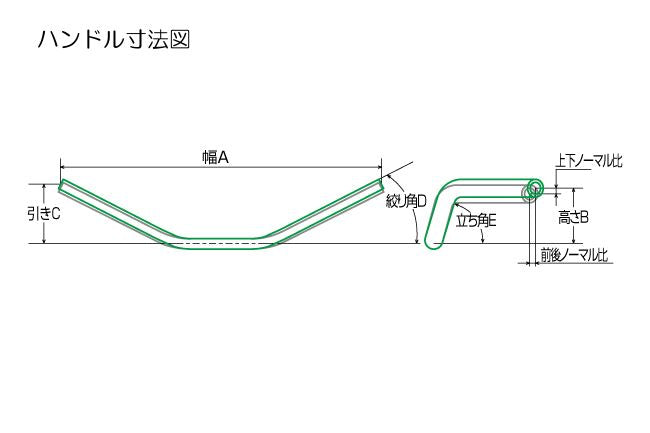

■Specifications
Type: Low
Color: Black
Handlebar diameter: 22.2φ (outer diameter 22.2mm/inner diameter 14mm)
Width: 635mm
Height: 28mm
Depth (pullback): 88mm
Rise angle: 90°
Bend angle: 24°
Material: Aluminum
Weight: 550g
Hole processing: Switch holes pre-drilled
Processing (yes/no): No
Displacement: 7mm down / 7mm forward
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Choke cable compatibility: ○
Clutch cable (hose) compatibility: 〇
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*The genuine handlebar ends cannot be used. Please use EFFEX Handlebar Weights (inner diameter φ14).
*Depending on the model, minimal rerouting of cables may be required.
*Replacement of cables may be necessary separately.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
