Easy Fit Handlebars Low Black 22.2φ CB400SF/SB

【EFFEX EBL098K Easy Fit Bar Low Black 22.2φ CB400SF/SB Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible Models
HONDA
CB400SB [NC39] (05-07)
CB400SF [NC39] (99-07)
CB400SF Revo [NC42] (08-13)
CB400SB Revo [NC42] (08-13)

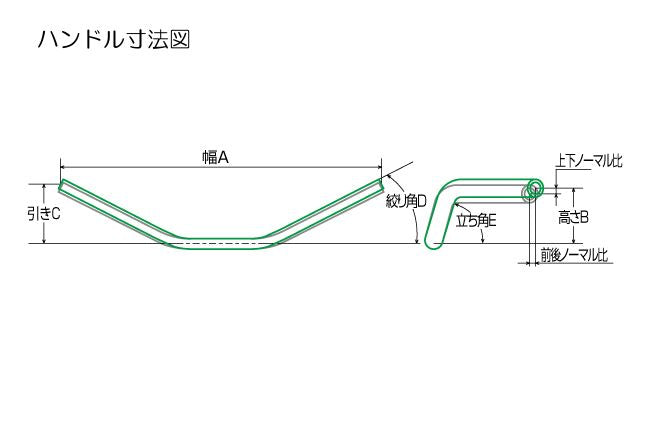

■Specifications
Type: Low
Color: Black
Handlebar Diameter: 22.2φ (Outer diameter 22.2mm / Inner diameter 14mm)
Width: 638mm
Height: 51mm
Pullback: 112mm
Rise Angle: 80°
Clamp Area Angle: 28°
Material: Aluminum
Weight: 550g
Hole Processing: Switch holes pre-drilled
Processing (Yes/No): No
Movement: 7mm down / 7mm forward
Brake Hose Compatibility: 〇
Throttle Cable Compatibility: 〇
Clutch Cable (Hose) Compatibility: 〇
■Notes
*Not compatible with 2014 models. Compatible with VTEC/Spec2/Spec3/Revo.
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*The genuine handlebar bar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minimal changes to cable routing may be necessary.
*Separate cable replacement may be required.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
