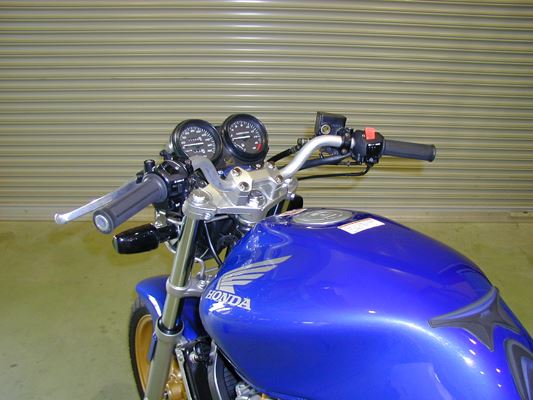

Easy Fit Bar Low Black 22.2φ Hornet 250

[EFFEX EBL155K Easy Fit Bar Low Black 22.2φ Hornet 250 Handle EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
HONDA
HORNET250 [Hornet 250] (03-07)
■Specifications
Type: Low
Color: Black
Handlebar diameter: 22.2φ (outer diameter 22.2mm / inner diameter 14mm)
Width: 670mm
Height: 73mm
Depth (pullback): 113mm
Rise angle: 86°
Pullback angle: 27°
Material: Aluminum
Weight: 550g
Hole processing: Switch hole processed
Processing (yes/no): No
Movement: 7mm down / 7mm forward
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Choke cable compatibility: ○
Clutch cable (hose) compatibility: 〇
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*Genuine handlebar bar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minimal changes to cable routing may be required.
*Separate cable replacement may be required.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
