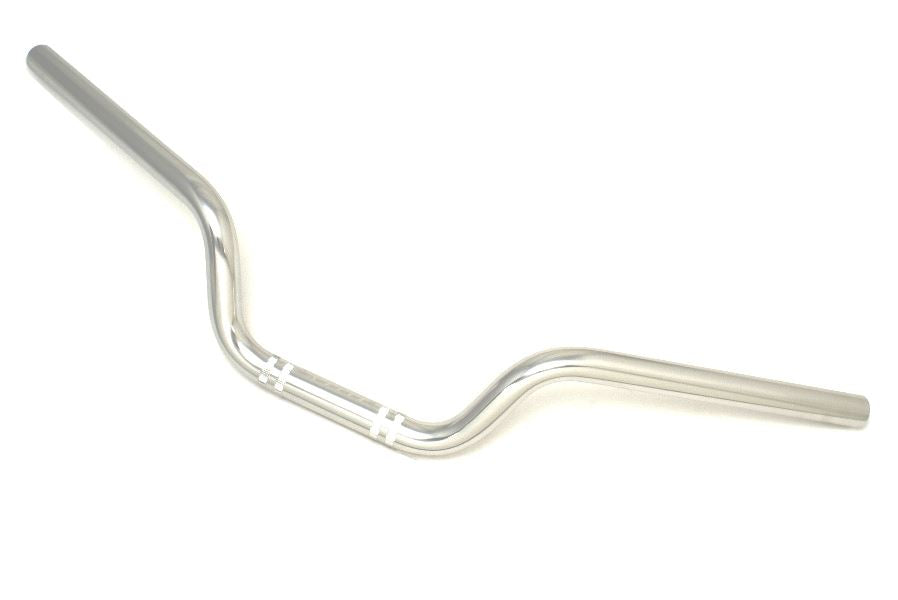

Easy-Fit Bar Low, Silver, 22.2φ, VTR250

[EFFEX EBL165S Easy Fit Bar Low Silver 22.2φ VTR250 Handle EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
HONDA
VTR250 (03-08)
VTR250 FI (09-17)
■Specifications
Type: Low
Color: Silver
Handlebar diameter: 22.2φ (Outer diameter 22.2mm / Inner diameter 14mm)
Width: 650mm
Height: 84mm
Depth (Pullback): 117mm
Rise angle: 79°
Bend angle: 25°
Material: Aluminum
Weight: 550g
Hole processing: Switch holes processed
Processing (Yes/No): No
Movement: 7mm down / 7mm forward
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Choke cable compatibility: ○
Clutch cable (hose) compatibility: 〇
■Notes
*VTR-F compatibility unconfirmed.
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*Genuine handlebar bar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minimal rerouting of cables may be necessary.
*Separate cable replacement may be required.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please understand.
