Easy Fit Bar Low Black 22.2mm V-MAX

【EFFEX EBL201K Easy Fit Bar Low Black 22.2φ V-MAX Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible Models
YAMAHA
V-MAX[1200] (84-06)
■Specifications
Type: Low
Color: Black

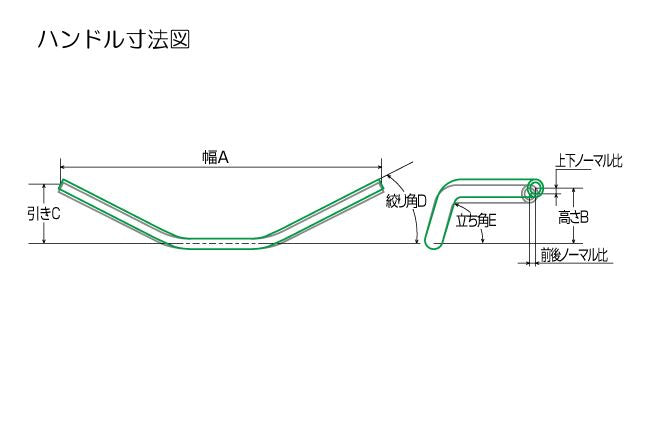

Handlebar Diameter: 22.2φ (Outer diameter 22.2mm / Inner diameter 14mm)
Width: 690mm
Height: 45mm
Depth (Pullback): 136mm
Upward Angle: 84°
Backsweep Angle: 32°
Material: Aluminum
Weight: 550g
Hole Processing: No switch hole processing
Processing (Yes/No): No

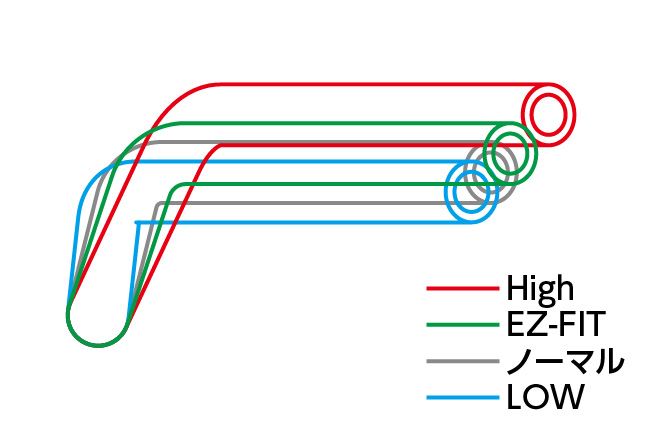

Movement: 7mm down / 7mm forward
Brake Hose Compatibility: 〇
Throttle Cable Compatibility: 〇
Clutch Cable (Hose) Compatibility: 〇
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*The handlebar does not have switch holes drilled. Hole drilling is required for installation.
*Genuine handlebar ends can no longer be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minimal changes to cable routing may be required.
*Separate cable replacement may be required.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without prior notice. Please be aware of this.
