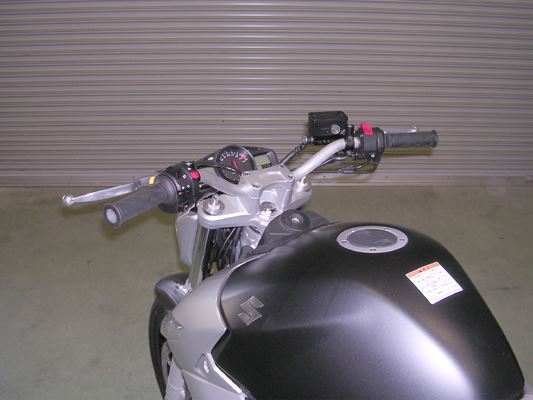

Easy Fit Bar Low Black 22.2φ GSR400

【EFFEX EBL522K Easy Fit Bar Low Black 22.2φ GSR400 Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
SUZUKI
GSR400 (06-13)
■Specifications
Type: Low
Color: Black
Handlebar diameter: 22.2φ (outer diameter 22.2mm / inner diameter 14mm)
Width: 697mm
Height: 60mm
Depth (pullback): 110mm
Rise angle: 66°
Pullback angle: 23°
Material: Aluminum
Weight: 540g
Hole processing: Switch holes processed
Processing (yes/no): No
Movement: 7mm down / 7mm forward
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Choke cable compatibility: ○
Clutch cable (hose) compatibility: 〇
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*The genuine handlebar end cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minimal rerouting of cables, etc., may be required.
*Separate cable replacement may be required.
*Depending on the model, there may be no switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
