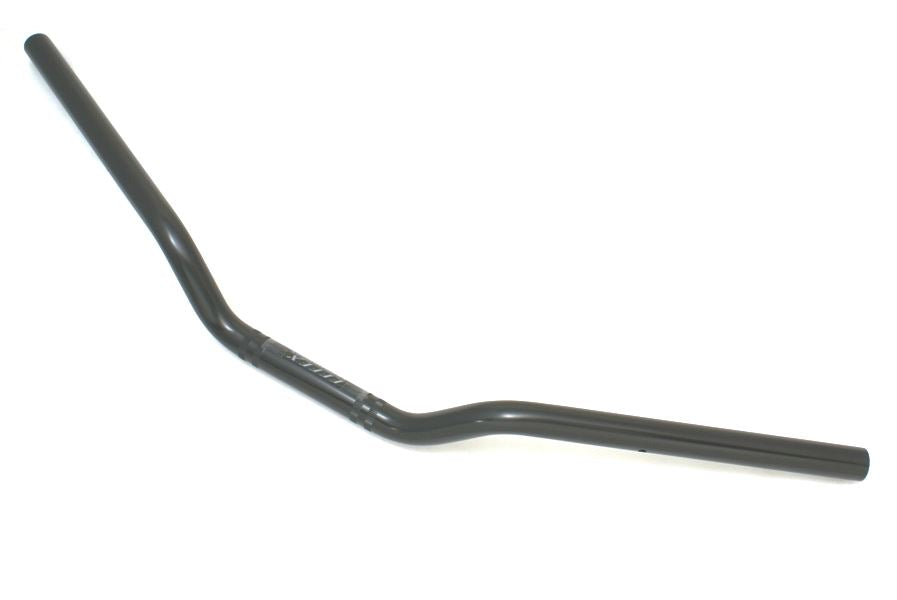

Easy Fit Bar Low Black 22.2φ ZRX1200 DAEG

【EFFEX EBL730K Easy Fit Bar Low Black 22.2φ ZRX1200 DAEG Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.
■Compatible models
Kawasaki
ZRX1200 DAEG (09-16)
■Specifications
Type: Low
Color: Black
Handlebar diameter: 22.2φ (outer diameter 22.2mm / inner diameter 14mm)
Width: 690mm
Height: 48mm
Depth (pullback): 119mm
Rise angle: 73°
Pullback angle: 26°
Material: Aluminum
Weight: 540g
Hole processing: Switch hole processed
Processing (yes/no): No
Movement: 7mm down / 7mm forward
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Choke cable compatibility: 〇
Clutch cable (hose) compatibility: 〇
■Notes
*Bar ends are not included with the product.
*Brake hoses and cables do not need to be replaced.
*The genuine handlebar bar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Depending on the model, minor changes to cable routing may be required.
*Separate cable replacement may be required.
*Depending on the model, there may not be switch holes.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware.
