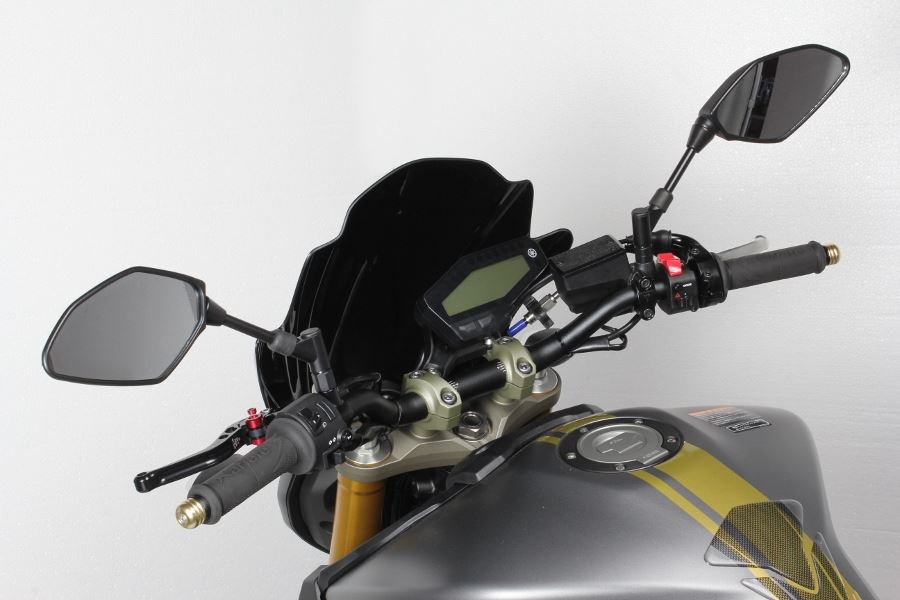

Easy Fit Handlebar Plus Black 28.6mm/22.2mm MT-09/SP

【EFFEX PBTF349K Easy Fit Bar Plus Black 28.6φ/22.2φ MT-09/SP Handle EFFEX】
■EFFEX Easy Fit Bar. Vehicle-specific design.

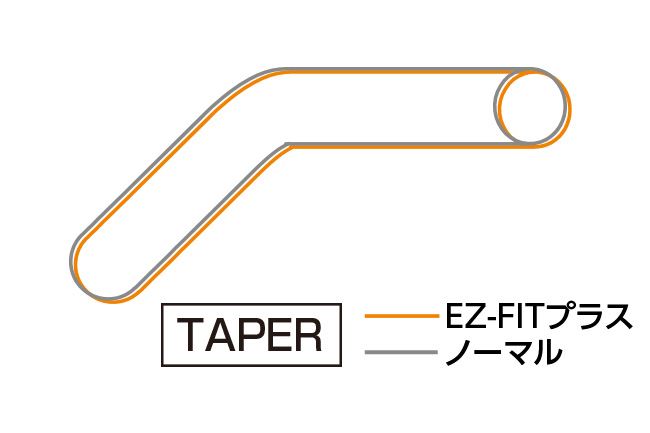

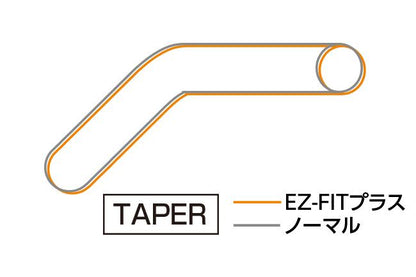

Tapered type.
Approximately 30mm narrower than stock, with a 2° pullback.
Height and pull are the same as stock. Inner diameter at the end is 14mm.
■Compatible models
YAMAHA
MT-09 (2014-2020)
MT-09SP (2018-2020)
■Specifications
Type: EZ-FIT Plus
Color: Black
Handlebar diameter: 28.6φ/22.2φ (Outer diameter 22.2mm/Inner diameter 14mm)
Width: 725mm
Height: 46mm
Depth (pullback): 124mm
Rise: 45°
Sweep angle: 20°
Material: Aluminum
Weight: 640g
Hole processing: Switch holes pre-drilled
Processing (yes/no): No
Movement: 1mm up / 8mm back
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Clutch cable (hose) compatibility: 〇
■Notes
*Brake hoses and cables do not need to be replaced.
*Genuine handlebar ends cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*Since the overall width will be 30mm narrower, depending on the length of the handlebar end installed, a structural modification may be required.
*Depending on the model, the overall width may differ from that stated on the vehicle inspection certificate.
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without prior notice. Please be aware.
