Easy Fit Bar Plus Black 28.6mm/22.2mm MT-09 Tracer

[Effex PBTF356K Easy Fit Bar Plus Black 28.6φ/22.2φ MT-09 Tracer Handle EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.

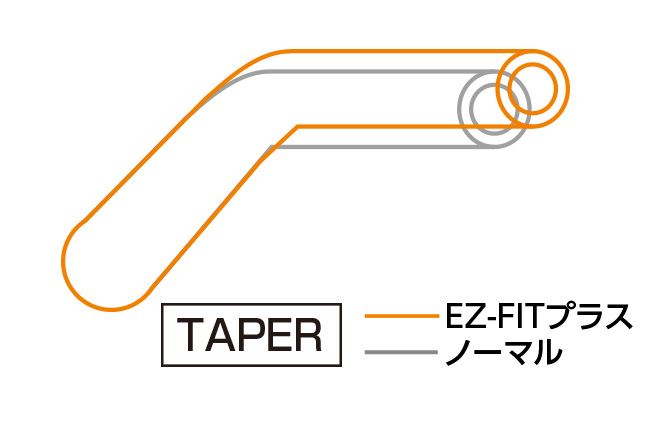

Tapered type.
Approximately 30mm narrower than stock (requires structural modification), 6mm higher, and 11mm (2° pull-back angle) further back.
The end section is threaded like the stock handle, allowing the installation of stock handguards.
■Compatible models
YAMAHA
MT-09 TRACER (2015-2017)
■Specifications
Type: EZ-FIT Plus
Color: Black

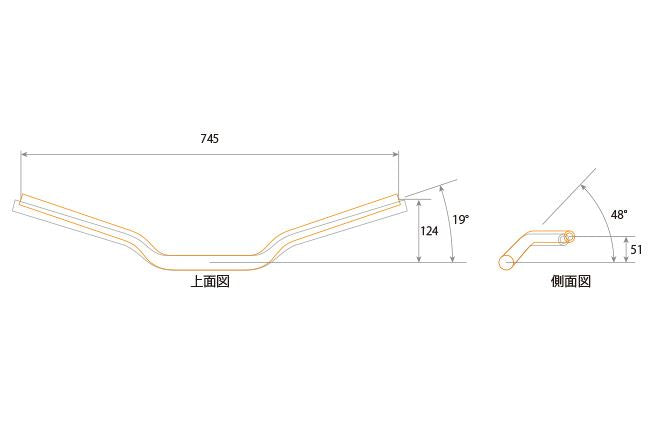

Handlebar diameter: 28.6φ/22.2φ (Outer diameter 22.2mm/Inner diameter 14mm)
Width: 745mm
Height: 51mm
Depth (pull-back): 124mm
Rise angle: 48°
Pull-back angle: 19°
Material: Aluminum
Weight: 640g
Hole processing: Switch holes pre-drilled
Processing (Yes/No): No
Movement: 6mm up / 11mm back
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Clutch cable (hose) compatibility: 〇
■Notes
*Brake hoses and cables do not need to be replaced.
*EFFEX handlebar weights cannot be used.
*The handlebar end section has the same specifications as the stock handlebar, allowing the installation of stock handguards. However, a structural modification may be required due to the 30mm narrower overall width.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
