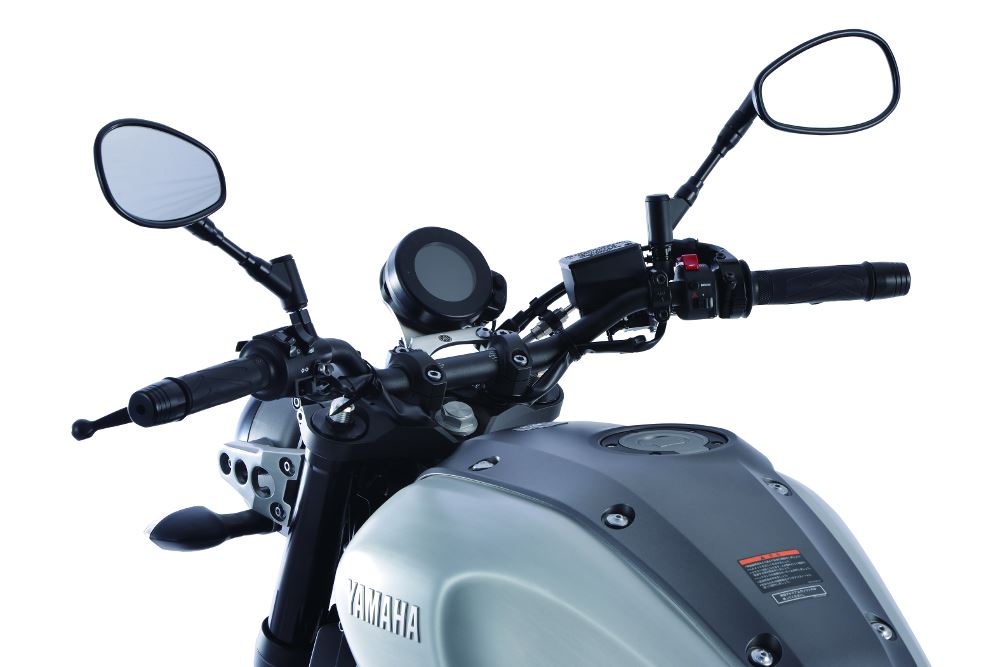

Easy Fit Bar Plus Black 28.6mm/22.2mm XSR900

[EFFEX PBTF361K Easy Fit Bar Plus Black 28.6φ/22.2φ XSR900 Handlebar EFFEX]
■EFFEX Easy Fit Bar. Vehicle-specific design.
Tapered type.

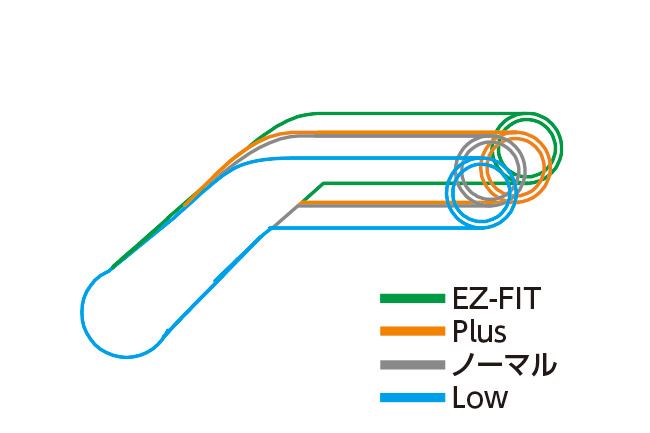

Approximately 30mm narrower than stock, with a 2° pullback.
Height and pull are the same as stock. End inner diameter 14mm.
■Compatible models
YAMAHA
XSR900 (2016-2020)
■Specifications
Type: EZ-FIT Plus
Color: Black
Handlebar diameter: 28.6φ/22.2φ (Outer diameter 22.2mm/Inner diameter 14mm)
Width: 725mm
Height: 46mm
Depth (pullback): 124mm
Rise angle: 45°
Bend angle: 20°
Material: Aluminum
Weight: 640g
Hole processing: Switch holes pre-drilled
Processing (yes/no): No
Movement: 1mm up / 8mm back
Brake hose compatibility: 〇
Throttle cable compatibility: 〇
Clutch cable (hose) compatibility: 〇
■Notes
*No need to replace brake hoses or cables.
*The genuine handlebar end cannot be used. Please use EFFEX handlebar weights (inner diameter φ14).
*The overall width will be 30mm narrower, so depending on the length of the handlebar end installed, structural modifications may be required.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
