Lowdown COMP Kit 20mm Drop C-Type Silver CBR250RR

【EFFEX PHA0030D-SET Lowdown COMP Kit, 20mm Drop, U-shaped Type, Silver CBR250RR EFFEX】
■Set product number for the lowdown kit (PHA0030D) and short side stand (PHS0030).
The lowdown kit is a U-shaped type with built-in bearings.
No adjustment function. Seat height is lowered by 20mm.
■Compatible models
HONDA
CBR250RR[MC51] (2017-2019 / 2023)
■Specifications
Type: U-shaped type (with built-in bearings)
Color: Lowdown/Silver, Short Side Stand/Black
Material: Lowdown/Steel, Short Side Stand/Steel
Finish (surface treatment): Zinc plating (white)
Replacement method: Link rod replacement
Drop amount: -20mm
■Set contents
Lowdown link rod
Short side stand
EFFEX logo sticker
Instruction manual
■Precautions
*Compatibility for 2020-2022 models is unconfirmed due to differences in genuine part numbers.

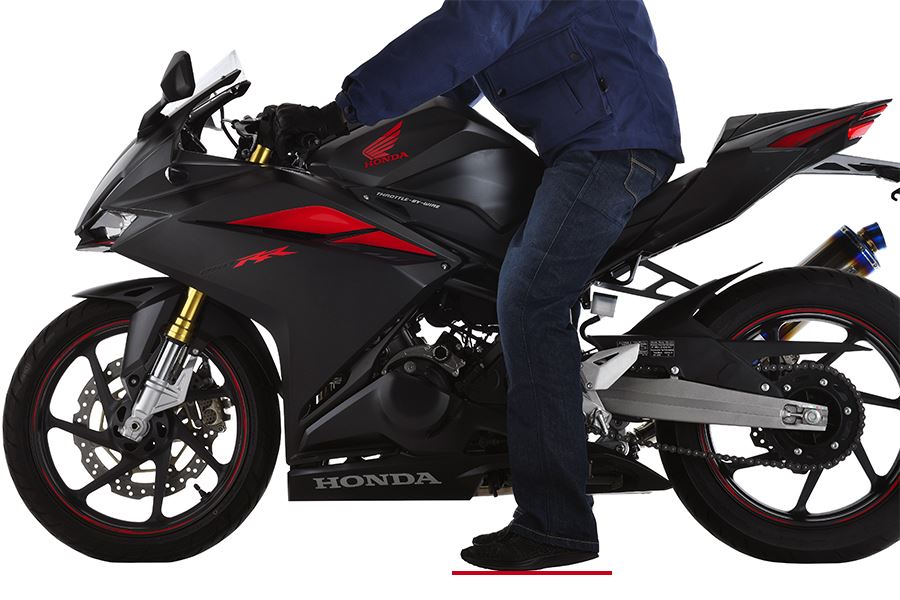

*Seat height is measured on the vertical line passing through the seat sitting position.
*Values may vary slightly depending on vehicle condition. Please consider them as a guide.
*By lowering the vehicle, parking with the standard side stand will result in an increased lean angle of the vehicle. Please install an EFFEX short side stand in conjunction.
*Do not use on vehicles other than the compatible models or model years.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
