Lowering COMP Kit 18mm Lowering U-Type Silver XSR700 MT-07

[EFFEX PHA352D-SET Lowdown COMP Kit 18mm Down U-shaped Type Silver XSR700 MT-07 EFFEX]
■Set part number for the lowdown kit (PHA352D) and short side stand (PHS352B).
The lowdown kit is a U-shaped type with built-in bearings.
No adjustment function. Seat height lowered by 18mm.
■Compatible models
YAMAHA
XSR700 (18-22 model years)
MT-07 (14-22 model years)
■Specifications
Type: U-shaped type (with built-in bearings)
Color: Lowdown/Silver, Short Side Stand/Black
Material: Lowdown/Steel, Short Side Stand/Steel
Finish (surface treatment): Zinc plating (white)
Replacement method: Link rod replacement
Lowering amount: -18mm
■Set contents
Lowdown link rod
Short side stand
EFFEX logo sticker
Instruction manual
■Notes
*Installation requires removal and reinstallation of the swingarm.
*Lowering the vehicle may cause the vehicle to be more upright when parked with the stock side stand. Please install the EFFEX short side stand together with the kit.
*Do not use on vehicles other than the compatible models or model years.

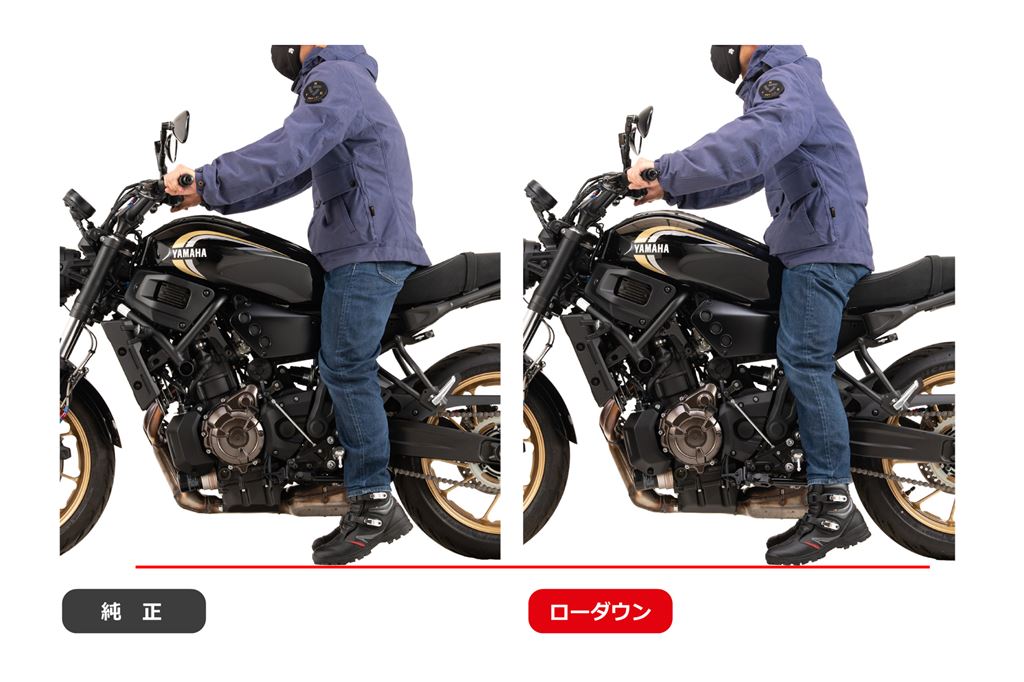

*Seat height is measured along a vertical line passing through the seating position.
*Rear height is measured along a vertical line passing through the rear axle.
*Numerical values may vary slightly depending on vehicle condition. Please consider them as a guide.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
