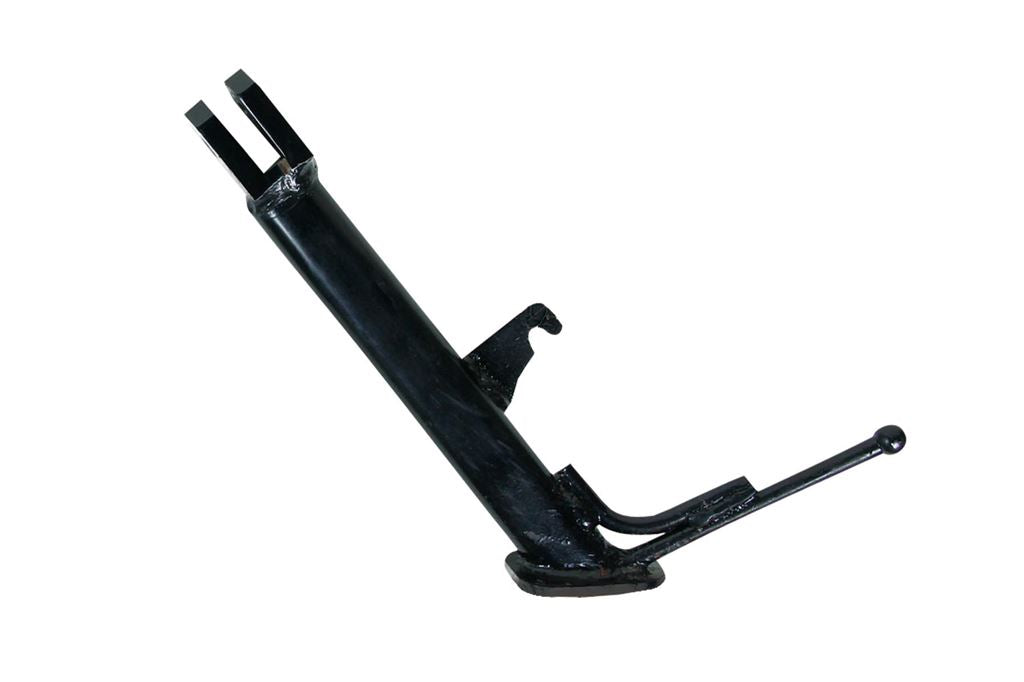

Short Side Stand Short Type Black 400X CBR400R CB400F

【EFFEX PHS196A Short Side Stand, Short Type, Black for 400X, CBR400R, CB400F, for Lowering】
■ Corrects the vehicle's overly upright stance caused by lowering.
If a lowering kit is installed with the stock side stand, the side stand becomes too long relative to the distance between the vehicle and the ground, causing the parked vehicle to lean more upright compared to its stock state.
The short side stand corrects this to an appropriate lean angle.
We recommend installing it simultaneously with a lowering kit to prevent unexpected falls when parked.
■ Compatible models
HONDA
400X[NC47] (2013-2018)
CBR400R[NC47] (2013-2018)
CB400F[NC47] (2013-2015)
■ Specifications
Type: Short type
Color: Black
Material: Steel
Finish (surface treatment): Cationic coating
Compatibility: Short setting exclusively for PHA196D
■ Set contents
Short side stand
EFFEX logo sticker
Instruction manual
■ Precautions
*The appropriate lean angle is set based on the stock angle.
*The short side stand is designed for lowered vehicles. It cannot be used on vehicles with normal or higher ride height.
*Images are for illustration purposes, and the design and specifications of the products shown may change without notice. Please understand.
