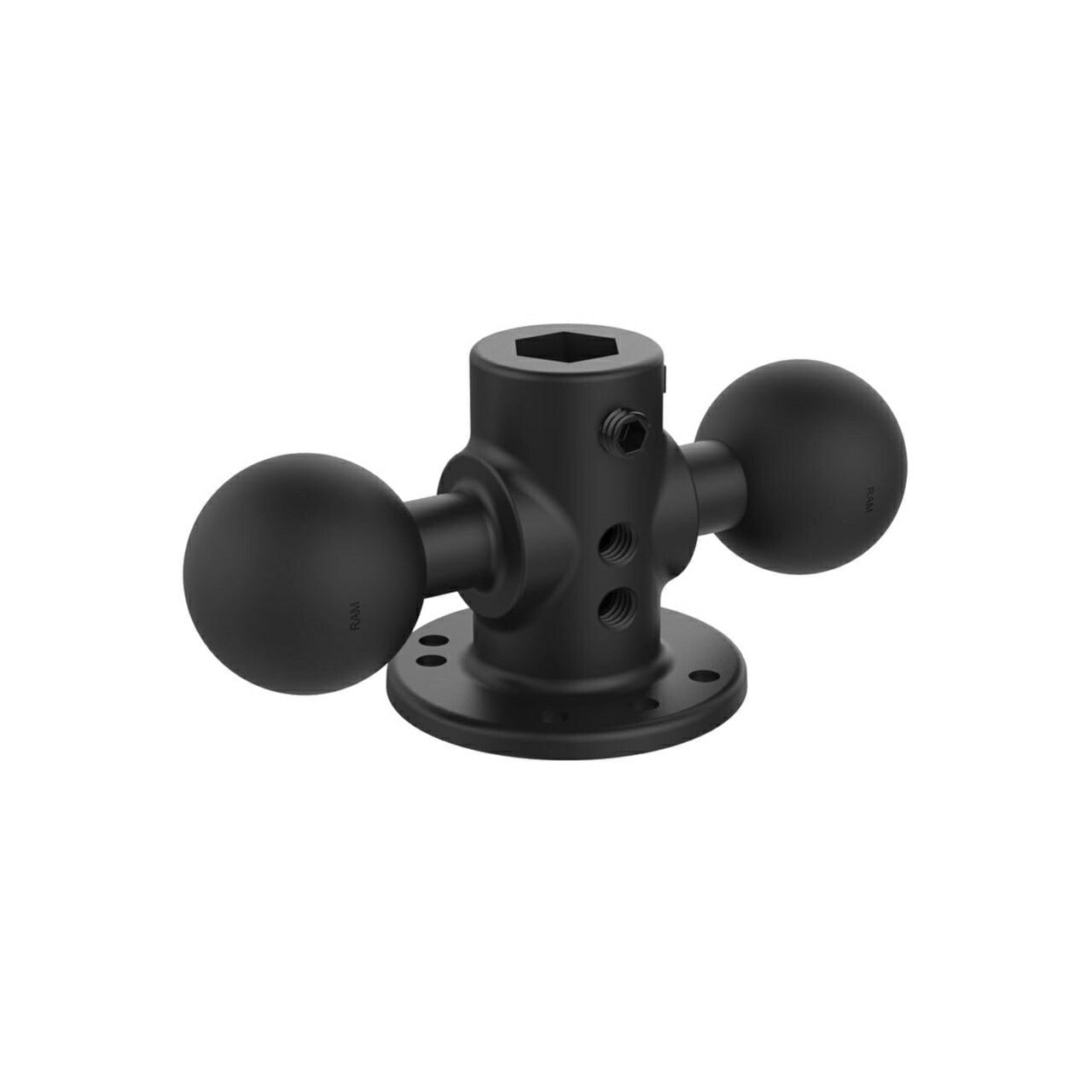

AMPS Hole Round Base (Double Ball) Black 1.5-inch Ball 1 pc

【RAM Mounts RAM-217-1U AMPS Hole Round Base (Double Ball) Black 1.5-inch Ball, Pack of 1】
■Product Description
The AMPS hole pattern, a standard for mounting GPS devices such as Garmin and TomTom, has four holes arranged approximately 30x38mm apart. RAM MOUNTS' AMPS hole base is a joint part required for attaching some products, such as tablet holders and base parts that do not include a ball. It is highly versatile and can be used not only as a joint but also as a base part by screwing it in. It features a double ball design, expanding its range of uses.
This ball joint is primarily for attaching to some mount parts that do not include a ball.
The 63.5mm diameter round plate has seven holes, with the AMPS hole pattern consisting of four holes, where the centers of the four holes are 38x30mm apart, and the two diagonal holes are 48.5mm apart. This highly versatile hole pattern is widely compatible with RAM Mount tablet holders and similar products. By attaching a ball joint, you can combine it with other RAM Mount parts of the corresponding ball size to build a mount freely wherever you need it.
It can also be used as a base part by screwing it in separately.
With two balls, the expandability is enhanced when used as a ball joint or a base part.

Specifications
Color: Black
Size: 1.5-inch ball
Weight [grams]: 222g
Material: High-strength aluminum (Marine-grade aluminum)
Specification: Double ball
Special Notes: This product is C-size (1.5-inch ball) standard. It is not compatible with other ball sizes.
Product Category: AMPS Round Base
Quantity: Pack of 1

Set Contents/Accessories
5/16inch-18x3/8inch screw set, plastic cap

Notes
*When installing, securely fasten with commercially available threadlocking adhesive or similar as needed, depending on the usage environment and mounting location.
*Always choose the ball size with the appropriate load capacity for your intended use. Also, to prevent accidental detachment, use a safety strap or similar for the attached device.
*Due to the manufacturing process, some color unevenness, peeling, or burrs may be visible in the coating on the product surface.

■Image Notes
*Images are for illustration purposes only. They may include products of different sizes or colors. Product design and specifications are subject to change without notice. Please understand.
