AMPS Hole Square Base Black 1.5-inch Ball 1 pc.

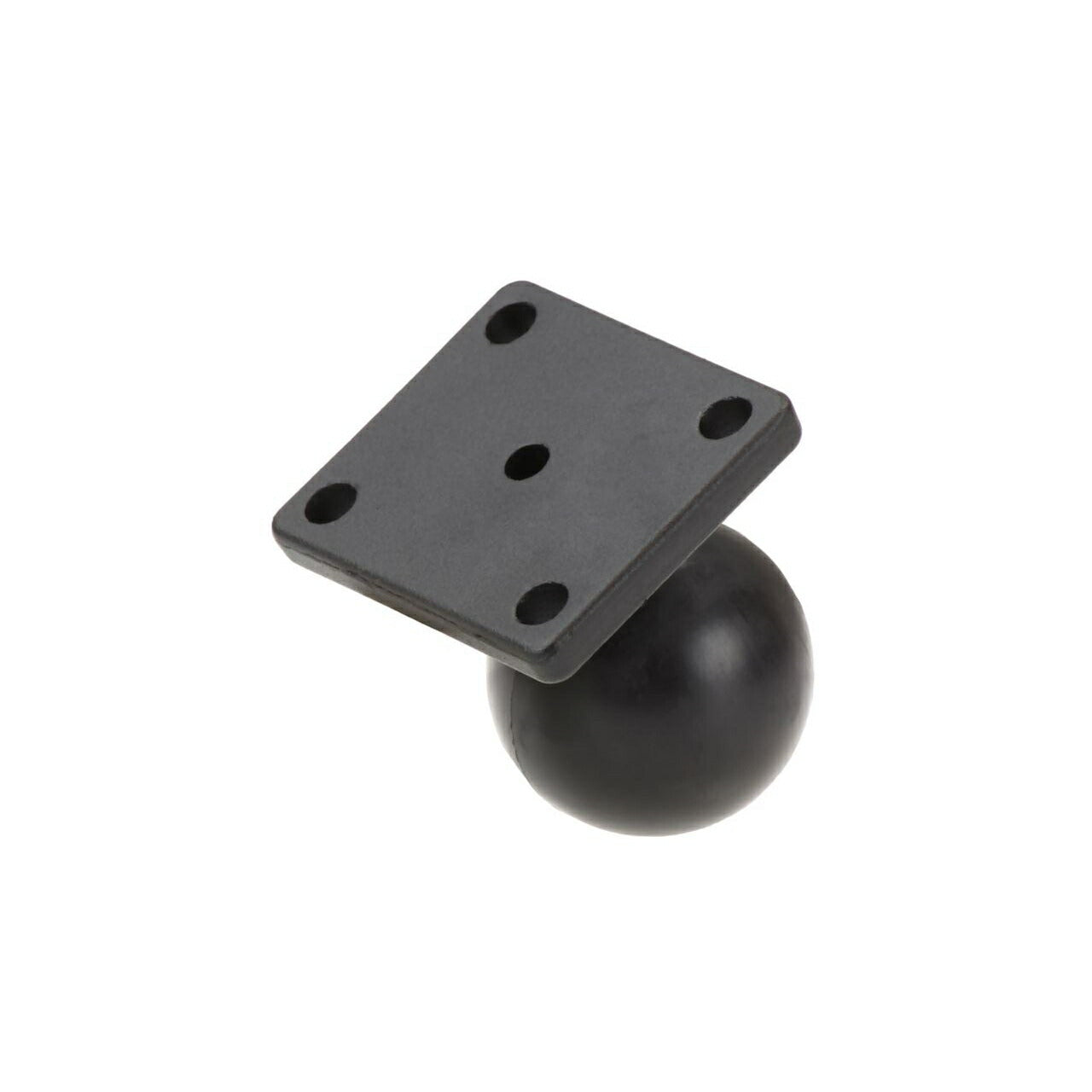

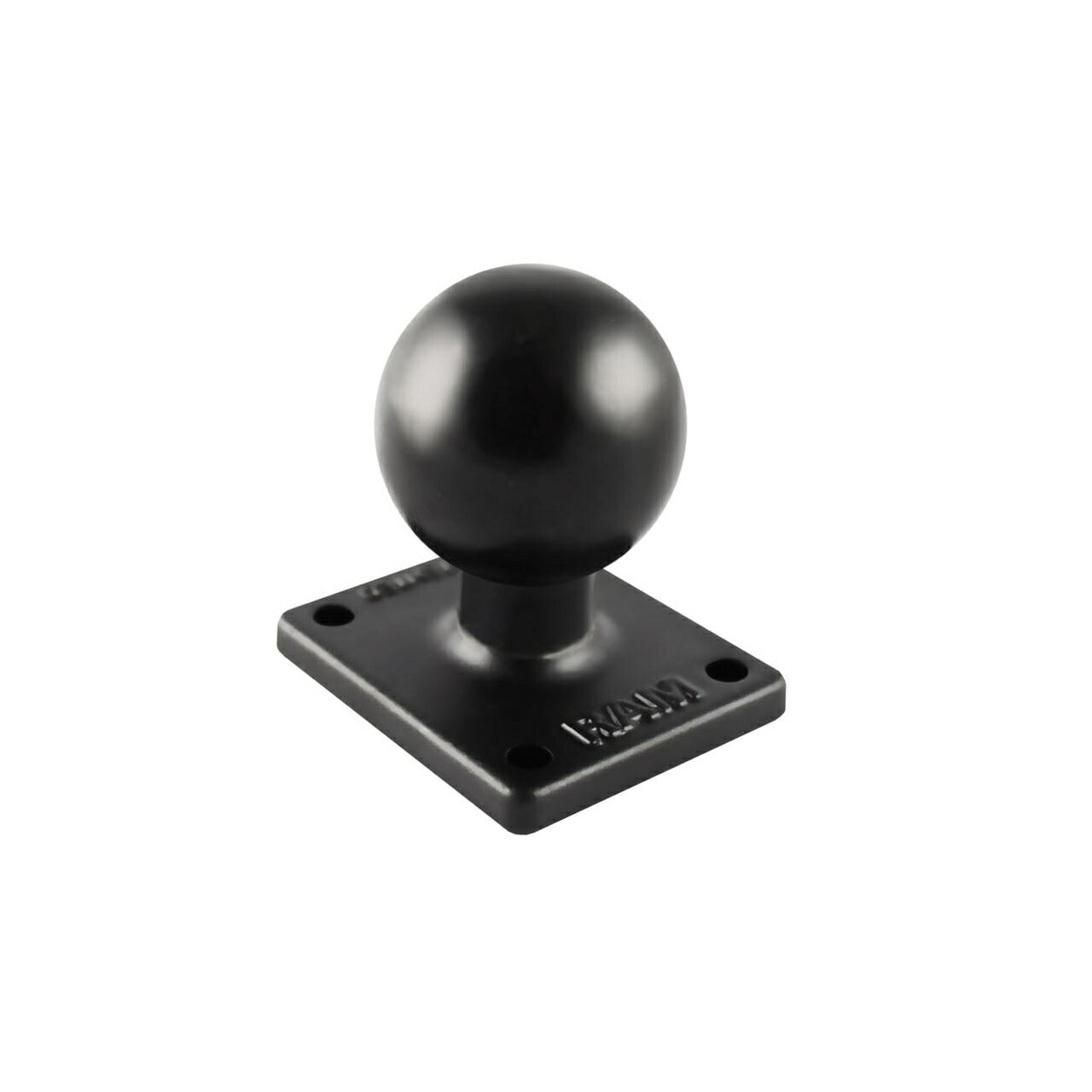

【RAM MOUNTS RAM-347U AMPS Hole Square Base, Black, 1.5-inch Ball, 1 pc.】
■Product Description
The AMPS hole pattern, a standard for mounting GPS devices such as Garmin and TomTom, features four holes spaced approximately 30x38mm apart. The RAM MOUNTS AMPS hole base is a joint part required for attaching certain products, such as tablet holders and other mounting parts, or base parts that do not include a ball component. It is highly versatile and can be used not only as a joint but also as a base part by screwing it down.
This ball joint is primarily for attaching to some mounting parts that do not include a ball component.
The 4-hole AMPS hole pattern is a versatile hole pattern with hole centers spaced 38x30mm apart and diagonal holes spaced 48.5mm apart, making it widely compatible with RAM MOUNTS tablet holders and similar products. By attaching a ball joint, you can combine it with other RAM MOUNTS parts of the corresponding ball size to build a mount freely at your desired location.
It can also be used as a base part by screwing it down separately.

Specifications
Color: Black
Size: 1.5-inch ball
Weight [grams]: 91
Material: High-strength aluminum (Marine-grade aluminum)
Specification: Universal
Special Notes: This product conforms to the C-size (1.5-inch ball) standard. It is not compatible with other ball sizes.
Related Products: Part numbers: P075-7677, P054-4747

Compatible Models: 【Garmin】 dezl OTR1000 Tread XL zumo 390LM zumo 400 zumo 450 zumo 500 zumo 550 zumo 660 zumo 665 Magellan TRX7 TRX7 CS Road Tech Zumo 590 Tech Zumo 660 Tech Zumo 665 TomTom Rider 2 Urban Rider Trail Tech Voyager Pro
Quantity: 1 pc.

Precautions
*When installing, securely fix with commercially available threadlocking adhesive or similar as needed, depending on the usage environment and installation location.
*Always select a ball size with a load capacity appropriate for your intended use. Also, to prevent accidental detachment, use a strap or similar for the attached device.
*Due to the manufacturing process, some color unevenness, peeling, or burrs may be observed on the product surface coating.

■Image Notes
*Images are for illustration purposes only. Includes products of different sizes and colors. Product design and specifications are subject to change without notice. Please understand.
