AMPS Hole Round Base Black 1-inch Ball 1 pc.

【RAM Mount RAM-B-202U AMPS Hole Round Base, Black, 1-inch Ball, 1 pc.】
■ Product Description

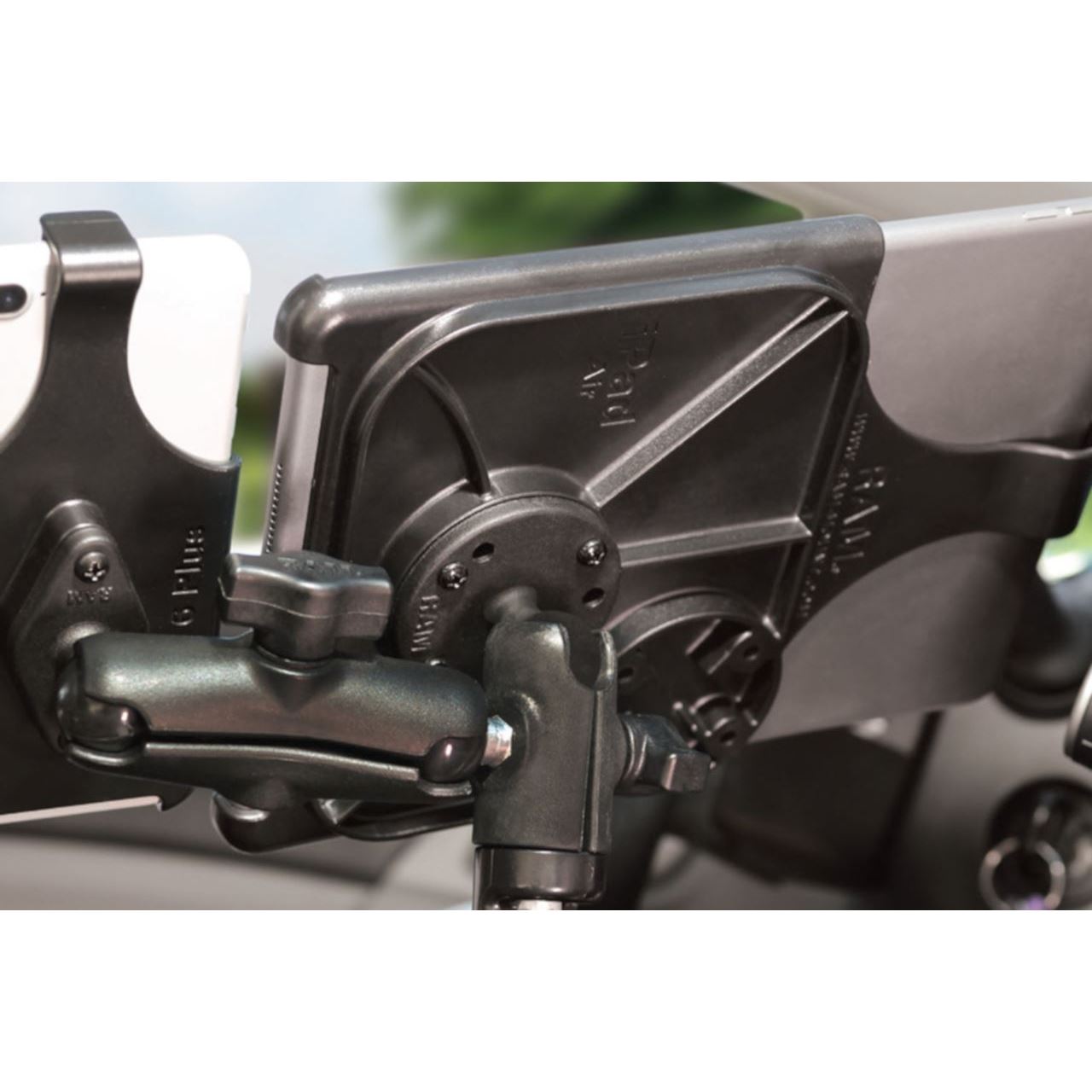

The AMPS hole pattern, a standard specification for mounting GPS devices such as Garmin and TomTom, has four holes spaced approximately 30x38mm apart. The RAM MOUNTS AMPS hole base is a joint part required for mounting some products, such as tablet holders and base parts that do not include a ball. It is highly versatile and can be used not only as a joint but also as a base part by screwing it in place.
Mainly a ball joint to be attached to some mounting parts that do not include a ball.

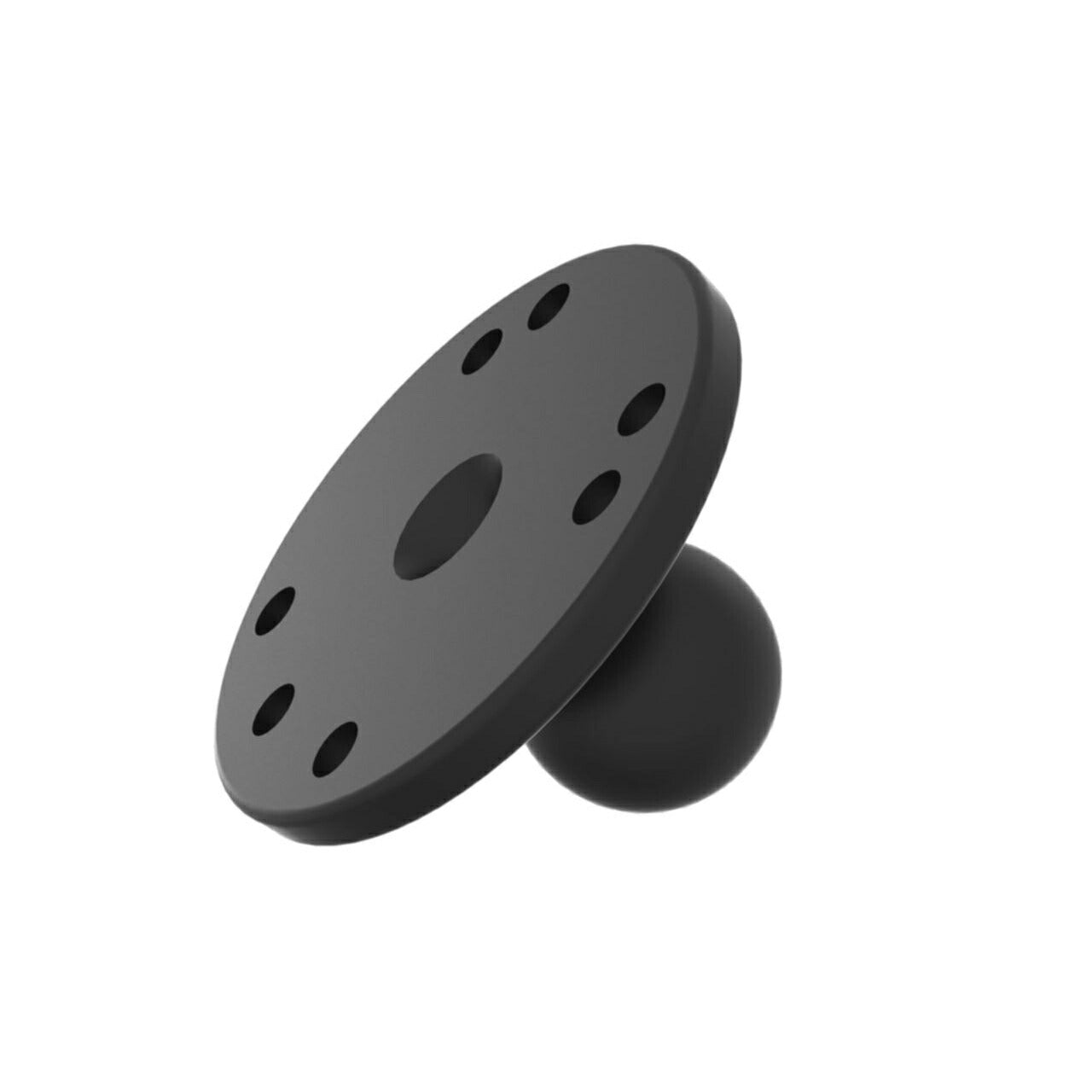

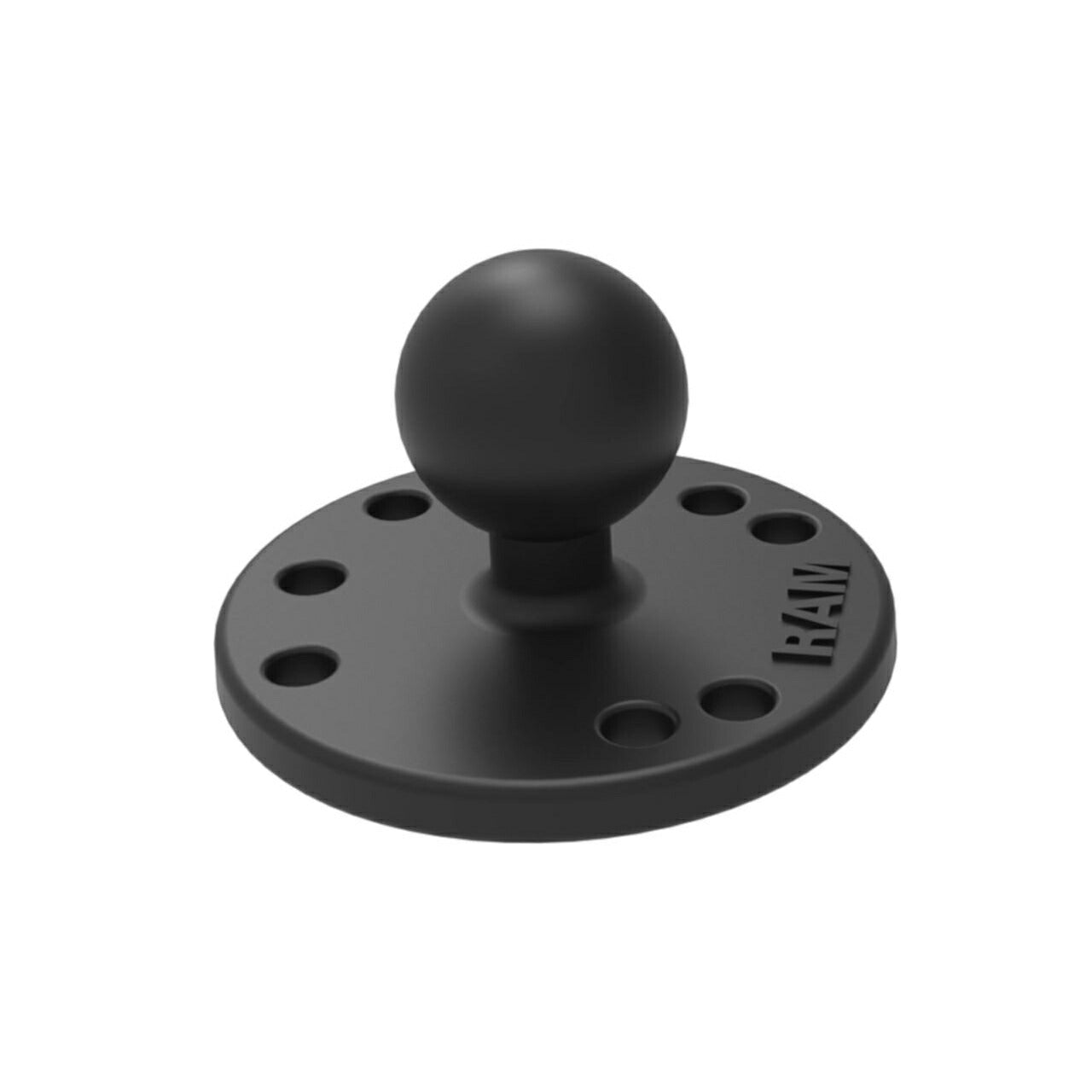

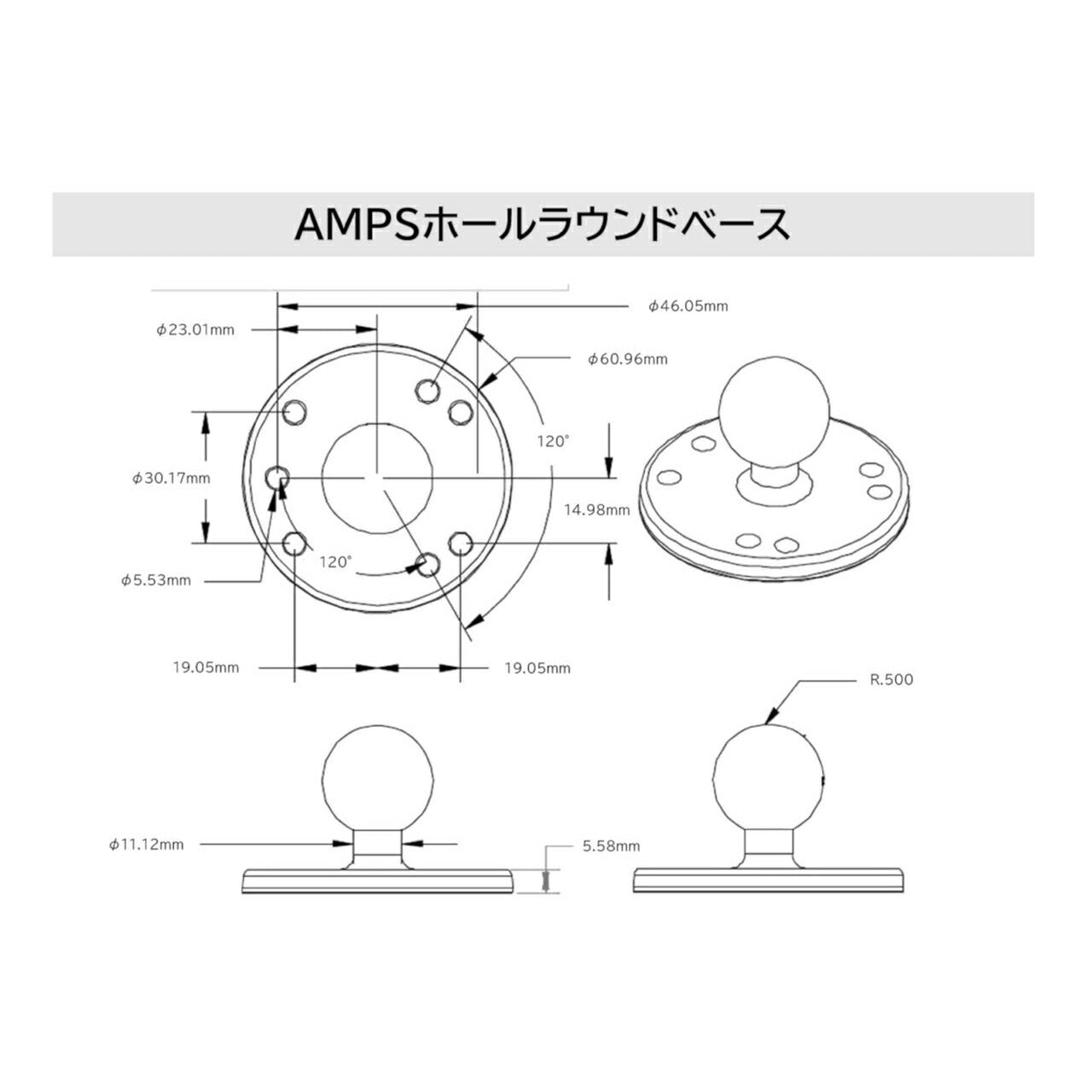

The AMPS hole pattern consists of four holes on a 63.5mm diameter round plate. The centers of the four holes are 38x30mm apart, and the two diagonal holes are 48.5mm apart, making it a versatile hole pattern widely compatible with RAM Mount tablet holders and other products. By attaching a ball joint, you can combine it with other RAM Mount parts of the corresponding ball size to freely construct a mount anywhere you want.

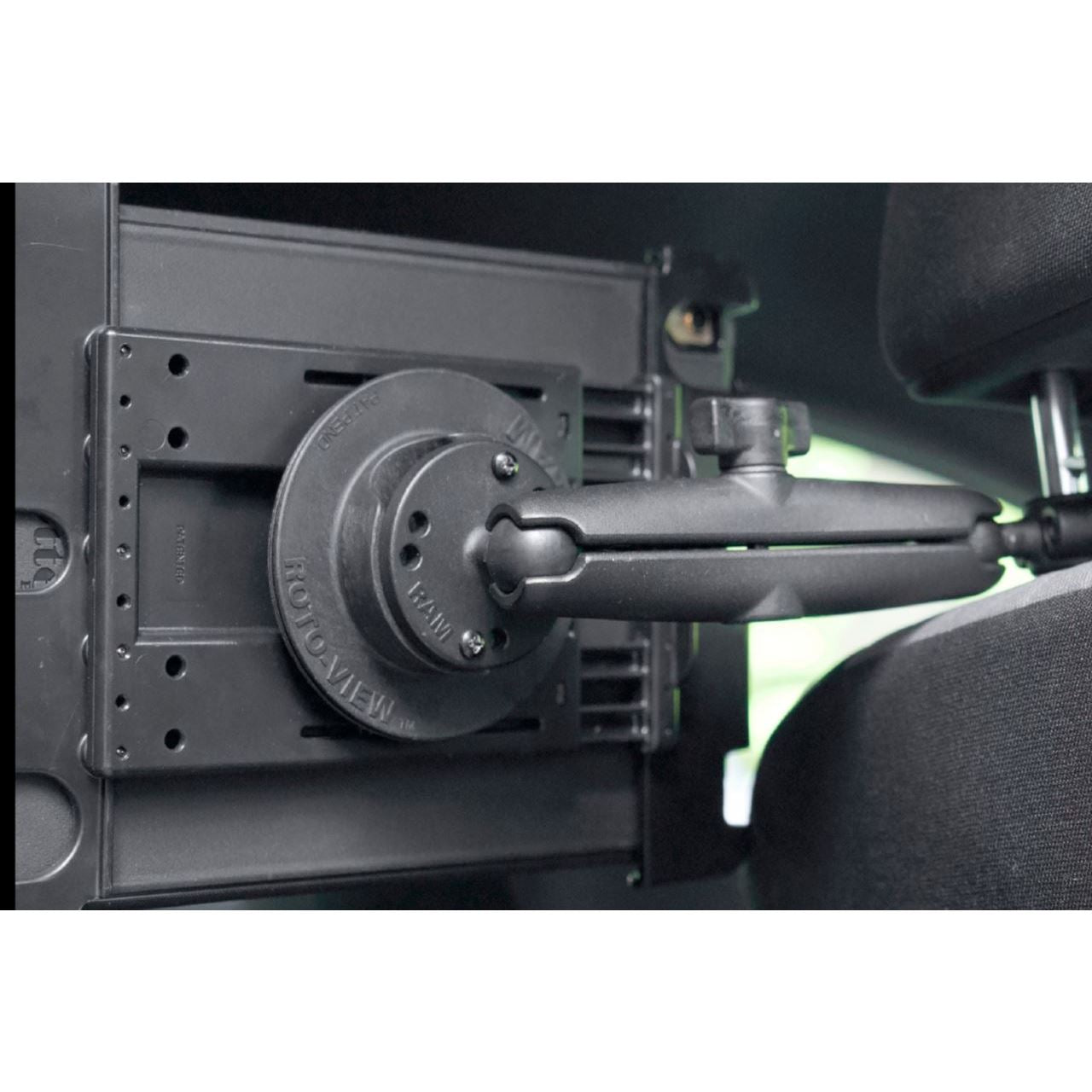

It can also be used as a base part by screwing it in separately.

Specifications
Color: Black
Size: 1-inch ball
Weight [grams]: 68g
Material: High-strength aluminum (Marine-grade aluminum)
Specifications: General purpose
Special Notes: This product is B size (1-inch ball) standard. It is not compatible with other ball sizes.
Product Classification: AMPS Round Base
Related Products: Part Numbers: P054-4747, P075-7677
Quantity: 1 pc.

Precautions
* When installing, be sure to secure it firmly using commercially available threadlocker adhesive, etc., as necessary, depending on the usage environment and installation location.
* Always choose a ball size with a load capacity that matches your intended use. Also, to prevent accidental detachment, use a strap to prevent detachment for the attached device.
* Due to the manufacturing process, some color unevenness, peeling, or burrs may be observed in the coating film on the product surface.

■ Image Notes
* Images are for illustrative purposes only. Includes products with different sizes and colors. Product design and specifications may change without notice. Please understand.
