PLOT Anti-Vibration Clamp Base, compatible with φ22.2/25.4mm, Black, 1-inch Ball, 1 piece

【RAM Mount RAM-HOL-PAV1 PLOT Anti-Vibration Clamp Base, Compatible with φ22.2/25.4mm, Black, 1-inch Ball, 1 pc】
■Product Description

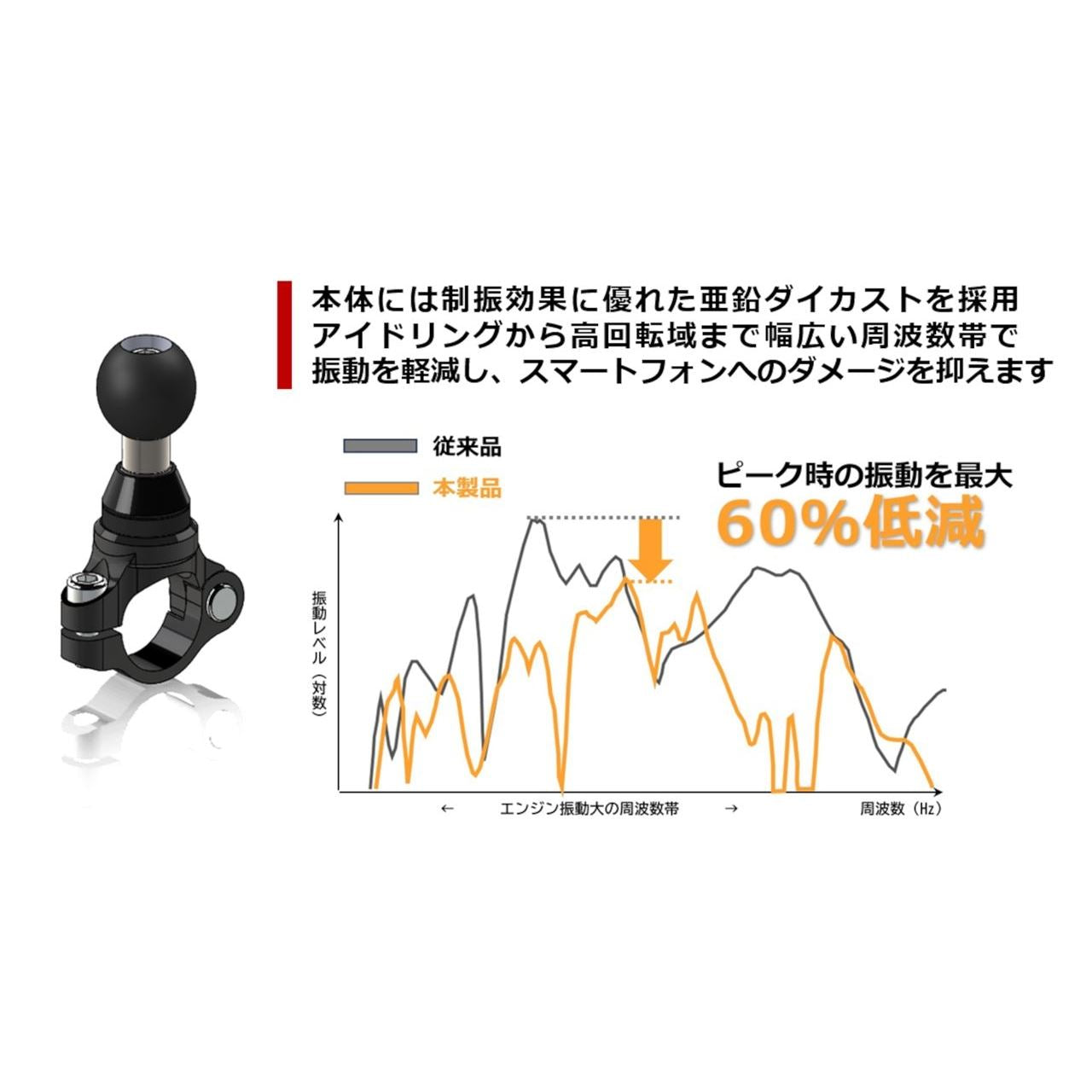

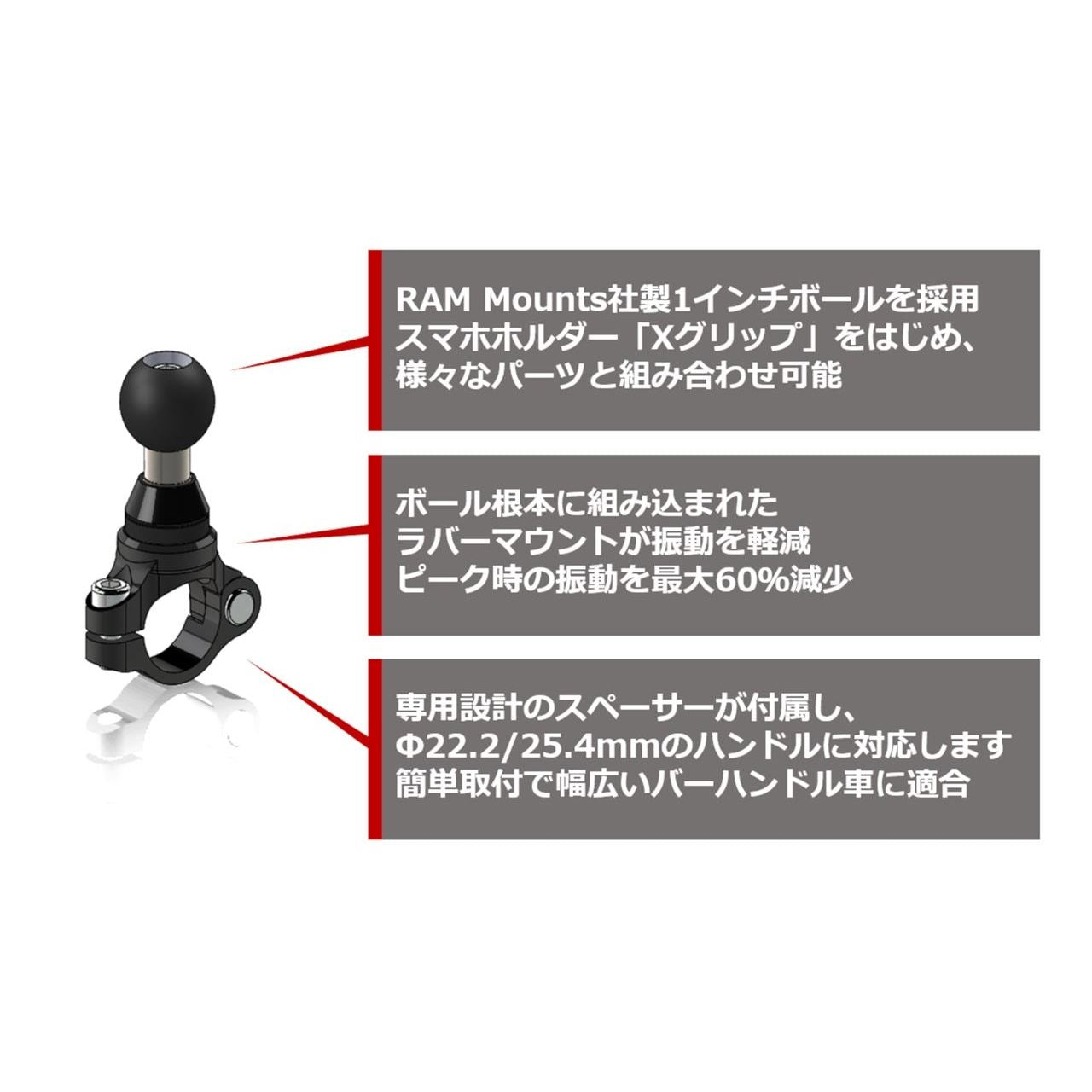

After over a year of development, this product has achieved higher anti-vibration performance than conventional RAM Mount parts. The main clamp body uses zinc die-cast, which offers excellent vibration dampening, and by incorporating anti-vibration rubber at the base of the ball, it reduces peak vibrations by up to 60%. It reduces vibrations across a wide frequency range, from idling to high RPMs, minimizing damage to smartphones.
Developed in-house, the clamp is designed not only for anti-vibration performance but also for ease of installation. The single-opening clamp can be easily attached to a wide range of handlebars, φ22.2/25.4mm. It can also flexibly accommodate the tapered section of tapered bars by using the included M4 screws.
This is an original RAM Mount part from Plot, completed after repeated comparisons, evaluations, and prototyping of various anti-vibration parts. The Plot development team, which once served as the "fifth domestic motorcycle manufacturer" developing and producing vehicles and introducing numerous original products to the world, was joined by a vibration design specialist from a major automotive manufacturer as an executive advisor.

Specifications
Color: Black
Size: 1-inch ball
●Handlebar compatibility
φ22.2/25.4mm (metric bar/inch bar)
Weight [grams]: 126g
Material [material]: Zinc alloy
Special Notes: This product conforms to B-size (1-inch ball) specifications. It is not compatible with other ball sizes.
Quantity: 1 pc

Set Contents / Accessories
Spacer set for φ22.2mm, M6 cap bolt for clamp, M4 hex socket set screw for anti-rotation

Precautions
*Do not remove or loosen the hex bolt on the ball part. This may prevent the product from performing as intended and could lead to product damage or detachment.
*Do not apply chemicals such as parts cleaner to the rubber part at the base of the ball, as this may affect the properties of the rubber and impair its intended performance.
*This product is designed for use in combination with RAM Mounts 1-inch ball parts. Combination with anti-vibration parts from other manufacturers may unexpectedly affect vibration reduction and is not recommended as it may prevent the product from performing as intended.
*There may be slight variations in the rubber coating on the ball part due to individual differences, but this does not affect functionality.
*When installing, securely fix the product using a commercially available thread-locking adhesive, etc., as necessary, depending on the usage environment and installation location.
*Always select a ball size with a load capacity appropriate for your intended use. Additionally, to prevent accidental detachment, use a safety strap for any attached devices.
*Due to the manufacturing process, some color unevenness, peeling, or burrs may be observed on the paint film on the product surface.

■Notes on Images
*Images are for illustration purposes only. They include products of different sizes and colors. Product design and specifications are subject to change without notice. Please understand.
