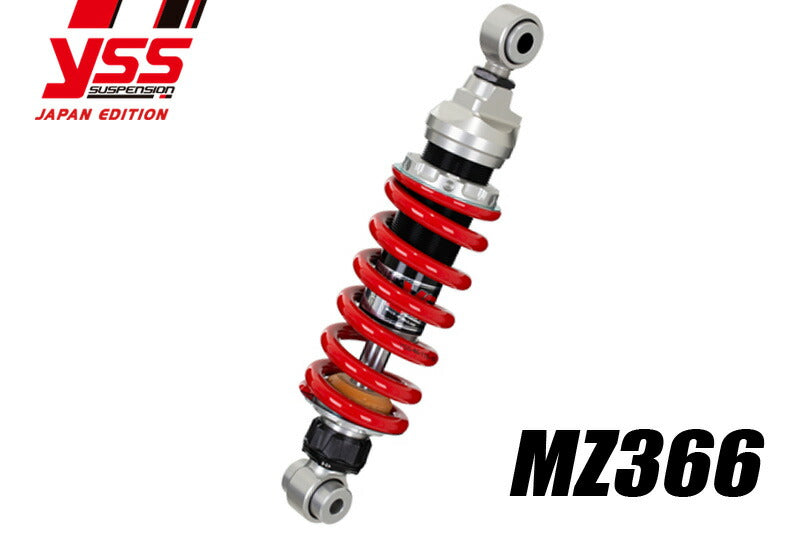

Rear Shock MZ366 NSR250R MC18

[PMC YSS Rear Shock MZ366 NSR250R MC18 117-2311001]
・This is an all-around model with a simple appearance but equipped with the necessary adjustment functions for light riding.
・It is equipped with one rebound damping adjustment, spring preload, and ride height adjustment mechanisms.
・The body is an excellent match for vehicles with compact designs and boasts rigidity that firmly supports the suspension.
Specifications:
・Type: MZ366
・Piston diameter: φ36mm
・Spindle rod: φ16mm
・Rebound damping adjustment: 60 levels
・Preload adjustment: Stepless adjustment
・Ride height adjustment range: Max +10mm
・*Ride height adjustment model from standard to tail-up
Compatible models:
・Honda: Displacement 126cc-250cc: NSR250/R/SP/SE [MC16/18/21] (87-89 (MC18))
Notes:
*Ride height adjustment is not equipped.
Image notes:
*The photo is a representative example of the model.
*The images are for illustration purposes, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
