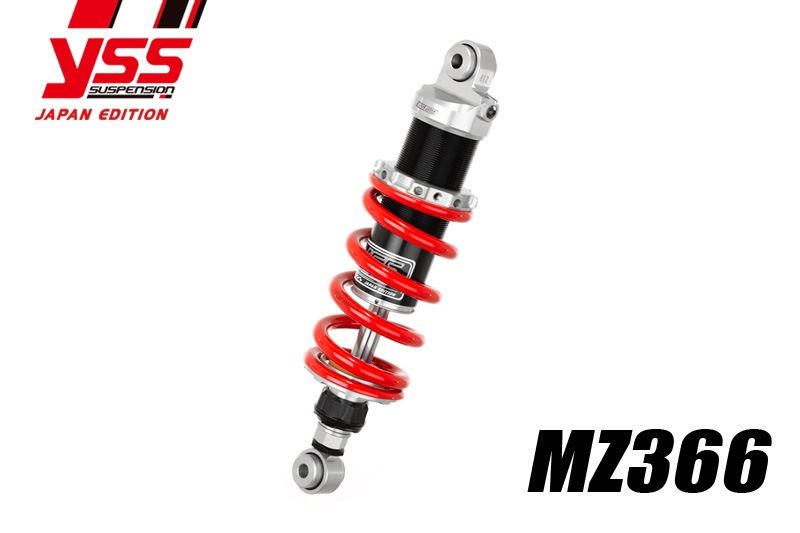

Rear Suspension CBF190X MZ366 CBF190X

[PMC 117-2311051 Rear Suspension CBF190X MZ366 Motorcycle Parts Undercarriage Suspension]
■Product Description
An all-around model with a simple appearance but equipped with the adjustment functions necessary for agile riding.
Equipped with rebound damping (1-way), spring preload, and ride height adjustment mechanisms.
The body is ideally suited for vehicles with compact designs, and it has the rigidity to firmly support the foot.

■Compatible Models
HONDA CBF190X

■Specifications
[Spring] ID46 150N/mm L150
Piston outer diameter: φ36
Shaft outer diameter: φ16
Mount: Bearing

■Precautions
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
