Rear shock MZ366 RZ250R/RR

【PMC 117-2312001 YSS Rear Shock MZ366 RZ250R/RR】
*Ride height adjustment model from standard to tail-up
・An all-round model equipped with adjustment functions necessary for light riding, despite its simple appearance.
・Equipped with rebound damping adjustment (1 system), spring preload, and ride height adjustment mechanism.
・A body that perfectly matches compact vehicles, and rigidity that firmly supports the suspension.
Specifications:
・Type: MZ366
・Piston diameter: φ36
・Spindle rod: φ16
・Rebound damping adjustment function: 60-step adjustment
・Preload adjustment function: Stepless adjustment
・Ride height adjustment function [adjustment range]: Max +10mm
・*Ride height adjustment model from standard to tail-up
Compatible models:
・Yamaha [YAMAHA]: Displacement 251cc-400cc: RZ350/R/RR (84-)
・Yamaha [YAMAHA]: Displacement 126cc-250cc: RZ250/R/RR
Notes on images:

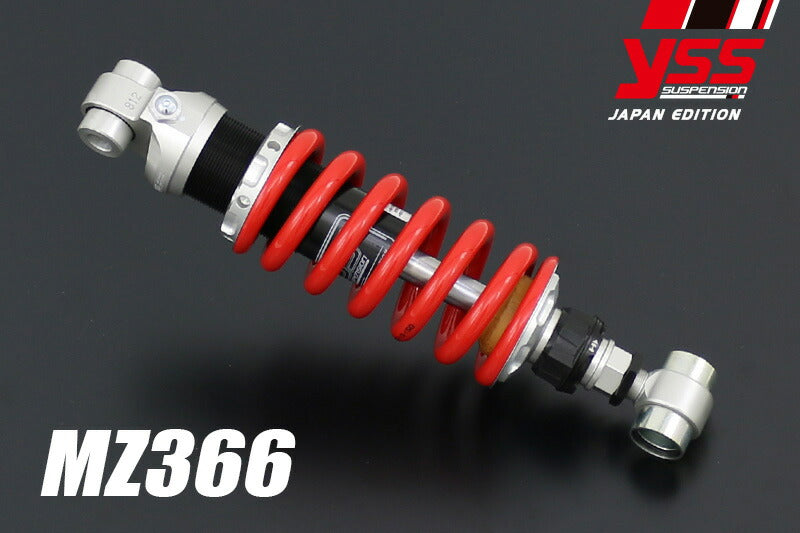

*The photo is a representative example of the model.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
