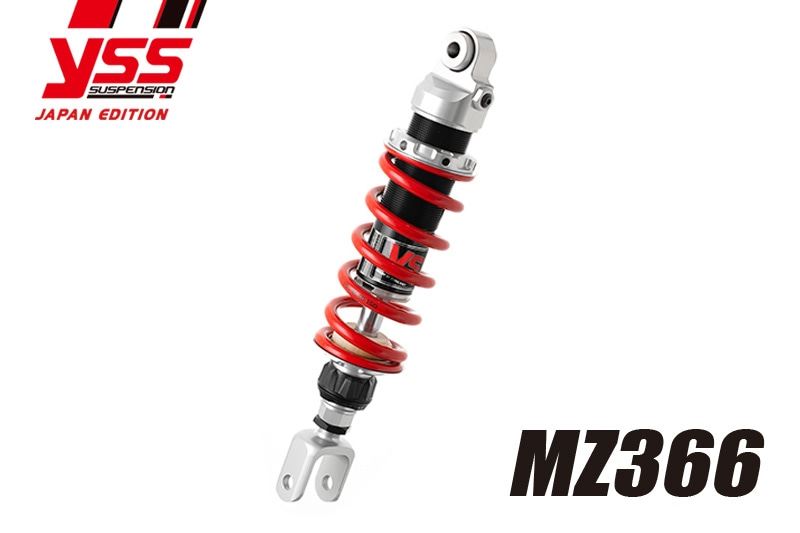

Rear Suspension TZR250 (1KT) MZ366

【PMC 117-2312036 Rear Suspension TZR250 (1KT) MZ366 Motorcycle Parts Undercarriage Suspension】
■Product Description
An all-around model with a simple appearance yet equipped with the necessary adjustment functions for agile riding.
Equipped with rebound damping (single circuit), spring preload, and ride height adjustment mechanisms.
The body is ideally suited for compact vehicle designs, and it boasts rigidity that firmly supports the bike's stance.

■Compatible Models
YAMAHA TZR250 (1KT) '85-'87

■Specifications
Spring: ID46 115N/mm L130
Shock overall length: 315 (310-320)mm
LIFT UP 25mm
Piston outer diameter: φ36
Shaft outer diameter: φ16
Mount: Bearing

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please understand.
