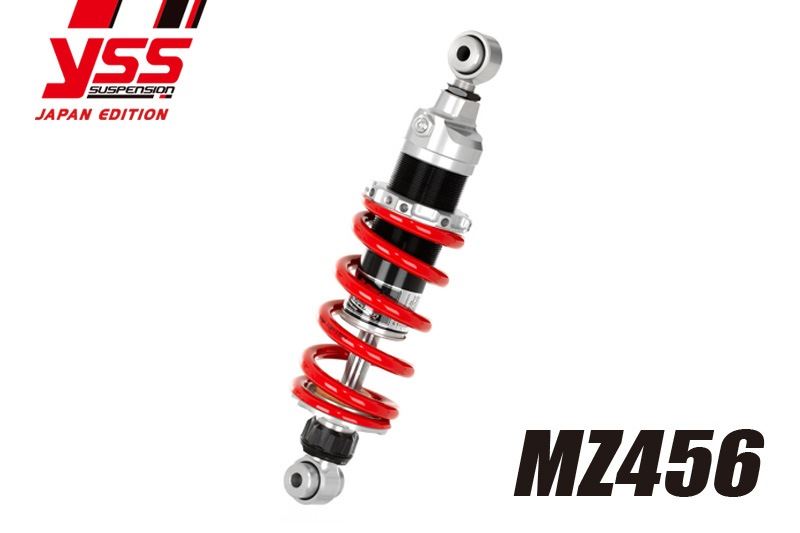

Rear Suspension CBR400R/CBR500R MZ456

[PMC 117-2511122 Rear Suspension CBR400R/CBR500R MZ456 Motorcycle Parts Undercarriage Suspension]
■ Product Description
An all-round model with a simple appearance yet equipped with the necessary adjustment functions for agile riding.
Equipped with 1-way rebound damping, threaded spring preload, and ride height adjustment mechanism.
Designed with racing use in mind, it is a large-capacity, high-rigidity big body that overcomes even unrealistically harsh conditions.

■ Compatible models
HONDA CBR400R '13-'18 / CBR500R '13-'18

■ Specifications
Spring: ID56 100N/mm L150
Shock total length: 310 (305-315)
Piston outer diameter: φ45
Shaft outer diameter: φ16

■ Notes
* The image is for illustration purposes only. It includes products with different sizes and colors.
* Product design and specifications are subject to change without notice. Please be aware.
