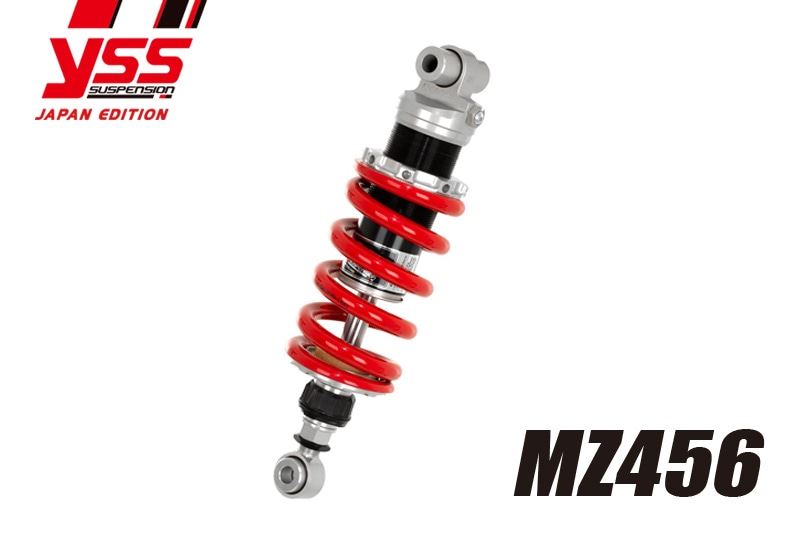

Rear Suspension TDM 850 MZ456

【PMC 117-2512320 Rear Suspension TDM 850 MZ456 Motorcycle Parts Chassis Suspension】
■Product Description
An all-around model with a simple appearance yet equipped with the necessary adjustment functions for agile riding.
It features single-system rebound damping, spring preload, and ride height adjustment mechanisms.
Designed with racing use in mind, it is a large-capacity, high-rigidity big body that overcomes even extraordinarily harsh conditions.

■Compatible Models
YAMAHA TDM 850 '91-'96

■Specifications
Spring: ID56 200N/mm L150
Shock overall length: 300 (295-305)
Piston outer diameter: φ45
Shaft outer diameter: φ16
Mount: Bearing

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please be aware of this.
