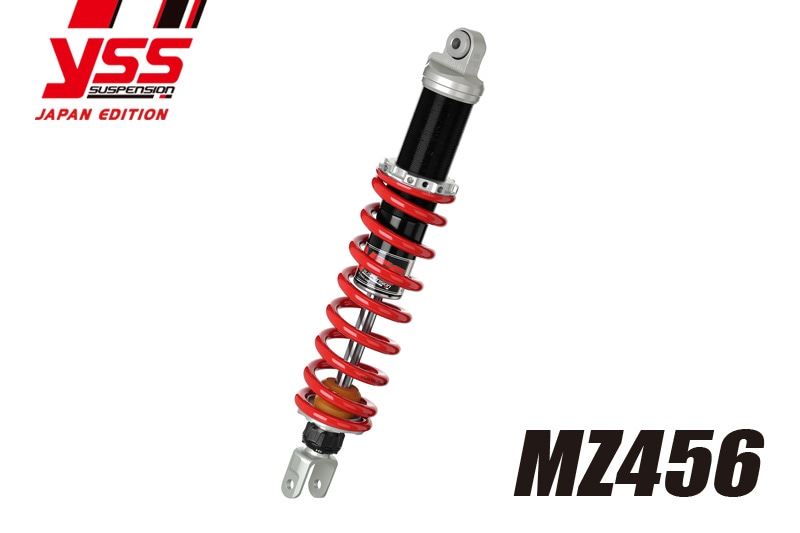

Rear Suspension DR350/DR350N/DR350S MZ456 DR350

【PMC 117-2513109 Rear Suspension DR350/DR350N/DR350S MZ456 Motorcycle Parts Chassis Suspension】
■Product Description
An all-around model with a simple appearance yet equipped with the adjustment functions necessary for light riding.
Equipped with 1-way rebound damping force and screw-type spring preload adjustment mechanisms.
Designed with racing use in mind, it features a large-capacity, high-rigidity big body that overcomes even extreme conditions that are out of this world.

■Compatible Models
SUZUKI DR350 '90-'95 / DR350N '90-'99 / DR350S '90-'94

■Specifications
Spring: ID56 65N/mm L245
Shock overall length: 440
Piston outer diameter: φ45mm
Shaft outer diameter: φ16mm

■Other Notes
*No ride height adjustment function

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please understand.
